3BSE003816R1 ABB SC520 3BSE003816R1

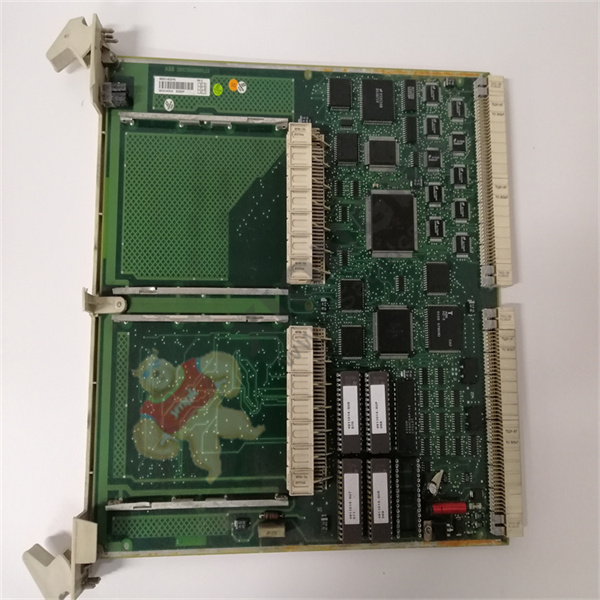

Product ID:3BSE003816R1 ABB Model Name :SC520 Description :SC520 submodule support, including local CPU Description :SC520 submodule support, including MB300, MB300E local CPU support, Also see coated Marine taxon SC520M 3BSE016237R1 submodule carrier Attention! This part is exempt from the scope set out in Article 2(4)(c), (e), (f) and (j) of 2011/65/EU (RoHS) (ref. : 3BSE 088609 — Declaration of Compliance with EU – ABB Advant Master Process Control Systems) Category Product Control Systems Product Control and Communication AC 400 AC 400 – Communication module SC520 submodule carrier SC520 submodule carrier Product control system Advant OCS with master Software controller Advant Controller 450 Advant Controller version 450 Communication module parts and Service control system with master Software Controller Advant Controller 450 Advant controller version 450 2.3 Communication module parts and service control system Advant with master software controller OCS Advant Controller 450 RMC Advant Controller 450 RMC 2. X Communication module Additional information Medium Description :SC520 submodule carrier, Includes Local CPU Product Type: Communication Module Ordering HS Code :853890 – Parts only or primarily applicable to equipment with items 85.35, 85.36 or 85.37. – Other Customs Tariff No. :85389091 Dimension Product net depth/length :291 mm Product net height :300 mm Product Net width :30 mm Product net weight :0.742 kg Environmental RoHS Status: Non-compliant with RoHS WEEE Category :5 Small device (external size not more than 50 cm) Number of batteries :0

Advant MOD 300 Distributed Control System (DCS)

ABB provides support and upgrades for a wide range of Advant MOD300 distributed control systems, including Advant controllers 410, 460 and S100 I/O in high-capacity redundant configurations.

The Advant MOD300 system was introduced in 1984 and features integrated control languages CCF and TCL, Redundant Communication Network (DCN), redundant controller models A and B, history and reporting, bulk data I/O, and Bus operator console. This product has entered the phase of life cycle obsolescence since 2010.



In 1988, the MOD 300 control system added SC controllers, Taylor ladder logic (TLL), and TRIO I/O.



In 1992, MOD300 systems began to enter the Advant platform, along with the introduction of redundancy schemes, high-capacity controllers AC460, AC410, and S100 I/O rack-mount, and UniX-based operator and engineering stations.



In 1996, modular flexible remote S800 I/O was added. In addition, the remote EX S800 I/O was introduced in the mid to late 1990s to transmit in hazardous areas.



In 2004, with the introduction of the 800xA system, MOD300 began the next step in its evolution, offering the 800xA system for Advant MoDs.



ABB’s control systems are designed to provide continuous evolution, and ABB is committed to continuously protecting your investment through enhanced functionality.
