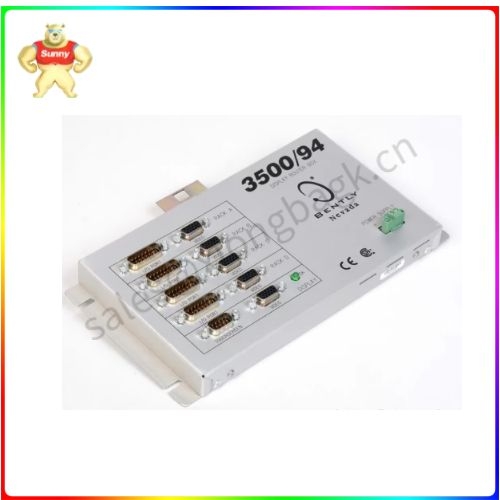

Each 3500 rack supports up to two monitors, each of which requires a free slot to insert its corresponding DIM. The cable connection between the DIM and the display, when the display is not front-mounted, can be done from the front of the 3500 frame or from the I/O module on the back of the frame.

For applications that require cables longer than 100 feet, use an external power supply and cable adapter.

Applications that use backlit display units require the use of an external power source. There are two external power supplies: one for the 115 Vac connection and one for the 230 Vac connection. Installing an external power supply is easier with an external power supply/terminal board installation kit.

The independent mounting housing accommodates an external power supply/terminal board mounting kit. The kit simplifies the process of installing an external power supply in a separate mounting case or in a user-supplied case.

Bentley Bently Nevada’s focus on inspection and control technology covers a wide range of industries and applications, including nondestructive testing (NDT), sensing, asset condition monitoring, control and instrumentation, and radiation measurement. We are constantly building best practices and exploring future solutions, all in an effort to ensure that our customers enjoy quality, safety, service and productivity. Bentley Bently Nevada sensors are typically installed inside or on the surface of the machine to measure vibration, displacement, rotational speed, pressure, torque, and energy. Bentley Nevada offers a variety of sensors that meet the requirements of industrial environments. Some sensors can be installed in hazardous areas with intrinsic safety grids, electromagnetic insulation and other methods.
