TRICONEX Main Processor Module 3006

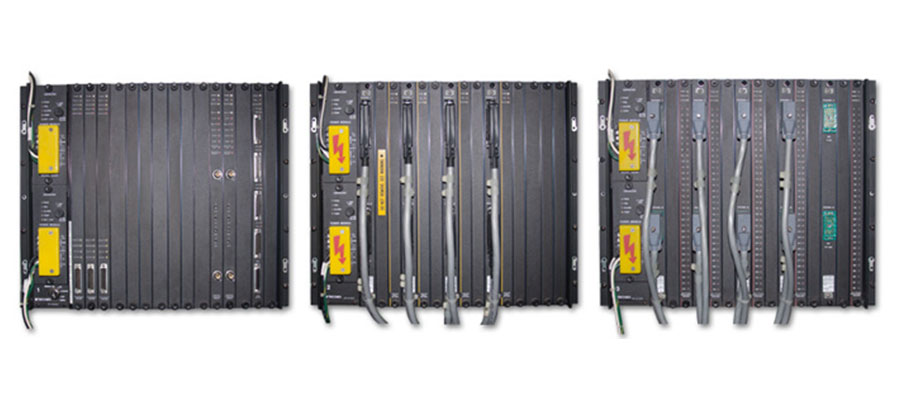

Each Tricon chassis is equipped with two power supply modules — either fully capable of operating in
Run Tricon at full load and rated temperature. Each power module can be replaced online. The Psus located on the left side of the case convert the line power supply to DC power for all Tricon modules. The strips for system grounding, power input, and hard-wired alarms are located in the lower left corner of the backplane. The input power of each supply should be at least 240 watts.

characteristic
Communication and integration

On-line module replacement to ensure continuous operation and factory availability
Integrated with EcoStruxure Foxboro DCS and all major distributed control systems (DCS)
Comprehensive I/O module family
Up to 254 point-to-point communication nodes
Achilles Level 1 Network security authentication
maintenance

Built-in diagnostics and redundancy management – transparent to users
Easy state diagnosis and fault analysis
Online modification and change, online module replacement and hot spare slots, to achieve continuous production without shutdown
A complete suite of software tools for each phase of the security lifecycle (TriStation™ suite)
application
Security and critical control applications

– Certified by TUV in accordance with the SIL 3 application of international standard IEC61508:2010
Emergency shutdown (ESD)
Fire Gas (F&G)
Burner management system (BMS)
High integrity Pressure Protection System (HIPPS)
Turbo-mechanical Control and Protection (TMC)
– Suitable for centralized, distributed, and remote I/O applications
– Suitable for harsh environment

industry

Oil refining and petrochemical
Upstream and midstream oil and gas
Chemicals and specialty chemicals
Power generation
medicine
