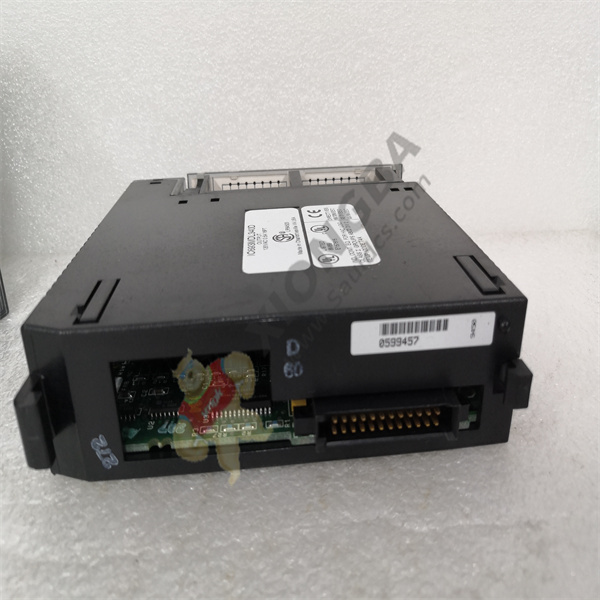

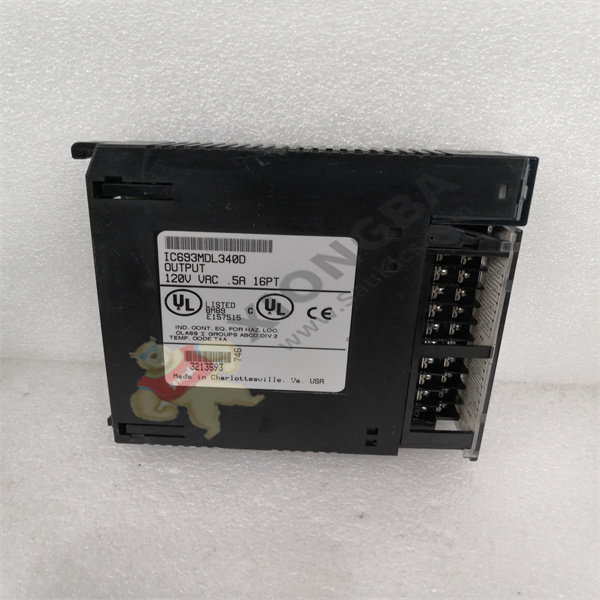

IC693MDL340 GE controller



Part number: IC693MDL340

Manufacturer: General Electric

Series: 90-30

Function: Programmable logic controller component

IC693MDL340 in stock, same day delivery.

IC693MDL340 is unused and reconstructed.

Each unit is used in conjunction with an independent AC power supply. Alternatively, you can use the same source to power two common places. Each group has a 3 amp fuse for protection and each output has an RC buffer to protect them from transient electrical noise coming from the power line. The module also features 85 to TIC693MDL340 with 120 volt, 0.5 amp AC output modules manufactured from 90-30 series. It provides 16 output points in two separate groups of eight points each. Each group has a separate common ground associated with it (IC693MDL340 does not integrate these two common grounds internally), allowing



132 volts AC, 50/60 Hz output voltage range and 0.5 amperes maximum output current per point. The maximum current of each group is 3 amps.

The IC693MDL340 provides high surge current, making its output suitable for controlling a variety of loads, including inductive and incandescent load. The user must provide AC power to operate the load connected to the output. The module can only work under AC power supply. The IC693MDL340 has LED light on the top, which is used to indicate each

The on/off state of a dot. In addition, it has two horizontal lines with eight green leds on each line and a final LED in the middle of the two lines. The top eight leds, labeled A1 through 8, indicate the output status. The red “F” LED lights up, indicating a blown fuse. Unless a load is connected to a blown fuse, no

The LED will not work. The IC693MDL340 has an insert that separates the inner and outer surfaces of the hinged door. Once this door is closed, circuit wiring information will be displayed on the inner surface of the module and circuit identification information can be found on the outer surface. The outer left edge of the plug-in is red, indicating the high voltage module.

The IC693MDL340 module can be installed in any I/O slot on a 5 or 10 slot baseboard in a 90-30 series PLC system. The maximum response time of the IC693MDL340 is 1 ms when the IC693MDL340 is on, and the maximum response time of the IC693MDL340 is periodic when the IC693MDL340 is off. The power consumption of the five voltage buses on the backplane is 315 mA(when all outputs are on)

When)

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
