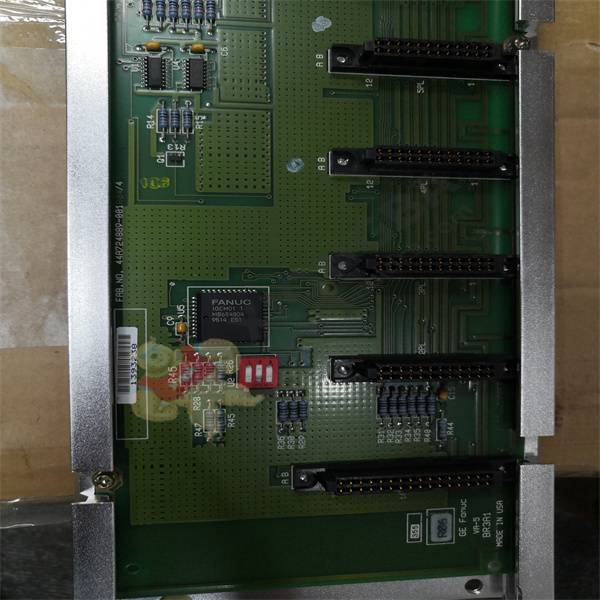

IC693CHS392 GE controller

Part number: IC693CHS392

Manufacturer: General Electric

Series: 90-30

Features: 10-slot expansion baseboard

IC693CHS392 is in stock and shipped the same day.

IC693CHS392 is unused and reconstructed.

The IC693CHS392 is an extended substrate compatible with the 90-30 series platforms. The hardware allows the interconnect of additional substrates carrying 90-30 series modules to maximize the capabilities of the central controller and conform to the control requirements of the system, especially to accommodate a greater number of I/O points and achieve special functions. IC693CHS392 to

Formerly manufactured by GE Fanuc Automation, now acquired by Emerson Automation. The substrate offers ten (10) mounting slots for up to ten 90-30 series standard I/O modules and optional modules. The substrate is compatible with 331, 340, and 341 CPUs, where a maximum of four (4) substrates and CPUs can be interconnected

Up to seven (7) substrates can be installed for 350 and higher versions. When interconnecting the substrate to the CPU substrate, the maximum cable length must not exceed 50 ft or 15 m. Otherwise, the extended substrate will not be recognized by the CPU or the entire configuration will be invalid. In addition, smart modules such as PCM, ADC, BEM330 and CMM modules are available with extensions

Installation of substrate is not compatible. These modules are mounted on the CPU substrate. In addition to the I/O slot, the substrate also provides a power supply slot in which the power supply and distribution modules are installed. Expansion ports are also provided to allow interconnection with other expansion substrates. The substrate is designed for panel mounting only, through

Secure through the mounting plates located on the far left and far right of the hard wiring. Proper grounding must also be observed to protect the modules and minimize electrical noise.

The IC693CHS392 substrate is an extended substrate of GE Fanuc. It is compatible with 90-30 GE series PLC systems. It is a PLC case, but can also be used as an extension for other I/ OS in different locations. The substrate is used with a PLC system or by connecting it to a personal computer using a PCI card.

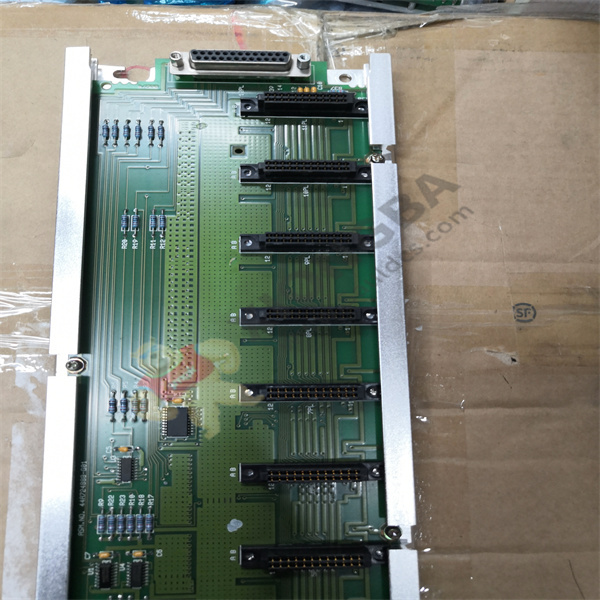

It can connect up to seven cpus at a time, depending on the CPU model. The substrate is rated at 5 volts DC. It has a rated current of 150 mA. The substrate is 443 mm long, 142 mm wide and 130 mm high. The right side of the IC693CHS392 substrate is equipped with a 25-pin female D-type I/O expansion connector available with other

The substrate is effectively connected.

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
