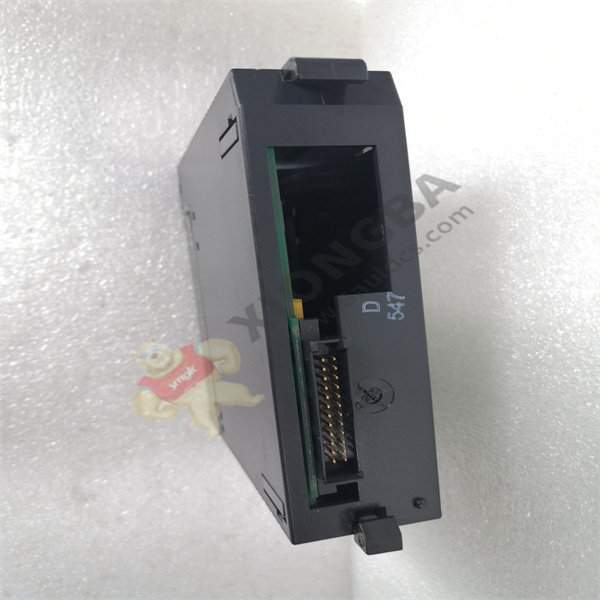

IC693MDR390 GE controller





Part number: IC693MDR390

Manufacturer: General Electric

Series: 90-30

Function: Programmable logic controller

IC693MDR390 in stock, same day delivery.

IC693MDR390 is unused and reconstructed.

The product description



IC693MDR390 is a 90-30 series programmable Logic controller (PLC) platform module that can be used as a combination of discrete input and output modules. The module features eight (8) discrete input channels designed to accept input signal voltages ranging from -30 to +30 VDC with a rated or nominal voltage of 24 VDC,



The typical input current at rated voltage is 7.5 mA. It also has eight (8) normally open (N.O.) Discrete output channels in the form of relay contacts are designed for voltage ranges of 5 to 30 VDC, 5 to 250 VAC, and 50/60 Hz frequencies. Each output contact provides a maximum load current of 2 amps and a maximum current of 4 amps



Flow. The IC693MDR390 is a single-slot module that fits into any I/O slot of the 90-30 series substrate. It can be used with any central processing unit (CPU) module, such as embedded and modular cpus. It can be installed on the local I/O floor where the CPU is installed, or on the extended or remote I/O floor.



The IC693MDR390 input channel has an on-state voltage of 15-32 VDC and an on-state current of 4 mA, while the off-state voltage ranges from 0-5 VDC and an off-state current of 1.5 mA. The typical response time of the input channel is 7 ms for on and off signal conversion. In contrast, for both signal conversions, the output channel is typically loud



The treatment time was 15 ms. The backplane current consumption of this module is 80 mA when all IO are active and 70 mA when all outputs are energized.



GE Fanuc IC693MDR390 I/O module is a solid state I/O module specially designed for GE Fanuc series 90-30 PLC product line. The input/output module has 8 DC inputs and 8 normally open relay output circuits. It is a simple to use 8-way trigger device that accepts data from manual switches, buttons,



Discrete input of limit switch and photocell. Each input corresponds to a relay output circuit that can be used to control user-defined loads such as motor starters, alarm indicators, and solenoid valves. GE Fanuc IC693MDR390 8 DC input and 8 relay output modules must be powered by 24 volt DC rated power supply,



It can operate normally in the range of -30 to +32 volts DC rated supply voltage

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
