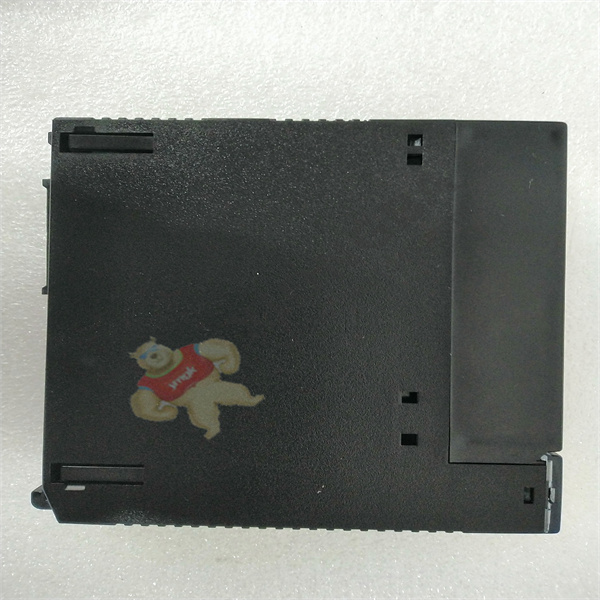

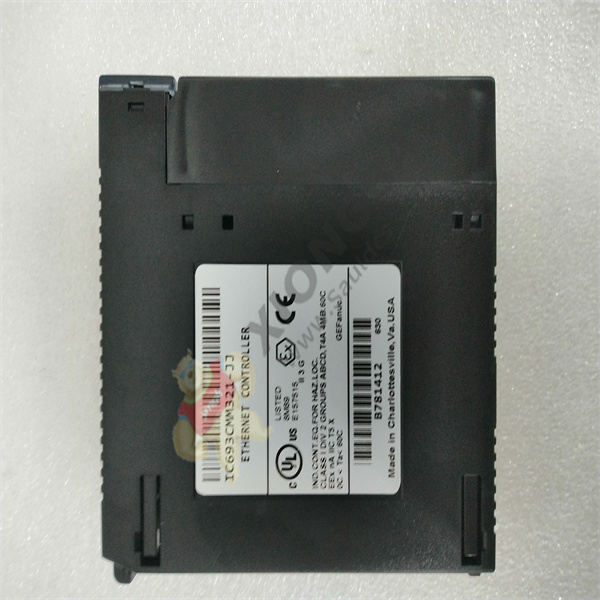

IC693CMM321 GE controller



Part number: IC693CMM321

Manufacturer: General Electric

Series: 90-30

Function: Ethernet interface module

IC693CMM321 in stock, same day delivery.

IC693CMM321 is unused and reconstructed.



The product description



IC693CMM321 is an Ethernet interface module that is part of the 90-30 series programmable Logic Controller (PLC) platform. Manufactured by GE Fanuc Automation, the module is designed to connect 90-30 series substrates directly to existing Ethernet for distributed I/O or to allow CPU and communication adaptation



The device communicates with remote stations, human-machine interface (HMI), supervisory control and data acquisition (SCADA), and distributed control systems (DCS).



IC693CMM321 has various communication functions to perform different tasks. The module has one (1) RS-232 RJ-11 serial port as the station manager port, one (1) RS-485 15-pin D-type serial port as the software loader port, and one (1) AAUI port as the network port for connecting the module to the Ethernet



Net. The module is also equipped with LED indicators, allowing users to monitor the operation of each port and an overview of module status. These indicators are OK, LAN, SER, and STAT. LED indicators describe the status of the interface, the existing traffic on the transceiver port and the downloader port, and the presence of abnormal events, respectively.



The IC693CMM321 is ideal for use with S CPU version 6.50 or higher for full functionality. It is still available for CPU versions 5.03 to 6.04, however, Ethernet operation is limited to one (1) SRTP server connection. For configuration, various programming software, such as version 6.01 or later, is available



Logicmaster 90-30, Control 2.01 or later, or VersaPro 1.0 or later. All of these software applications are installed on the computer.



GE Fanuc Series 90-30 IC693CMM321 Ethernet interface TCP/IP module can diagnose and maintain PLC systems, start data transfer from PLC to other devices, communicate with multiple devices simultaneously, and support up to 16 server connections. One or both of these Ethernet interfaces can be TCP/IP modules



To be installed simultaneously on any type of GE Series 90-30 substrate, but these modules are not compatible with GE series 90-30/20/Micro product line handheld programmers. The IC693CMM321 Ethernet interface module provides two ports and four LED indicators. Ports are station manager ports and firmware upgrade ports, indicators



Is normal indicator, LAN indicator, SER indicator and status indicator.

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
