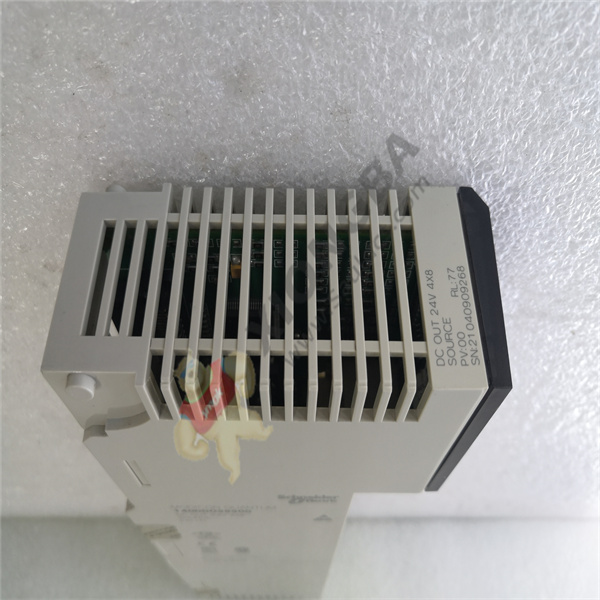

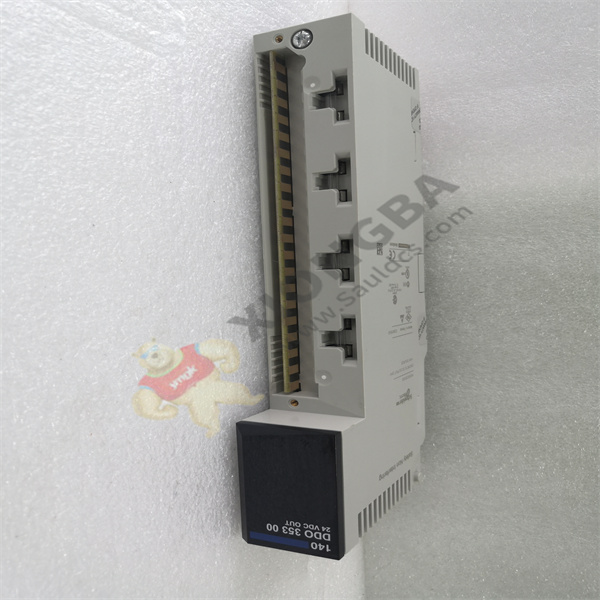

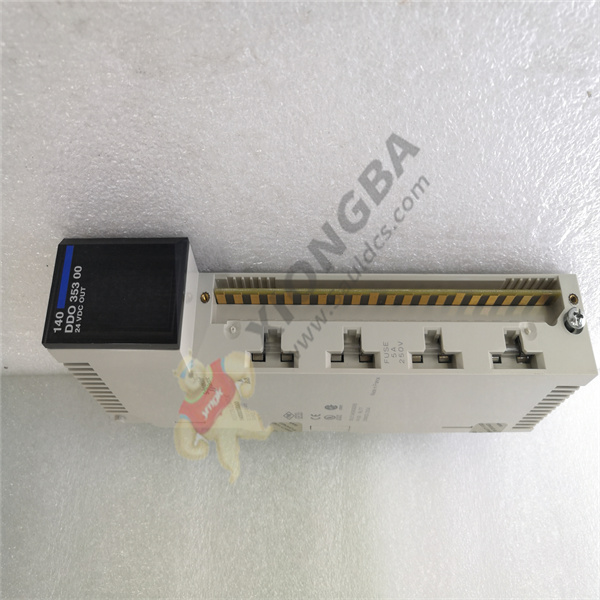

140DDO35300  SCHNEIDER

Part No. : 140DDO35300



Manufacturer: SCHNEIDER



Function: Source output module



140DDO35300 in stock, same day delivery.



140DDO35300 is in unused and rebuilt state.



To get the best price on 140DDO35300 please contact us and we will get back to you within 24 hours.



DISCRETE OUTPUT MODULE – 32 O SOLID STATE



Schneider Electric 140 DDO 35300 is used to switch 24-volt DC power loads. 140 DDO 35300 DC output 24 VDC 4 x 8 source module is used with what? It is used to connect to a shared output of 0 V. The modular device has 32 outputs, namely eight (8) sets of four (4) output points. When the logic level is really high, the external power supply range of the module is 19.2… 30 volts direct current. The power distribution of the 140 DDO 35300 is 1.75 W + 0.4 V x total module load current. The Modicon 140 DDO 35300 requires a bus current of 330 mA. It uses the output fuse fuse fault detection and magnetic field power loss.



The Schneider Electric 140 DDO 35300 has a maximum operating voltage of 19.2 volts… 30 VDC, while the maximum absolute voltage for a 1 ms decaying pulse was 56 VDC. At 0.5 A, the voltage drop in the on-state is 0.4 VDC.



The maximum load current of each of the four points of the Modicon 140 DDO 35300 is 0.5 A, and the maximum load current of each of the eight groups is 4 A. Maximum load current of the module is 16 A. The maximum surge current at each point of the 140 DDO 35300 output module is 5 mA @ 500 ms duration (not more than 6 per minute). It has a 0.4 mA turn-off state leakage point at 30 VDC.



advantage

The Schneider Electric 140 DDO 35300 features 1 minute inter-group isolation at 500 VAC RMS and 1 minute inter-group isolation at 1780 VAC RMS. This Modicon quantum unit has an internal transient voltage suppression output protection.



The Modicon Quantum 140 DDO 35300 features LED indicators to indicate important functions on the output module. Some of these LED descriptions include green activation when bus communication is present. If an error outside the module is detected, a red F-error LED appears. For each of the 32 outputs, a green indicator LED will be established when the channel or point is open.



How do I use the 140 DDO 35300

The model number, description, and color code of the Modicon module can be seen above the front of the device. Right below the module number is the LED display area. The fuse control is located in the front field terminal board. The field junction panel is installed in the unit in front of the fuse control. Covering the site junction panel is a hinged removable door with a customer identification tag.



The product description

The 140DDO35300 is a 32 O solid state discrete output module manufactured by schneider electric. The products are manufactured in France and designed for use in material handling, packaging and textile machinery. All products in the Modicon-Quantum range are covered by a 2-year warranty from MRO Electric. We also buy PLCS from other manufacturers, such as Modicon and Horizontal Wire.

module

A module, also known as a component, is a collection of program statements (a collection of program code and data structures) that can be individually named and independently complete certain functions. It has two basic characteristics: external characteristics and internal characteristics. External features refer to the interface of the module connected with the external environment (that is, the way other modules or programs call the module, including input and output parameters, referenced global variables) and the functions of the module; Internal characteristics refer to the characteristics of the internal environment of a module (that is, the local data and program code of the module).
