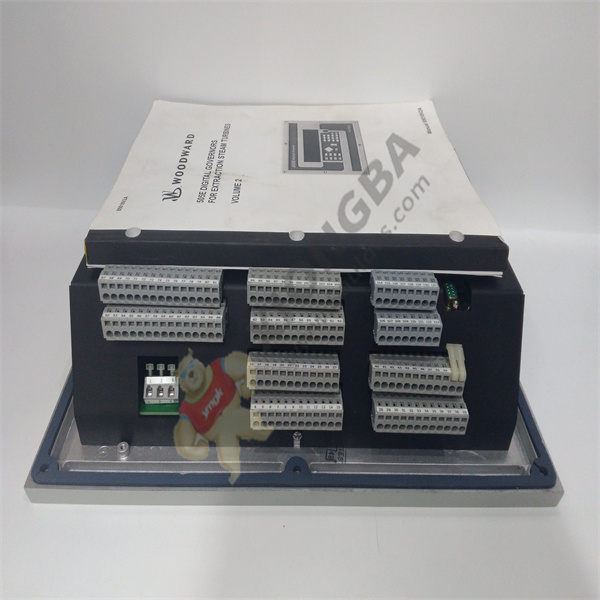

8440-2254 WOODWARD controller
Part No. : 8440-2254
Manufacturer: WOODWARD
Function: Single generator unit
84440-2254 in stock, same day delivery.
8440-2254 in unused and rebuilt condition.
To get the best price on 8440-2254, please contact us and we will get back to you within 24 hours.
Product details
8440-2254 WOODWARD technical specifications
Frequency accuracy 0.1 Hz
Manufacturer Woodward
Drip frequency generator :10 Hz
The drop supply voltage is 6.5 volts
Secondary rating of rated current transformer 5 A
Maximum overload measurement :10 amps
Voltage accuracy 1%; When V % 3EAC100V
The control unit 8440-2254 was manufactured by Woodward. The control unit belongs to the EasyGen 100 series, models 8440-2254 are available in the EasyGen-800 model, this particular model is equipped with Ethernet and SD connectivity.
The control unit has a wealth of features including, but not limited to, tactile buttons on the front panel to operate the manual circuit breakers within the control unit, and a maintenance planner equipped with a multipurpose timer.
Specifications 8440-2254 are for AC measurements. One of the AC measurements is the secondary rating of the rated current transformer with A reading of 5 A. And the frequency accuracy under AC measurement should be plus or minus 0.1Hz.
The size of the 8440-2254 EasyGen-800 model is 237mm×172mm×45mm, and the size of the control panel incision is 116.5mm×90.5mm.
The Woodward EasyGen-800 series is designed to isolate single generator units in standby or main power applications. The controller includes specially built algorithms and logic to start, stop, control and protect the generator set, and to turn on/off the circuit breaker. Woodward’s EasyGen-800 series genset controllers are equipped with state-of-the-art communication interfaces to deliver superior versatility and value to OEM genset packagers.
Easygen-800 Advanced Start/Stop controller features large LCD, I/O expansion, Ethernet and SD card connectivity.
Benefits:
Reduce workload through product standardization, optimize inventory, manufacturing, commissioning and service
Cost-effective, value-packed generator set control for automatic start/stop operation
Covers all basic functions of backup diesel generator set applications, with monitoring, protection and event logging functions common to high-end controls
Heavy duty relays for engines, circuit breakers and service interfaces
Easy to install and debug
Features:
Three-phase true RMS power detection
Operation Modes: Auto, Stop, and manual, accessible through the front panel, discrete input, or interface
Remote control through multiple interfaces and discrete inputs
Direct support for multiple ECUs, such as Bosch, Cummins, John Deere, MTU, Perkins, Scania, Volvo, Woodward
Two heavy-duty relay outputs for the starting and fuel solenoid valves
Event and data logging with a real time clock
Maintenance planner with versatile flexible timer
Uptime, startup, maintenance counters, and monitoring
The winding of AC system has three switchable parameter sets: rated voltage, rated frequency, rated current, rated power and rated speed
Can be used as indicator instrument on pumping unit (relay is suppressed)
It can be configured from the computer via USB or a password-protected front panel
Manual circuit breaker operation, touch button on the front panel
Custom startup flag to adjust screen display time
The user interface can be customized in multiple languages
controller
The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
