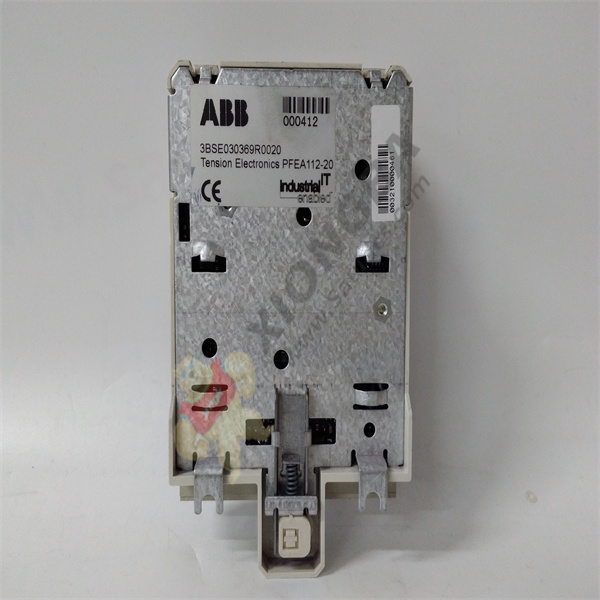

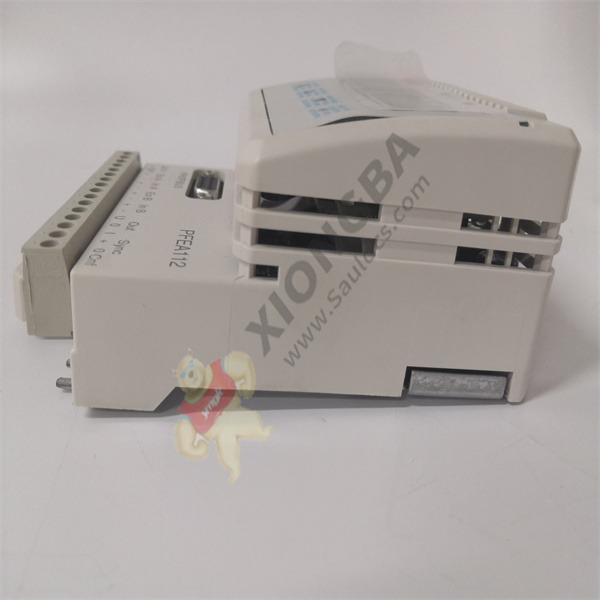

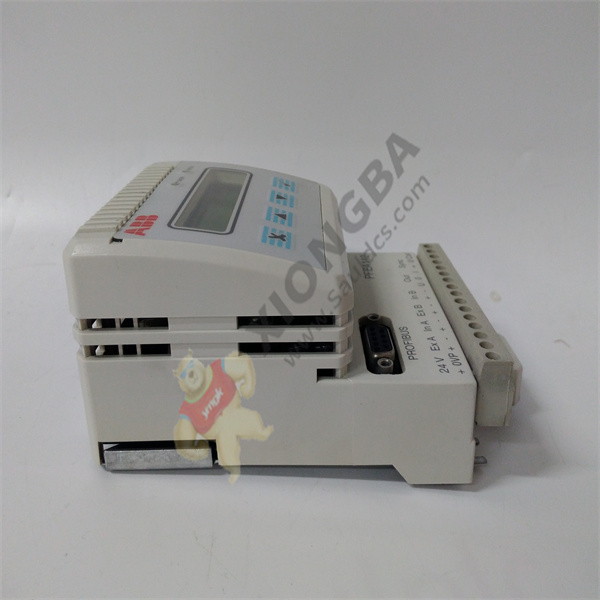

PFEA112 ABB

Part number: PFEA112



Manufacturer: ABB



Function: Tension controller



PFEA112 is in stock and shipped the same day.



PFEA112 is unused and rebuilt.



To get the best price on PFEA112, please contact us and we will get back to you within 24 hours.

ABB’s PFEA 112 series tension controller is a cost-effective, user-friendly tension controller that provides accurate and reliable control or monitoring of SUM signals for two tensiometers.



SUM signal can be divided into two types of signal A and B, flexible size, can be easily installed and integrated into various types of electric control cabinet.



PFEA112 series tension control unit, the basic function is to provide the frequency of 330HZ excitation signal to the tensiometer to achieve signal measurement and processing functions, can also provide output signal to control and indicate



Tension measurement results. The signal processing function of PFEA112 is to achieve accurate and reliable signal output by means of amplification, correction and filtering.



PFEA112 is the PROFIBUS-DP version of PFEA111. In addition to providing the same basic functions as PFEA111, PFEA112 also provides fieldbus interaction functions.



PFEA 112, IP 20 PFEA 112-20 Order Number: 3BSE030369R20



PFEA 112, IP 65 PFEA 112-65 Order number: 3BSE030369R65



PFEA112 technical parameters:

Operating voltage DC24V(18-36V)

Power: 7.5 W

Frequency: 45-65 hz

Number of tension units: 2

Excitation signal current: 0.5 Ams,330Hz

Protection level: IP20 IP65

Operating temperature: +5-+55°C

Green/red LED indicator

Multilingual version



N, KN, KG, LBS, N/M, KN/M, KG/M, PLI showed more units



PFEA112 Optional attachment



Insulated amplifier PXUB 201: When the analog output needs insulation requirements, can choose ABB matching PXUB 201 insulated amplifier



PXUB 201 Technical parameters:



Supply Voltage +24 V (20 — 253 V AC/DC)

Current consumption 10 mA + external load

Signal range Input Output

0 — ±10 V 0 — ±10 V

0 — ±10 V 0 — ±20 mA

0 — 10 V 4 — +20 mA

Rated insulation voltage 600 V (basic)



Relay board PXKB 201: DIN-rail mounted and can be used with insulated amplifiers when IP65 protection is selected



PXKB 201 Technical parameters:



Supply voltage +24 V DC

Power consumption 18 mA

Contact data AC 6 A at 250 V

DC 6 A at 250 V



Dc power supply:



PFEA 111 PFEA 112 PFEA 113

SD821 2.5A 6 6 3*

SD822 5 A 12 12 6*

SD823 10 A 24 24 12*
