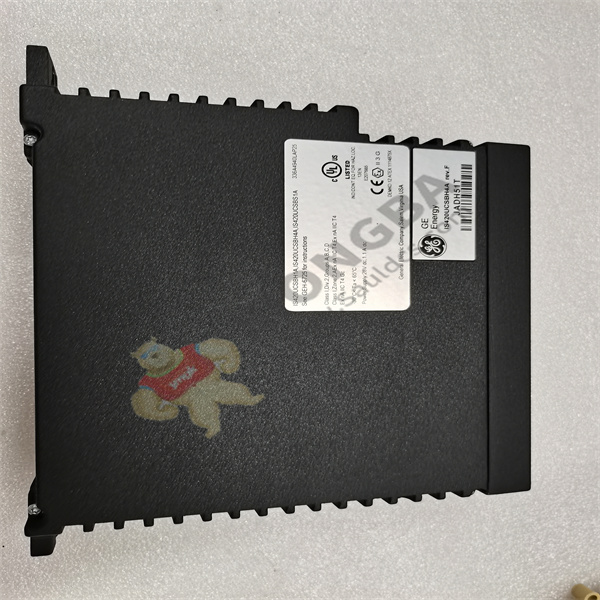

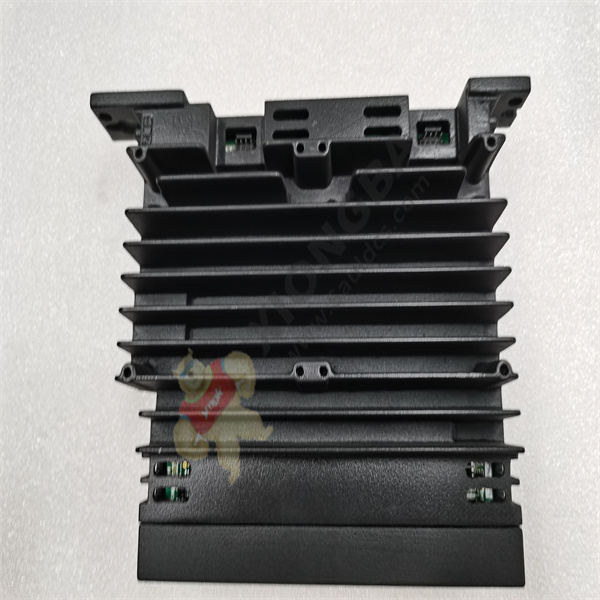

IS420UCSBH4A GE controller

Part number: IS420UCSBH4A



Manufacturer: GE



Function: Controller



IS420UCSBH4A is in stock and shipped the same day.



IS420UCSBH4A is in the unused and reconstructed state.



To get the best price on IS420UCSBH4A, please contact us and we will get back to you within 24 hours.

IS420UCSBH4A is the available controller for the GE Mark VIe system. It was one of the last Speedtronic systems released by GE for the management of industrial gas and steam turbines. The IS420UCSBH4A is one of five UCSB controllers available for the Mark VIe system. It is a quad-core controller that provides high performance and optimal reliability. The device is built around the QNX Neutrino operating System and runs on a 1066 MHz Intel EP80579 microprocessor. The system uses Boolean logic control block language in relay ladder diagram format. This format supports Boolean logic, 16 – and 32-bit signed and unsigned integers, and 32 – and 64-bit floating-point programming.



The IS420UCSBH4A weighs 2.4 pounds and is designed to operate at ambient temperatures ranging from -22 to +149 degrees Fahrenheit. General Electric Manual GEH-6721 Volume 1 will have more information on the technical requirements and environmental limitations of the device.



IS420UCSBH4A supports interoperable redundant configurations, where different platform types work together in a redundant set. This means that if a set of controllers fails, the operator can replace it with the same or a different support controller type while the process is running, without losing control of the plant. IS420UCSBH4A is compatible with UCSCH2A controllers. Instructions on how to replace redundant controllers can be found in the GE publications GEH-6700 or GEH-6703.



For more information about IS420UCSBH4A, refer to the relevant manuals, user guides, and data sheets originally provided by GE.

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
