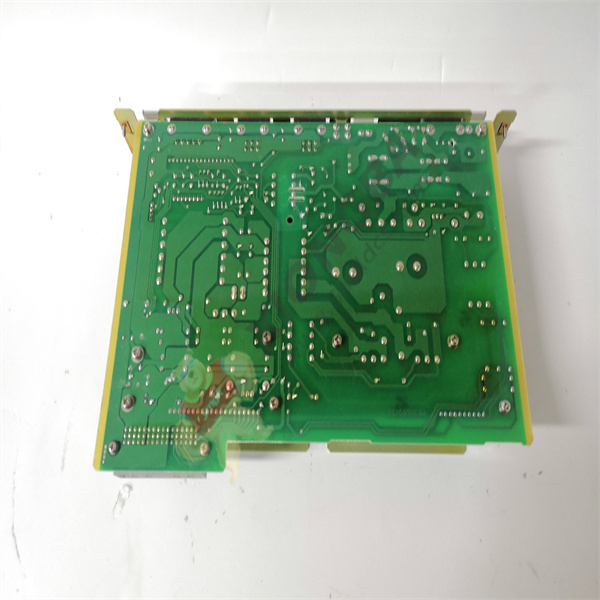

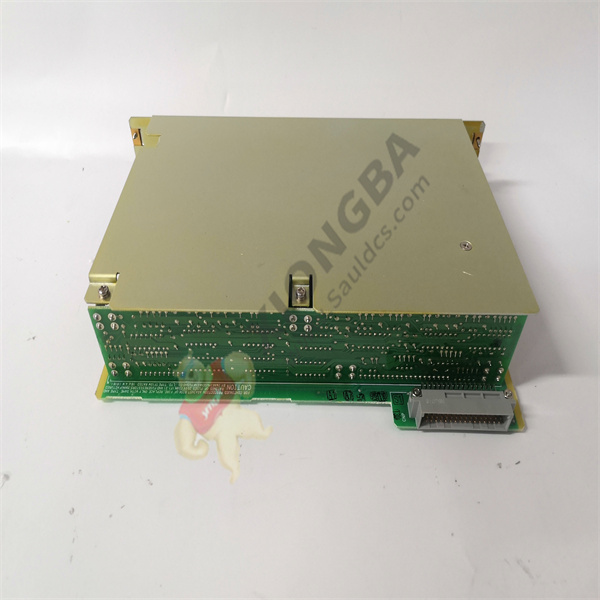

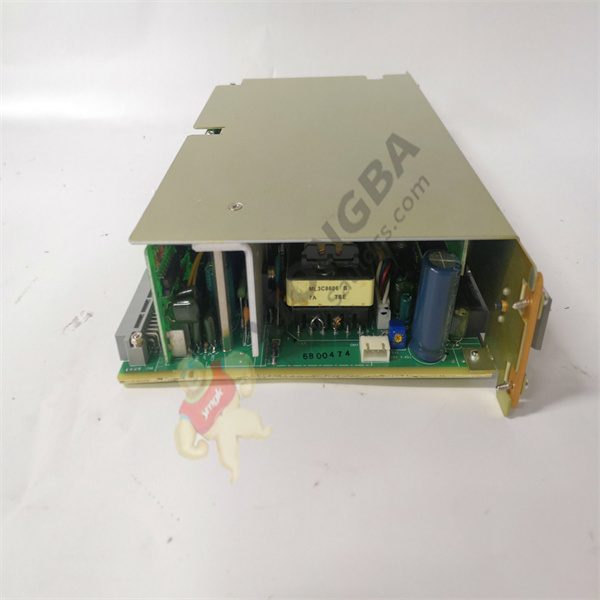

YASKAWA CPS-150F controls the power supply unit contactor JANCD-XCP0101C-1



YASKAWA CPS-150F

YASKAWA CPS-150F

YASKAWA CPS-150F

This unit provides DC power supply (DC5V, 24V) for I/O contactor unit (JZNC-XIU 01) and programming pendant. It is also equipped with an input function for turning on and off the control power.

1. Remove all cables connected to the power control unit.

2. Loosen the four screws that connect the power supply unit to the rack. (two on each side

A screw).

3. Pull the power control unit out of the rack and secure the rod

Up and down side.

4. Insert the new power supply unit into the slot of the rack.

5. Push the new control power unit until it is placed in the same position as the other circuit boards.

6. Tighten the screws.

7. Connect all disconnected cables.

System Control Circuit Board (JANCD-XCP01)

The board performs control of the entire system, displays to programmed pendants, control operation keys, control operation, computational interpolation, and interfaces with the servo control circuit board (with the serial communication board JANCD-XIF03 or JANCD-XIF04). The board has a PC card interface and a serial interface for RS-232C. Jancd-xmm 01 board (optional) can be installed when expanding CMOS memory.

controller

The controller refers to the main command device that changes the wiring of the main circuit or control circuit and changes the resistance value in the circuit to control the starting, speed regulation, braking and reverse of the motor in a predetermined order. It is composed of program counter, instruction register, instruction decoder, timing generator and operation controller. It is the “decision-making mechanism” that issues commands, that is, it completes the operation of coordinating and directing the whole computer system
