Central processing unit PM 783F Technical article
PM 783F 3BDH000364R0005 Central Processing Unit (2 MB) Without operating system. The operating system has to be loaded during software installation. Needs external 24 VDC power supply Software version 2013 SP1 RU04, 2016 SP1 RU03 or higher is mandatory. For details, refer to the Freelance AC 700F Compatibility Matrix (2PAA106303D0002 C). Terminal Base TB 711F

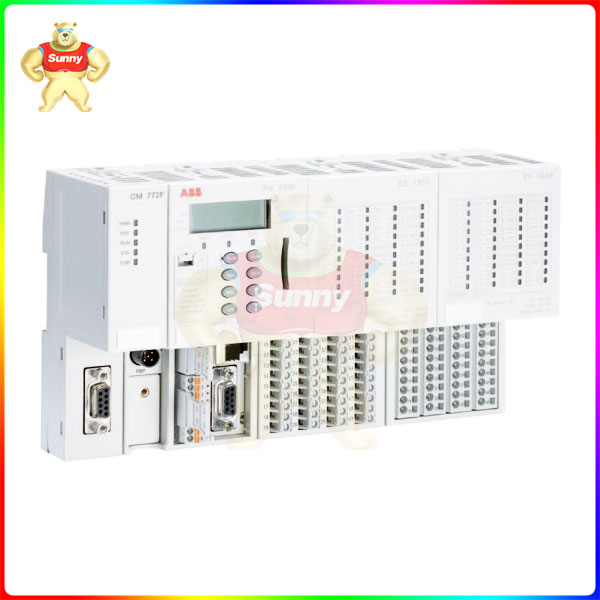

AC 700F controller Technical article
The AC 700F controller comes in a really small footprint and high signal density of S700 I/O. The S700 I/O modules are directly plugged to the CPU module or can be used as remote I/O via PROFIBUS. A maximum of eight modules can be connected to one controller. 3rd party I/O‘s can be connected via

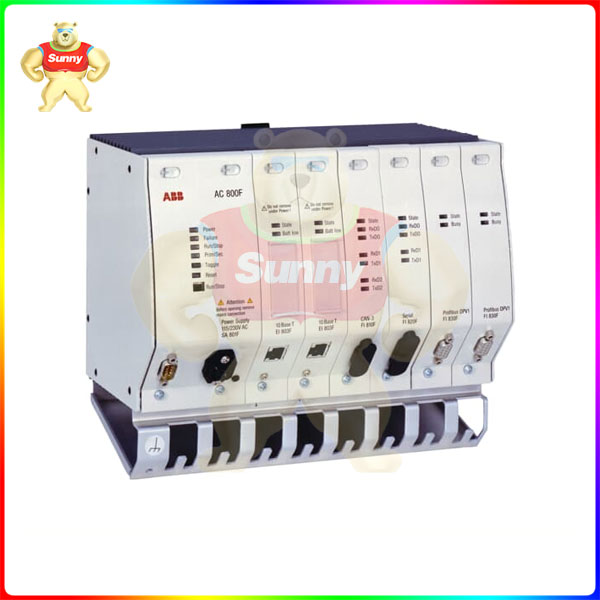

AC 800F Coated and G3 compliant hardware
G3 compliant components are protected with a special coating against corrosive gases. The following Freelance ISA71.04 G3 compliant components can be ordered under the same conditions as any ordinary Freelance component. G3 compliance for AC 800F requires exclusively use of –Z components. AM 810F-Z serves for closing unused slots and the behind system plug. G3
FI 840F FF / HSE module Technical article
FF / HSE module FI 840F FI 840F 3BDH000033R1 Fieldbus Module, FF HSE. Freelance V7.1SP2a or higher is mandatory. The FI 840F is a high speed ethernet fieldbus module designed for fast data exchange in production engineering with decentralized peripherals. The FF / HSE module FI 840F is a Fieldbus Foundation-(FF)-Master. Using the Freelance it
AM 811F AC 800F battery module
AM 811F 3BDH000050R1 Battery Module To use together with PM 803F Without battery SB 808. Freelance V7.1SP2a or higher is mandatory. The battery module can be used in non-redundant controllers with only one Ethernet module to increases the buffering time. Features: • Provides battery backup • Enables redundant battery energy backup on the AC 800F
FI 830F PROFIBUS module Technical article
FI 830F PROFIBUS module FI 830F 3BDH000032R1 Fieldbus Module, PROFIBUS-DP To use together with PM 802F or PM 803F. The FI 830F module interfaces to the PROFIBUS fieldbus. It provides functionality according to the PROFIBUS-DP V1 standard (DIN 19245 amendment 1) and supports baud rates up 12 MBd. The module is the master on the
FI 820F AC 800F Technical article
Serial module FI 820F FI 820F3BDH000031R1 Fieldbus Module, Serial (2 channel) To use together with PM 802F or PM 803F. The FI 820F module provides connectivity to a variety of serial fieldbuses and serial protocols. Standard protocol is MODBUS By using different connection cables the physical nterface can easily be selected: RS485 (half duplex), RS422
FI 810 Fieldbus interface modules Technical article
CAN-3 module FI 810 FI 810F 3BDH000030R1 Fieldbus Module, 3 channel CAN modules. To use together with PM 802F or PM 803F for rack I/O. The FI 810F module provides connectivity to the Freelance rack I/O - up to 5 racks can be connected. It provides functionality according CAN 2.0 specification and supports baud rates
