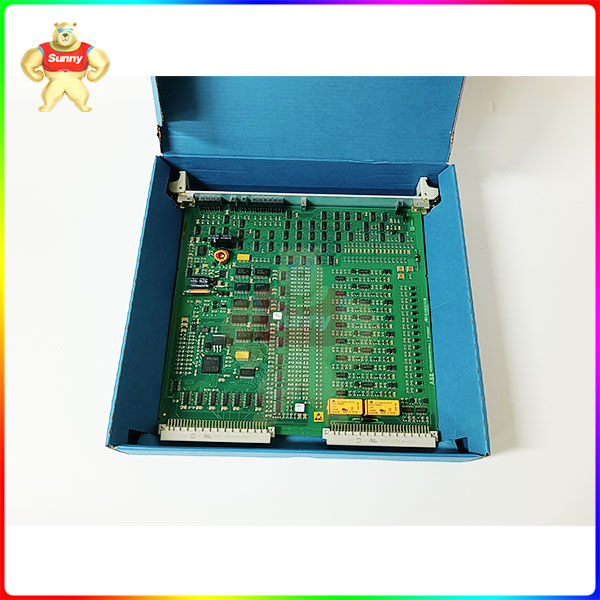

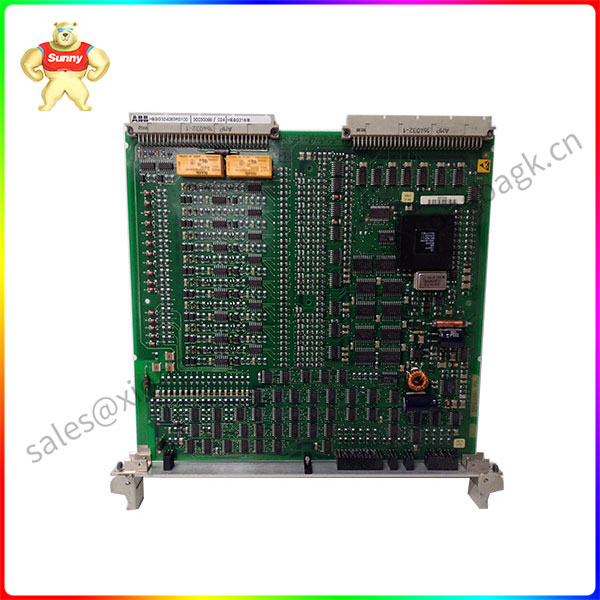

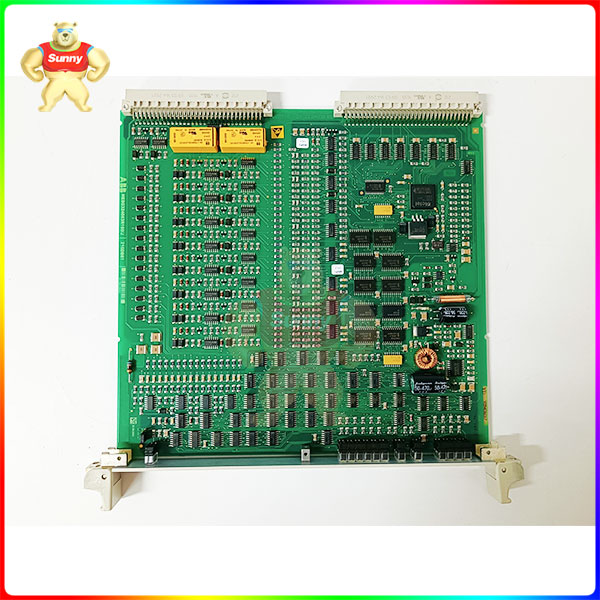

216DB61 HESG324063R100 HESG216882/A Analog Output module

1. The main function of the analog input module is to collect analog signals. After collecting the external

pressure sensor, the analog signal collected by the pressure sensor is collected inside the module and processed

accordingly. Here the sensor data including voltage, current, thermal resistance, thermocouple, temperature and

other analog values, and then transmitted to the computer intelligent module through the bus.

2. The function of analog output module is to convert the input digital signal through digital-to-analog conversion,

and the output can be controlled by continuous current and signal.

3. Digital module: digital module has two functions: input and output. If this method of integration is not adopted, more

space can be saved, otherwise users need to buy two modules when using, digital module solves this problem,

namely: integrated input/output function, one module can input signals and output signals.

5 functions of the analog module 216EA61b HESG324015R1 KHESG324258R3I HESG448230R1

1. Collection function

Collect pressure, temperature, displacement, other transmitter standard signals, as well as some flow meter, pulse meter flow data, equipment operating status and other data.

2. Control function

Support automatic control, remote control of water pumps, valves and other control equipment.

3. Display function

Display function is also digital tube display, LCD display is optional, also support external display.

4. Remote management function

Support remote meter setup and program upgrade via GPRS transmission device. The alarm function monitors the data, and reports the alarm information immediately if there is an abnormal situation.

5. Storage function

This machine saves monitoring data regularly, even if cut off the power will not be lost.
