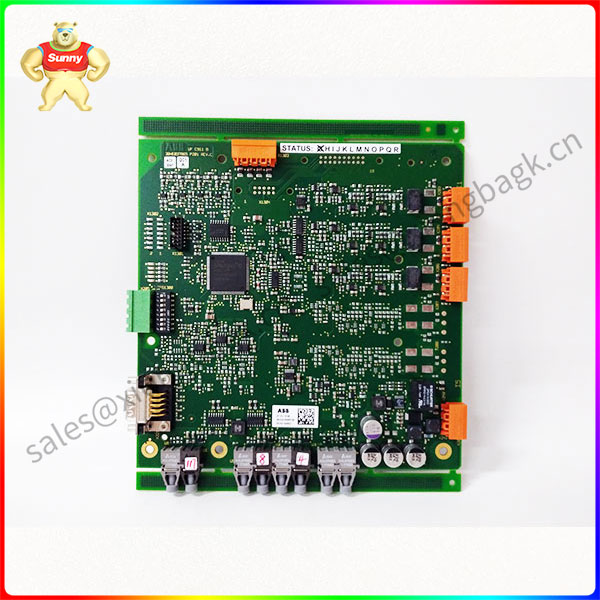

UFC911B104 Circuit Board Module UFC 911 B104

Condition: Brand new

Warranty: 12 months

Estimated time of delivery: Available. Immediate delivery.

Circuit boards according to the number of layers to be divided into single panel, double panel, and multilayer circuit boards three big classification.
The first is the single panel. On the most basic PCB, the parts are concentrated on one side and the wires on the other. This type of PCB is called a single-sided circuit board because the wires appear on only one side. Single panels are usually simple and inexpensive to make, but the disadvantage is that they cannot be used on complex products.
Dual panel is an extension of single panel, when single-layer wiring can not meet the needs of electronic products, dual panel will be used. Both sides are covered with copper and have a route, and the line between the two layers can be guided through the hole, so that it forms the required network connection.
The multilayer board refers to a printed board having more than three layers of conductive graphics layers and insulating materials between them, and the conductive graphics between them are interconnected according to requirements. Multilayer circuit board is electronic information technology to high speed, multi-function, large capacity, small volume, thin, lightweight direction of development products.
According to the characteristics of the circuit board to be divided into soft board (FPC), hard board (PCB), soft and hard combined board (FPCB).
