1407-CGCM C Allen-Bradley Combination Generator Control Module

Description

1407-CGCM C Allen-Bradley Combination Generator Control Module

Welcome to my shop. We are the largest supplier in China. We have a sales history of 20 years in the automation industry. There are many brands of automation products and robots around the world. Are our products comprehensive about AB, FOXBORO, Triconex, ABB Bailey, ICS TRIPLEX, Epro, GE FANUC, Honeywell QCS, Siemens Moore, Motorola, OVATION, schneider, etc. If you have other products to buy, please contact me at 18059884797 and wish us a happy cooperation.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

• Manufacturer : Allen Bradley
• Product No. : 1407-CGCM
• Product Type : Combination Generator Control Module
• Control Power
  • Supply

    18…32V DC (24V DC nom) (The device is to be powered by a 24V Nominal Battery or 24V DC Power Supply with ATEX certification.)

    AC ripple, max

  • Burden

    30W

    50%, 50…120 Hz

• Generator Current Sensing
  • Type : 3-phase plus cross current compensation input.
  • Frequency : 50/60 Hz
  • Range : 1 A or 5 A max continuous
  • Burden

    < 0.1 VA per phase for metering CTs

    < 2.5 VA per phase for cross-current inputs

  • Cross-current compensation entity parameters ( ID(+) 1 A, ID(+) 5 A, ID(-) )

    Ui = 12 V

    Ci = 14.1 nF

    Ii = 5 AAC

    Li = 1.5 µH

• Metering
  • Generator voltage
    • Range : 57…208V AC
    • Accuracy : 0.2% (50/60 Hz)
  • Generator current
    • Range : 0…5 A AC
    • Accuracy : 0.2% (50/60 Hz)
  • Generator frequency
    • Range : 10…90 Hz
    • Accuracy : ±0.05 Hz
  • Bus voltage
    • Range : 57…208V AC
    • Accuracy : < 0.2% (50/60 Hz)
  • Bus frequency
    • Range : 10…90 Hz
    • Accuracy : ±0.05%
  • Phase angle
    • Range : ±180°
    • Accuracy : ±1.0°
  • Field voltage
    • Range : 0…200V DC
    • Accuracy : ±1.25 V or ±1.0% (whichever is greater)
  • Field current
    • Range : 0…30 A AC
    • Accuracy : ±0.15 A or ±1.0% (whichever is greater
  • Power factor
    • Range : 0.5…0.5
    • Accuracy : <0.4% of actual PF
  • Power – real and reactive
    • Range : 0…200% of nom
    • Accuracy : <0.4% of rated kVA
  • Load share : Resolution: 0.1% of full scale voltage
  • Load Share entity parameters ( LS(+), LS(-) )

    Ui = 0…5 V

    Ci = 101 nF

    Ii = 111 µA

    Li = 0

• Environment
  • Temperature, operating : -20…70 °C (-4…158 °F)
  • Temperature, storage : -40…85 °C (-40…185 °F)
  • Humidity, operating : 5…95% (noncondensing)
  • Shock, operating : 30 g
  • Shock, nonoperating : 50 g in 3 perpendicular planes
  • Vibration, operating

    10 … 500 Hz, 5.0 g / 0.015 in. max (p-p)

    2 hours each axis

  • Dielectric strength : Tested per IEEE 421.3
  • Salt fog : Tested per MIL-STD-810E, Method 509.3
• Heat dissipation : 3.1 kW max
• Dimensions (W x H x D) : 24.77 cm x 35.56 cm x 20.96 cm
• Weight : 7.7 Kg
• Shipping Weight : 9 Kg

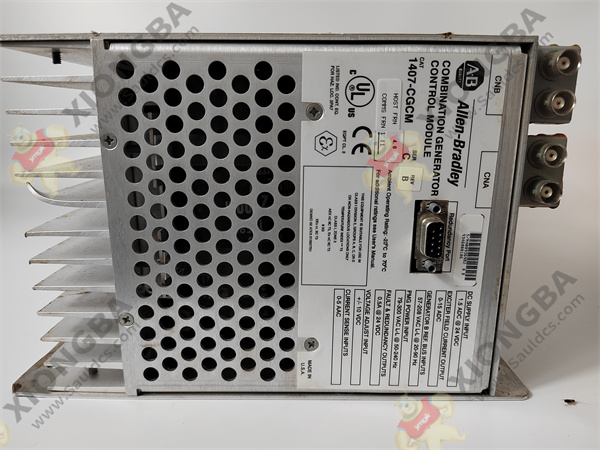

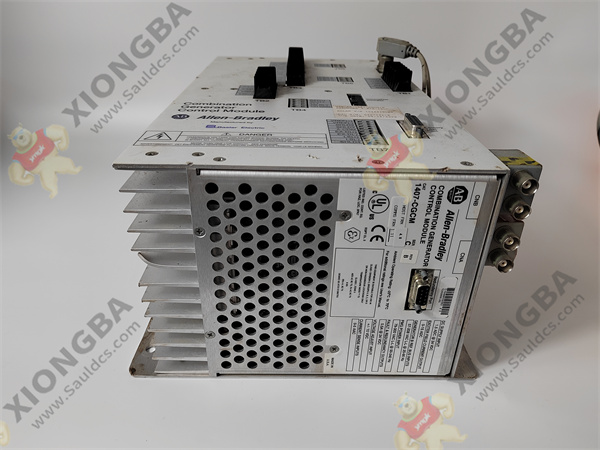

A-B 1407-CGCM C

A-B 1407-CGCM C

A-B 1407-CGCM C

A-B 1407-CGCM C

A-B 1407-CGCM C
