1746-NO4VA A-B SLC 500 Analog Output Module

1746-NO4VA A-B SLC 500 Analog Output Module

[Product features]

① Brand:Allen-Bradley

② Model:1746-NO4V

③ product category:SLC 500 Analog Output Module

④ Payment:T/T,USD,Western Union

⑤ Freight: The freight in different areas shall be subject to the local freight forwarder.

⑥ Does it include tariffs: it does not include any taxes.

⑦ Packaging: Use the seller’s safe packaging.

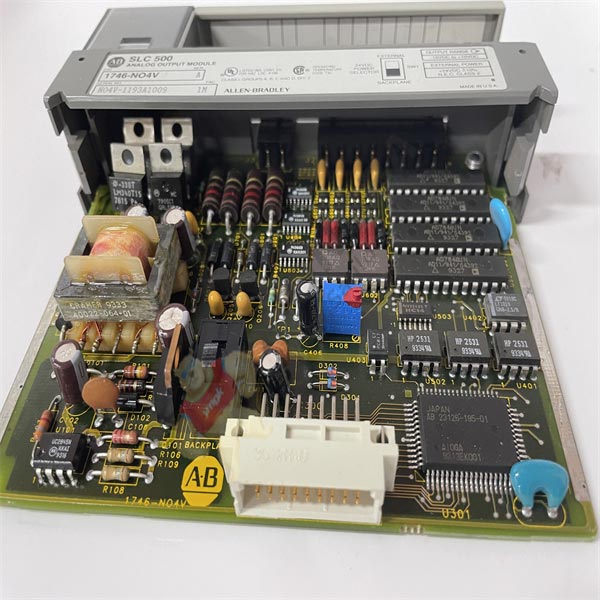

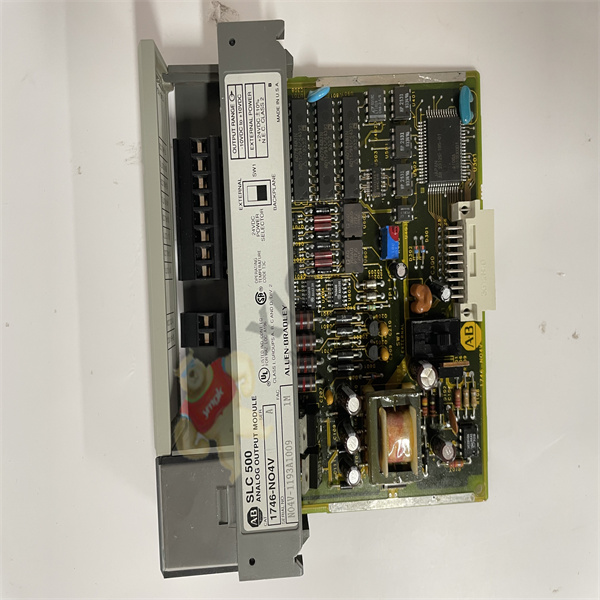

The Allen-Bradley 1746-NO4V is an SLC 500 Analog Output Module.

Category: Tags:

Description

1746-NO4VA A-B SLC 500 Analog Output Module

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ:3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746-NO4V
Series SLC 500
Module Type Analog Output Module
Backplane Current (5 Volts) 55 milliamps
Outputs Four (4)
Backplane Current (24 Volts) 145 milliamps
Output Voltage -10 to +10VDC
Full Scale Output 10 VDC
Conversion Method R-2R Ladder
A-B 1746-NO4VA

A-B 1746-NO4VA

A-B 1746-NO4VA

A-B 1746-NO4VA

A-B 1746-NO4VA

A-B 1746-NO4VA

The Allen-Bradley 1746-NO4V is a Four (4) point, non-isolated SLC 500 standard analog voltage output module. It has an output range of -10 to 10 Volts -1 LSB DC with backplane current ratings of 55 mA at 5 Volts and 145 mA at 24 Volts. AN external 24 VDC power supply may use with this module by activating SW1 external. If the backplane power is sufficient, the backplane power may be used as the power source of this module instead of an external supply. The 1746-NO4V has a field wiring to backplane isolation of 500 Volts DC, and a maximum load reactance of 1 µF and maximum load current of 10 mA.

This module is a factory calibrated module and uses a 16-bit two’s complement binary communication format. The 1746-NO4V is enclosed in an open-type enclosure and mounts on a 1746 chassis. It is also equipped with an LED status indicator and a removable terminal block (RTB). Recommended wire size for this module is #14 AWG maximum wire size. Its update time is 512 µs for all the channels that are in parallel, and it has a step response time of 2.5 ms at 95%. The 1746-NO4V’s operating temperature ranges from 32 to 140 degrees Fahrenheit, its non-operating temperature ranges from -40 to 185 degrees Fahrenheit and its non-condensing relative humidity for operation and storage is 5 to 95%. The 1746-NO4V’s has a maximum overall accuracy drift of +/- 54 ppm/degrees Celsius full scale.

The Allen-Bradley 1746-NO4V module is a Programmable Logic Controller (PLC) analog output module that belongs to the SLC 500 product platform. The output channels of this module produce voltage signal ranging from -10 to +10VDC signals.
