1746SC-INO4I Allen-Bradley Analog Output Module

Description

1746SC-INO4I Allen-Bradley Analog Output Module

Welcome to my shop. We are the largest supplier in China. We have a sales history of 20 years in the automation industry. There are many brands of automation products and robots around the world. Are our products comprehensive about AB, FOXBORO, Triconex, ABB Bailey, ICS TRIPLEX, Epro, GE FANUC, Honeywell QCS, Siemens Moore, Motorola, OVATION, schneider, etc. If you have other products to buy, please contact me at 18059884797 and wish us a happy cooperation.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

1746SC-INO4I

1746SC-INO4I

1746SC-INO4I

1746SC-INO4I

1746SC-INO4I

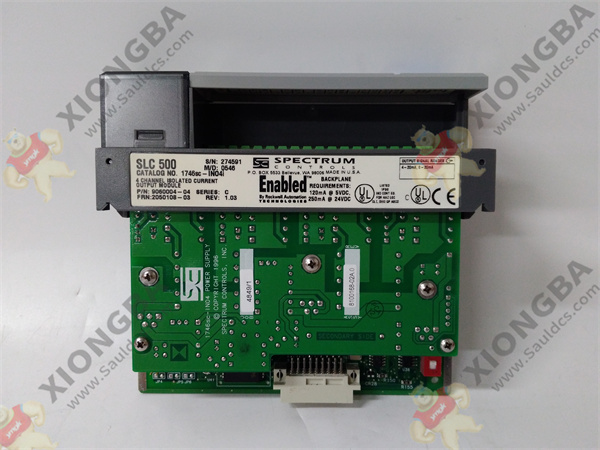

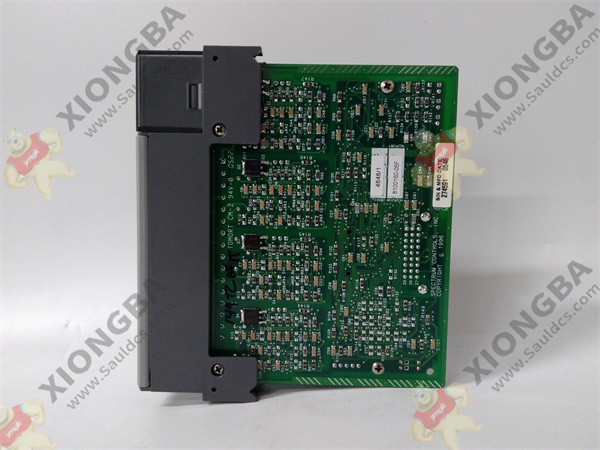

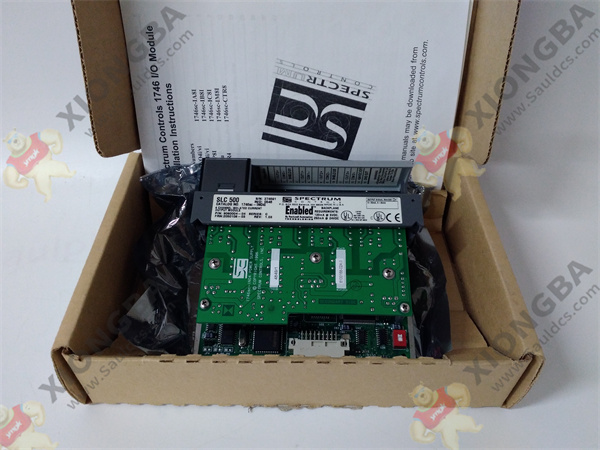

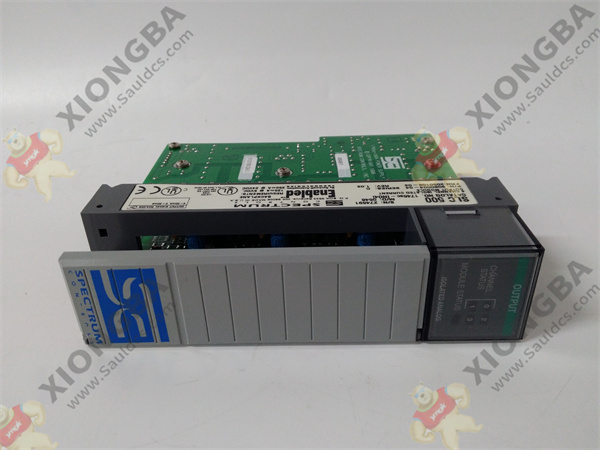

The 1746sc-INO4I is an analog current-only output module from Spectrum Controls. The module has Four (4) isolated-channel outputs. The 1746sc-INO4I occupies a slot in the 1746 Input / Output chassis. The 1746sc-INO4I draws a current of 120 milliamperes at 5 Volts DC from the backplane, but to minimize the current load on the backplane, the 1746sc-INO4I can be interfaced with an external power source with a voltage rating of 24 Volts DC. The 1746sc-INO4I has a DIP switch to specify whether the module draws power from the backplane or an external power source. When the DIP switch on the 1746sc-INO4I is set to the RACK position, the module draws power from the backplane while the module is powered from an external 24 Volts DC power supply, the DIP switch should be set to EXT position.

The 1746sc-INO4I draws 5 Volts DC power from the backplane. This consumption rating is same when the module is powered externally. The module has a removable 16-position terminal block which accommodates a Belden 8761 shielded twisted pair cable. The 1746sc-INO4I has a resolution of 16 bits, a current of 366 Nano-Amps per count, and a voltage of 320 microvolts per count. The 1746sc-INO4I isolated-channel analog output model has auto-calibration programmable limits and safe states, an optoelectrical isolation of 750 Volts DC (channel-to-channel and field-wiring-to-backplane). The thermal dissipation rating for the 1746sc-INO4I stands at a maximum of 4.5 watts, a maximum update time of 33.7 milliseconds for all the 4 channels in parallel, and a step response time of 1 millisecond. Additionally, the 1746sc-INO4I is UL/CUL class I, division 2, groups A, B, C, D, and CE certified.

The SLC 500 compatible module with part number 1746sc-INO4I is an analog output module that is manufactured by spectrum control. This module is manufactured by Allen-Bradley’s encompass partner Spectrum Controls.

Encompass partners are Allen-Bradley approved and certified partners that provide Allen-Bradley compatible products.

The appearance of this module resembles an actual SLC 500 module. This module features Four (4) differential analog output channels that provides 0-20 mA, 0-21 mA, 4-20 mA in 16-Bit resolution, 366 nA per count. This module features extended output ranges, auto-calibration, programmable limits and safe states. The data of this module is capable of being formatted to 16-Bit Two’s complement, Scaled Engineering Units, Scaled for PID, 1746-NO4 format and user-defined proportional counts. It has an accuracy of 0.08% of full scale at 25 Deg. Celsius and 0.15% at 60 Deg. Celsius.
