1747-L541 Allen-Bradley SLC 5/04 processor

Description

Technical Specifications for 1X00416H01 1C31124G01 19-01-21

The Allen-Bradley 1747-L541 is an SLC 5/04 processor that is part of the SLC 500 series, which also includes the 1747-L541, L542, and L543 controllers. It is a high-performance processor enhanced with faster communication and shorter program execution time. The SLC 5/04 comes with 16K, 32K, or 64K words of memory and it can control a maximum of 4096 input and output points. For communication, the 1747-L541 has a built-in DH+ channel that supports extended messaging capabilities and high-speed communication. It also has an RS-232 channel for supporting DF1 radio modem, DH-485, ASCII and Modbus RTU communications. For programming, it includes advanced math instructions and various additional instructions. It also supports remote I/O, DeviceNet pass-through, and indirect addressing.

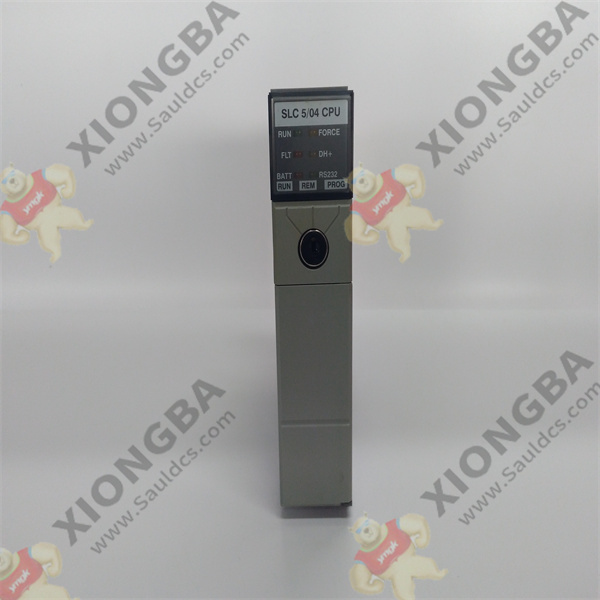

The 1747-L541 has a typical Program Scan Time per Keyword of 0.9 milliseconds and a typical I/O scan time of 0.225 milliseconds. It requires a backplane current load of 1 Amp at 5 Volts DC and of 200 mA at 24 Volts DC. It has a 1-millisecond Selectable Timed Interrupt (STI) and 0.5 milliseconds Discrete Input Interrupt (DII). For program and data table storage, it uses a 1747-M13 flash-based memory device with a 64 KB memory. The SLC 5/04 includes a 3-position key switch on the front panel for selecting the Run, Remote, or Program modes. The 1747-L541 SLC 504 has RUN, FLT, BATT, FORCE, DH+, and RS-232 LED status indicators for troubleshooting and diagnostics. The SLC 500 series of processors has a simple, cost-effective design with a history of good installations in applications such as HVAC control, SCADA, and material handling.

The Allen-Bradley 1747-L541 is an SLC 5/04 controller that features an integrated 16 KB user memory, that is designed for handling up to 4096 Input and outputs. This controller belongs to the modular style SLC 500 programmable Logic Controller (PLC).

The 1747-L541 ideal for use in medium application as this controller is capable of implementing distributed IO application with the use of a communication adapter on the CPU rack and communication scanner on the IO racks. The built in communication ports such as RS232 and Data Highway Plus (DH+) is ideal for use with Human Machine Interface (HMI) whether Allen-Bradley or 3rd party products, Supervisory Control and Data Acquisition (SCADA) such as Allen-Bradley FactoryTalk View or 3rd party SCADA systems as well. RS232 communication port is configurable for DF1 and DH485 peer-to-peer topology while DH+ communications support extended distance and multi-drop topology.

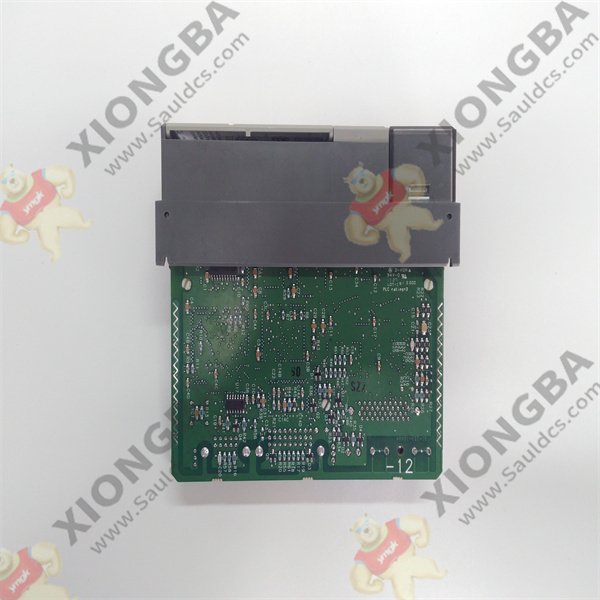

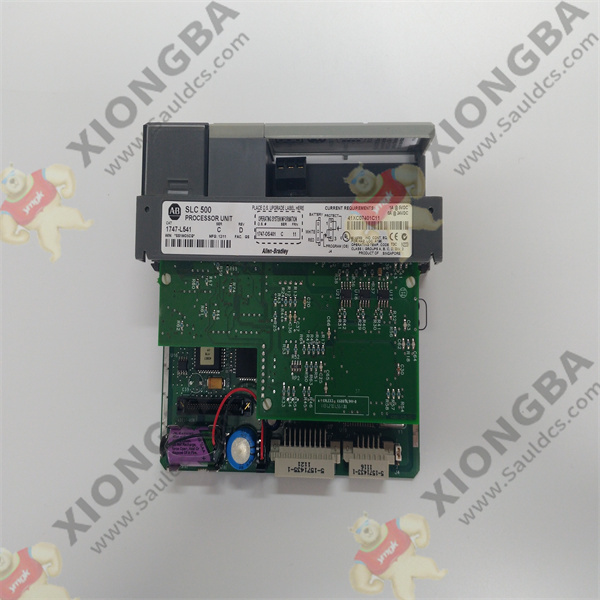

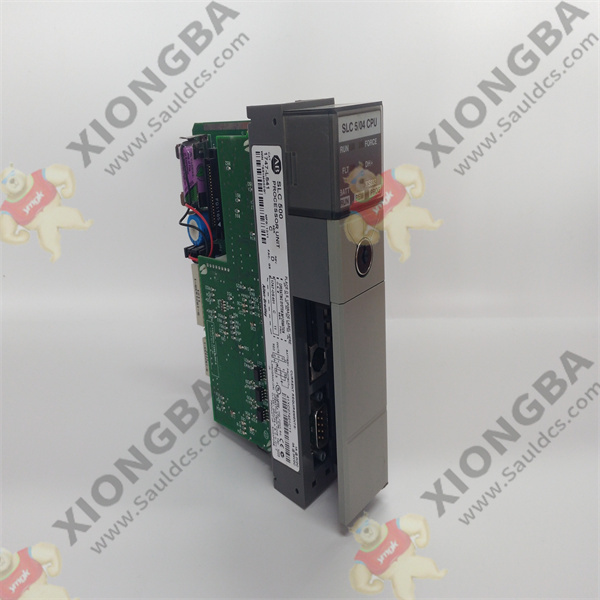

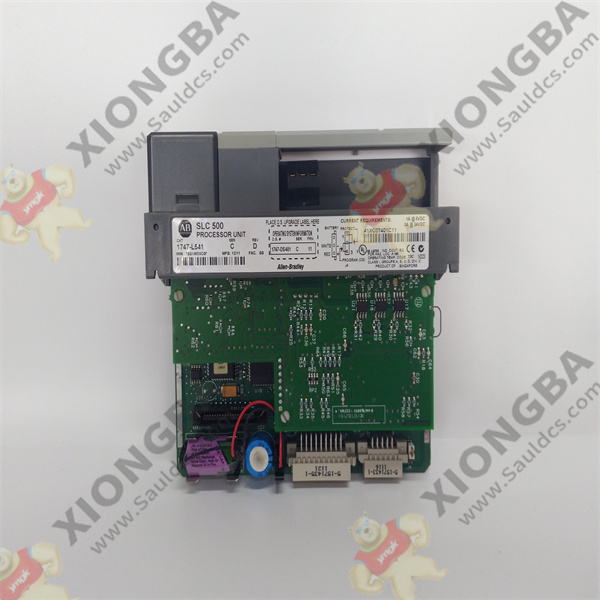

1747-L541 19-01-21

1747-L541 19-01-21

1747-L541 19-01-21

1747-L541 19-01-21

1747-L541 19-01-21
