AB PLC 1747-SDN communication module

Description

AB PLC 1747-SDN communication module

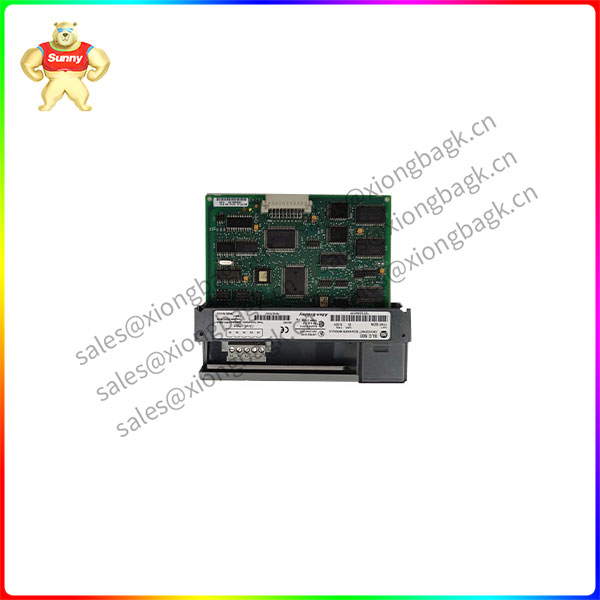

1747-SDN module

PLC has two main structure types: integral type and modular type.

Integral PLC each I/O point of the average price is cheaper than the module type, and the volume is relatively small, generally used in the system process is fixed in the small control system; And modular PLC function expansion is flexible and convenient, in I/O points, input points and output points ratio, I/O module types and other aspects of choice, and easy maintenance, generally more complex control system.

1747-SDN

The Allen-Bradley 1747-SDN is a DeviceNet communication scanner. This scanner module is used to communicate with DeviceNet capable devices over the DeviceNet network or through DeviceNet adapter modules. This module may operate in slave mode; send and receive message in Polled, Strobe, Change-of-State and Cyclic I/O configuration. It also supports pass through configuration wherein, the 1747-SDN acts as a bridge and connects a separate DeviceNet network. This pass through feature is designed to replace the 1770-KFD, 1784-PCD, 1784-PCID, or 1784-PCIDS DeviceNet connection on the network.

Specifically, when implementing Pass-Through configuration, compatible SLC 500 processor is SLC 5/03, SLC 5/04 and SLC 5/05. To configure up to 361 Words, SLC processor firmware required is 4.015 or 5.001 is needed and RSLinx 2.10. For configuration of up to 395 Words, requires SLC 500 firmware needed is 6.0001 or later with RSLinx 2.31 or later.

The 1747-SDN supports configuration of up to 63 nodes at a baud rate of 125 Kbps. It draws backplane current amounting to 5V DC, 500 mA.

The 1747-SDN’s front panel is installed with Two (2) LED status indicators such as Module indicator to report the module’s operation and a Network status LED that indicates the DeviceNet communication link. It also has an LCD display that provides module address and error indication. The DeviceNet terminal is installed behind the access door and provided with a 10-pin linear plug inserted into the DeviceNet port. When configuring this module, an Electronic Data Sheet (EDS) file may be needed if the module is reported unrecognized by the RSLinx software.
