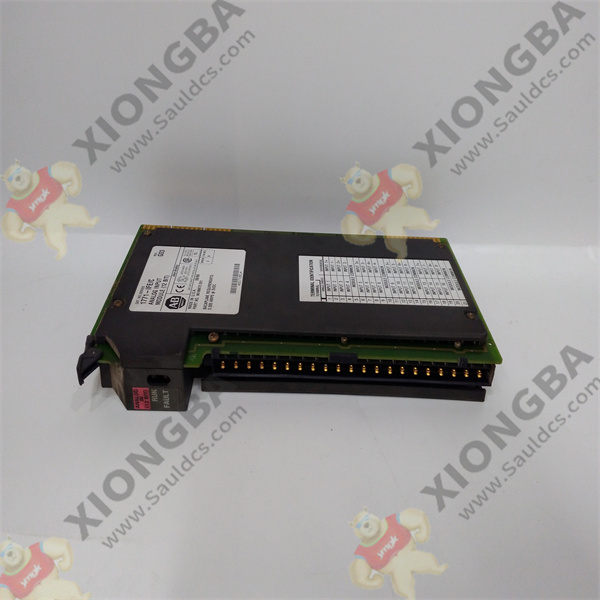

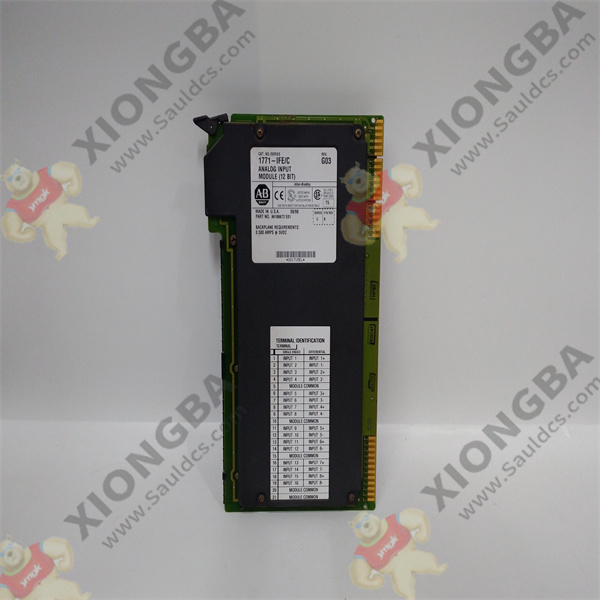

1771-IFE/C Allen-Bradley Analog Input Module

The Allen-Bradley 1771-IFE is a PLC5 Analog Input Module. This module interfaces analog inputs with PLC processors using block transfer programming. It uses a 16-bit resolution and performs the required analog-to-digital conversions and vice versa to interface analog signals with PLC data table values. If input communication is disrupted, it can respond automatically to the fault with the default user configuration. Thus, it provides a predictable and safe response to a fault and limits the extent of the fault. The 1771-IFE is compatible for use in various applications such as Temperature, Pressure, Level, Flow, and other applications. It contains Sixteen (16) single-ended or Eight (8) differential selectable inputs. It has Natural Binary or BCD scaling to a +/-9999 data format. It has a voltage range of -10 to 10 Volts DC and a current range of -20 to 20 mA. It has a backplane current load of 750 mA and a channel update time of 8 milliseconds for 8 channels, 36 milliseconds for 16 channels, and 12 bits plus sign resolution.

The 1771-IFE has a maximum power dissipation of 2.5 Watts and a thermal dissipation of 8.52 BTU/hour. It comes with a 1771-WG wiring arm to replace the module, eliminating the need to disconnect wiring. It requires one slot for installation in an I/O chassis and keying bands for correct installation is between pins 10 and 12 for the lower connector and pins 24 and 26 for the upper connector. The 1771-IFE module contains a green RUN and a red FAULT indicator light on the front panel. It contains optoelectrical isolation to protect the system circuits from electrical transients. It also contains an input filtering feature to reduce electrical noise.

The Allen-Bradley 1771-IFE is an analog input module that is manufactured by Allen-Bradley for use with the legacy PLC 5 Programmable Logic Controller family. This module features channel flexibility with Sixteen (16) Single-ended inputs or Eight (8) Differential inputs. This module has a wide variety of

of input signal selection such as 1 to 5V dc, 0 to 5V dc, -5 to +5V, -10 to +10V dc, 0 to 10V dc, for Voltage and 4 to 20mA, 0 to 20mA, and -20 to +20mA for Current signals.
