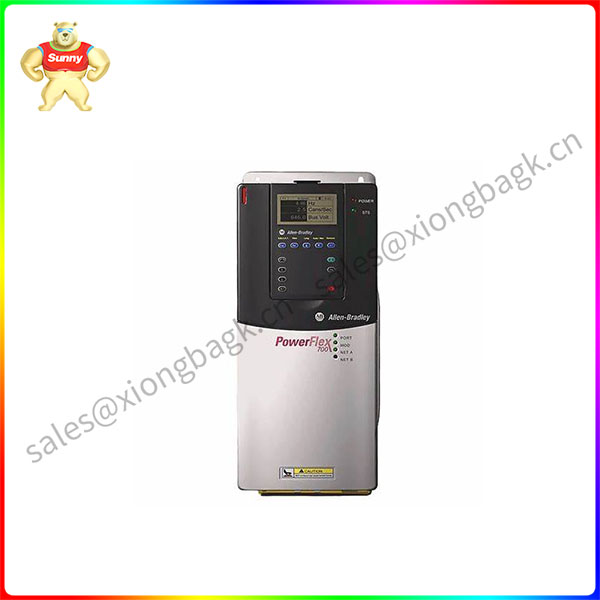

20BC205A0ANNANC0 PowerFlex 700 series inverter
Product Description
20BC205A0ANNANC0 Product Description
I. Product overview
The 20BC205A0ANNANC0 is a PowerFlex 700 series inverter manufactured by Rockwell AB. Designed to control three-phase induction motors, the inverter covers a wide range of applications from the simplest speed control to the most demanding torque control.
Two, the main characteristics
Powerful: With voltage/frequency (V/f) control, speed sensorless vector control and vector control, the PowerFlex 700 inverter provides a world-class motor control solution.
Flexible configuration: provides a variety of functions and parameters for specific applications, which can be used for medium power, high precision, position control, torque control and other applications.
Easy to use: As an easy to use inverter, it offers superior performance and covers a wide range of power ratings.
3. Technical specifications
Model: 20BC205A0ANNANC0
Brand: Rockwell AB
Configuration mode: standard control mode and vector control
Power range: The exact power range is not explicitly given, but the PowerFlex 700 series typically covers a variety of power ratings
Application: Suitable for petroleum, mining, electronics, transportation, textile leather and other industries
20BC105A0AYNANC0
Product parameter
20BC205A0ANNANC0 Frequency converter parameters
1. Basic parameters
Model: 20BC205A0ANNANC0
Brand: Rockwell AB
Series: PowerFlex 700
2. Technical specifications
Control mode:
Voltage/frequency (V/f) control
Speed sensorless vector control
Vector control (including flux orientation control, i.e. Allen-Not Radley Force technology)
Design features:
Industrial grade design
IP30 protection class
Corrugated aluminum reinforced housing
35mm DIN rail mounting
DC(9-36)V wide power input
Relay alarm output is available
Dual power supply redundancy and isolation protection
Interface features:
155M Dual optical interface, supporting fiber transmission Profibus DP bus
Application field
20BC205A0ANNANC0 inverter application field
First, industrial automation
Production process control: The frequency converter can be used to control the speed of various workloads in the production process, such as conveyor belts, mechanical arms, etc. By adjusting the speed of workloads in real time, you can increase productivity, reduce energy consumption, and avoid production accidents caused by speed mismatches.
Energy-saving control: The inverter can adjust the speed of the motor according to actual needs, so as to achieve energy-saving control. In the industrial automation system, by using the frequency converter to control the running speed of the motor, it can avoid the overload or no-load operation of the motor, improve the energy utilization efficiency and reduce the energy cost.
Precise motion control: The inverter can achieve precise control of the motor, thus ensuring the precise movement of the workload. In machining, robot operation and other scenarios requiring high precision control, the application of inverter can provide better dynamic response and motion control accuracy.
Second, other industry applications
Construction industry: Frequency converters are used in the construction industry for the control of elevators, automatic doors, heating and ventilation systems. By precisely controlling the operation of the motor, a more efficient and comfortable built environment can be achieved.
Transportation field: Frequency converter is widely used in the power regulation of high-speed railway, rail transit, elevator, escalator and other equipment. Its efficient energy management and precise control characteristics make the transportation system more efficient and safe.
In the field of water treatment: In the sewage treatment plant, the inverter can improve the adjustment accuracy, reduce the number of motor starts and stops, extend the life of the equipment, and reduce energy consumption.
Iii. Summary
The 20BC205A0ANNANC0 inverter plays an important role in industrial automation and other industries with its powerful functions and a wide range of applications. By using this inverter, you can achieve the precise control of the production process, energy saving and emission reduction, precise motion control and other goals, and create greater value for the enterprise.
