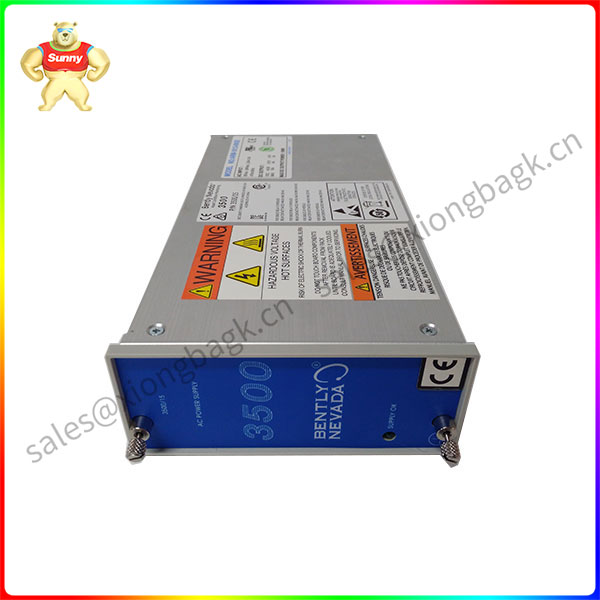

3500/15E 164949-01 AC/DC power module

Description

3500/15E 164949-01 AC/DC power module

Product Description

I. Overview

The 3500/15E 164499-01 is an AC/DC power module from Bently Nevada that is widely used in industrial automation and control systems. It has the characteristics of high performance, high reliability and easy integration to meet a variety of complex control requirements.

2. Technical specifications

Manufacturer: Bently Nevada
Country of Production: United States (USA)
Function: Power module
Input frequency: 47 to 63 Hz
Input voltage:
General voltage AC: Nominal 110 to 220 Vac, 85 to 264 VAC RMS, 120 to 373 VAC
HVDC: 88 to 140 Vdc
Low voltage DC: Use low voltage DC power supply and Low voltage DC power input module (PIM)
Operating temperature: -30 ℃ to +65 ℃
Iii. Characteristics

Compatibility: One or two power supplies with any combination of AC and DC can be accommodated in 3500 racks. The entire rack can be powered by either power source.
Redundant design: When two power supplies are placed in the rack, the power supply in the bottom slot is used as the primary power supply, and the power supply in the higher slot is used as the backup power supply. As long as a second power supply is installed, removing or inserting either power module will not affect the operation of the rack.
Power conversion: AC and DC power supplies accept various input voltages and convert them to voltages that can be used by other 3500 modules.
Wide range of applications: The power module is widely used in Bentley Nevada mechanical condition monitoring systems, as well as industrial automation and control systems that require a stable, reliable power supply.
Fourth, installation and configuration

The power module is half-height and must be installed in the specified slot on the left of the rack. Refer to the official documentation and guide provided by Bently Nevada for installation and configuration procedures.

V. Summary

The 3500/15E 164949-01 power module plays an important role in industrial automation and control systems with its high performance, high reliability and easy integration. It can meet various complex control requirements and ensure the stable operation of the system.

350015

Product parameter

Application field

3500/15E 164949-01 Power module has a wide range of applications, including but not limited to the following aspects:

Industrial Automation:
In industrial automation systems, the 3500/15E 164949-01 power module provides a stable power supply for various automation equipment.
It can support switching equipment, access equipment, mobile communication, microwave communication and optical transmission and other fields of equipment to ensure the stable operation of industrial automation systems.
Process control system:
Process control systems for the chemical, oil, gas and pharmaceutical industries.
These systems require high-precision, high-reliability power modules to support the monitoring and control of key production process variables such as temperature, pressure, flow and level.
Modular design:
3500/15E 164499-01 The power module adopts a modular design for easy installation, replacement, and maintenance.
This design makes the application of power modules in industrial automation and control systems more flexible, and can be configured and expanded according to actual needs.
Redundant configuration:
The power module supports redundancy. If one power module fails, the standby power module automatically takes over the work to ensure system continuity and reliability.
This feature is particularly important in critical applications, such as power production, chemical production and other systems that require 24 hours of uninterrupted operation.
Efficient conversion:
The 3500/15E 164949-01 power supply module has an efficient power conversion capability, capable of converting a wide range of input voltages to those required by other 3500 modules.
This helps improve the overall efficiency of the system, reducing energy consumption and operating costs.
In summary, 3500/15E 164949-01 power module with its stable performance, flexible modular design, efficient power conversion capability and support for redundant configuration and other characteristics, in the field of industrial automation, process control system is widely used.
