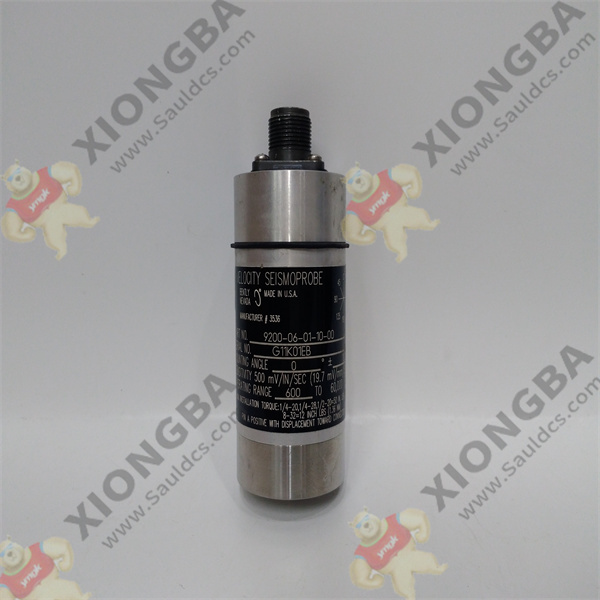

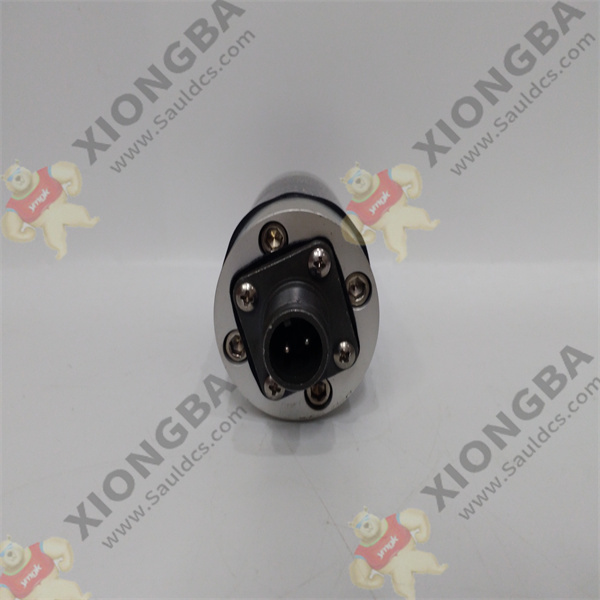

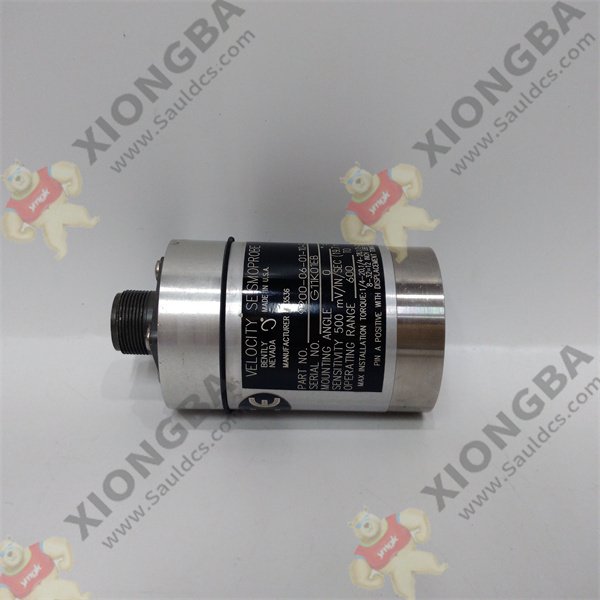

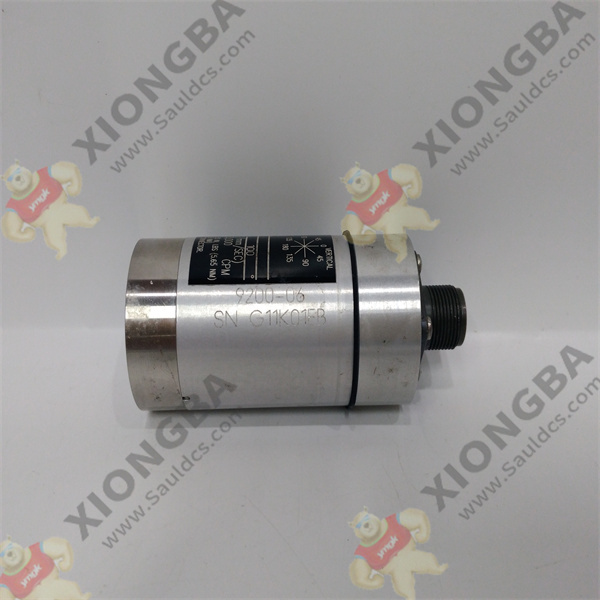

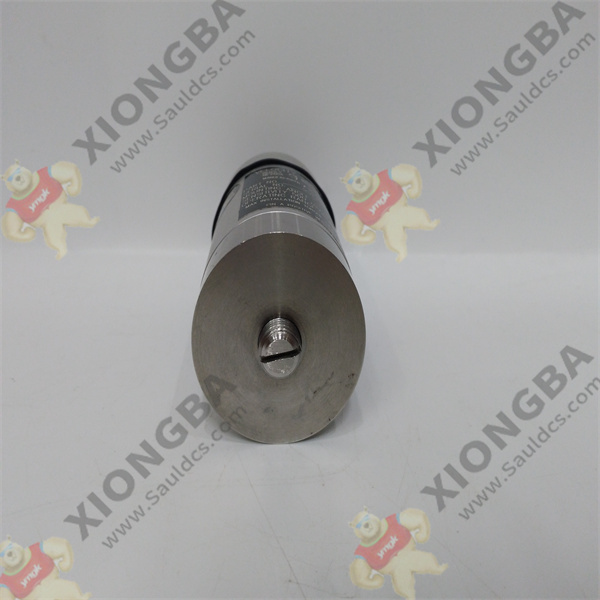

9200-06-01-10-00 Bently Nevada 9200 watt vibration probe

Description

Technical Specifications for 9200-06-01-10-00

The Bentley Nevada speed sensor system measures absolute (relative to free space) vibration of a bearing box, housing, or structure. The two-wire system consists of a sensor, a cable, and an optional speed-to-displacement converter. Bently9200 series speed sensors are two-wire structures using moving coil technology to provide voltage output directly proportional to the vibration speed of the sensor. Unlike solid speed sensors, moving coil sensors are less sensitive to impact or pulse excitation, making them a better choice for applications. In addition, they make portable measurement applications more convenient because they do not require an external power supply. High performance in casing speed measurement, more solid structure. A variety of connection cables can be used to connect the 9200 sensor to other instruments or speed – to – displacement converters. These cables are in 300 mm (1 ft) increments, with or without stainless steel sheathed. There are two types of speed-to-displacement converters (VDCS) to choose from: 9513: used with 9200 and 74712 sensors. The Bently 9200 is a two-wire sensor suitable for continuous monitoring or periodic measurement with test or fault diagnosis instrumentation. The 9200 has excellent corrosion resistance and requires no additional protection.

Cable connection Standard cable 9571 2-core twisted pair, 22 AWG (0.5 mm2) shielded cable, one end is equipped with a 2-socket moistureproof female connector, and the other end is equipped with a terminal lug. (for monitor or VDC); 84661 2-core twisted pair cable, shielded 22 AWG (0.5 mm2) armored cable, with 2-socket moistureproof Yin connector at one end and terminal lug at the other end. (for monitor or VDC); 9755 2-core shielded 22 AWG (0.5 mm2) cable with 2-pin female connectors at both ends. Connect 9200 or 74712 sensors to Bentley Nevada test assembly); 83968 2-CORE SMOOTH CABLE WITH 2-pin shaft CONNECTOR AT one end AND COAXIAL CONNECTOR AT THE OTHER END (FOR INSTRUMENTS WITH BN connector input recepTACLES).

Supporting common cable 9571-17, cable 84661-17, cable 84661-20

Sensitivity: when properly terminated and positioned at the calibration Angle

, 20 mV/mm/s (500 mV/in/s) ±5% at 100 Hz (6,000 CPM) and 25 mm/s (1 in/s) ±5% from zero to peak at 100 Hz (6,000 CPM)

Frequency response: from minimum operating frequency (see order information) to 1 kHz (60,000 CPM); Typical values range from +0 to ±3dB

Impact resistance: withstand 50 g peak maximum acceleration

Transverse sensitivity: ±10% Max.

Lead length: Up to 305 m (1,000 ft) between Seismoprobe® and Bentley 3500 vibration monitor. Frequency decay as length increases.

Height: Typical value 102 mm (4 in) (depending on connector option)

Diameter: Typical value 41 mm (1.6 in)

Weight: Typical value 480 g (17 Ounces)
