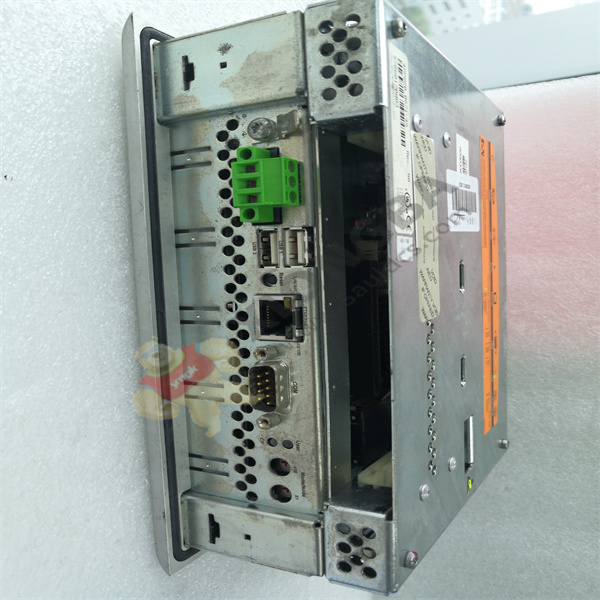

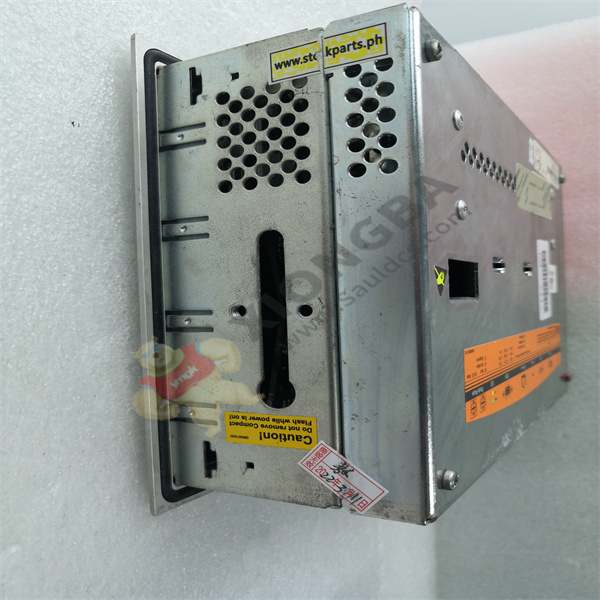

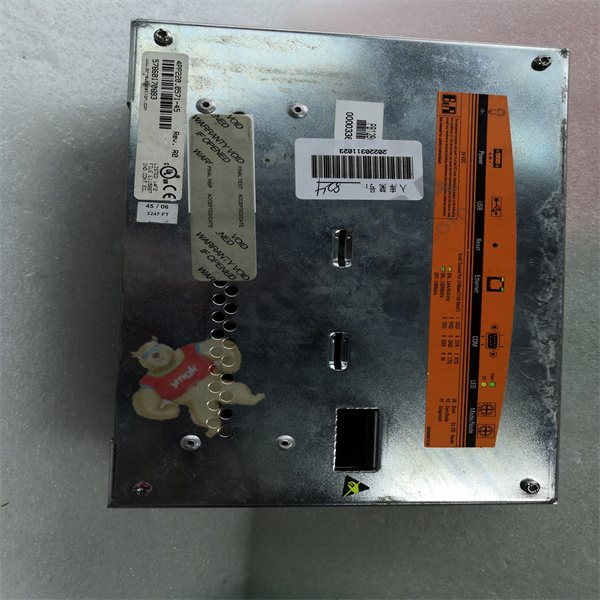

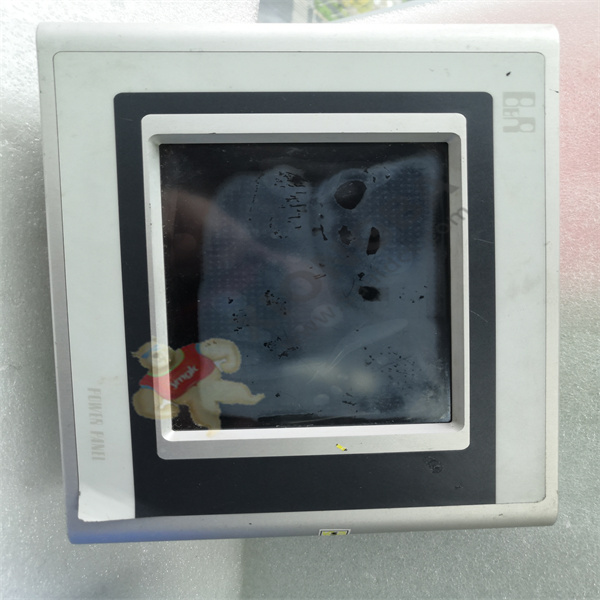

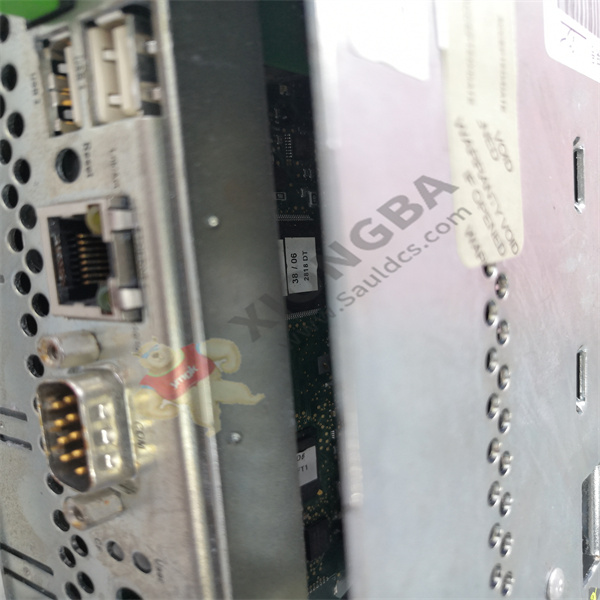

4PP220.0571-65 B&R Power Panel PP220 5.7″ QVGA color LC-display with touch screen

4PP220.0571-65 B&R Power Panel PP220 5.7″ QVGA color LC-display with touch screen

sales@xiongbagk.cn

Brand:B&R

Item NO.:4PP220.0571-65

Product ID:4PP220.0571-65

Payment:T/T

Product Origin:USA

Condition: in stock

Warranty: 18 months

Description:Power Panel PP220 5.7″ QVGA color LC-display with touch screen

Power Panel PP220 5.7″ QVGA color LC-display with touch screen (resistive); 1 aPCI slot; 64 MB SDRAM; 256 kB SRAM;

Category: Tags:

Description

4PP220.0571-65 B&R Power Panel PP220 5.7″ QVGA color LC-display with touch screen

Xiamen Xiongba Electronic Commerce Co. LTD is a World-Wide international Business Export Trade company by wholesale and Retail. We focus on Electronic & Industry Control & Network Products Area from Year 2006. Our Main Clients from North America, Europe, Middle East, South America and Asia – Countries: United States, UK, France, Spain, Mexico, Finland, Russia, Brazil, UAE, Canada, Germany, Italy, Peru, Sri lanka, India, Thailand, Vietnam, Singapore, Malaysia.

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

LEDs Power/User, CF
Battery
Type Renata 950 mAh
Service life 4 years
Removable Yes, accessible from the outside
Backup capacitor
Buffer time 10 min
Variant Lithium Ion
Power button No
Reset button Yes
Certifications
CE Yes
UL cULus E115267
Industrial control equipment
Controller
Bootloader Automation Runtime
Processor
Type Geode SC2200
Clock frequency 266 MHz
L1 cache 16 kB
L2 cache
Expanded command set MMX technology, streaming SIMD extension
Floating point unit (FPU) Yes
Flash 2 MB (for firmware)
Cooling Passive via heat sink
Mode/Node switches 2, 16 digits each
Watchdog SMC
Real-time clock
Accuracy At 25°C: typ. 10 ppm (1 seconds) per day
Battery-backed Yes
Power failure logic
Controller SMC
Buffer time 10 ms
Graphics
Controller Geode SC2200
Memory 4 MB shared memory (reserved by main memory)
SRAM
Size 256 kB
Battery-backed Yes
Display
Type Color LCD
Diagonal 5.7″ (144 mm)
Colors 256
Resolution QVGA, 320 x 240 pixels
Contrast 40:1
Viewing angles
Horizontal Direction R / Direction L = 40°
Vertical Direction U = 40°/ direction D = 50°
Backlight
Brightness 150 cd/m²
Half-brightness time 50,000 h
Filter glass
Transmittance
Anti-reflective coating
Touch screen
Type Gunze
Technology Analog, resistive (Gunze)
Controller Hampshire, serial, 12-bit
Transmittance 84%
Interfaces
COM1
Type RS232, modem-capable, not electrically isolated
Variant 9-pin DSUB plug
UART 16550-compatible, 16-byte FIFO
Max. baud rate 115 kbit/s
CompactFlash slot 1
Type Type I
USB
Quantity 2
Type USB 1.1
Variant Type A
Transfer rate Low speed (1.5 Mbit/s), full speed (12 Mbit/s)
Current-carrying capacity Max. 500mA per connection
Ethernet
Quantity 1
Controller MacPhyter DP83816
Transfer rate 10/100 Mbit/s
Max. baud rate 100 Mbit/s
Keys
Function keys No
Soft keys No
System keys No
Service life
Slots
aPCI slots 1
Electrical properties
Nominal voltage 24 VDC ±25%
Bleeder resistance ≥ 47 kΩ
Inrush current Max. 20 A for < 1 ms
Power consumption  Typ. 12 W, max. 17 W
Galvanic isolation Yes
Operating conditions
Degree of protection per EN 60529 IP20 back side (only with installed CompactFlash card)
IP65 / NEMA 250 type 4X, dust and sprayed water protection (front side)
Ambient conditions
Temperature
Operation 0 to 50°C
Storage -20 to 60°C
Transport -20 to 60°C
Vibration
Operation (continuous) 2 to 9 Hz: 1.75 mm amplitude / 9 to 200 Hz: 0.5 g
Operation (occasional) 2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Storage 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Transport 2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock
Operation 15 g, 11 ms
Storage 30 g, 15 ms
Transport 30 g, 15 ms
Elevation
Operation Max. 3000 m
Mechanical properties
Housing
Material Metal
Front
Frame Naturally anodized aluminum
Design Gray
Panel overlay
Material Polyester
Light background color Similar to Pantone 427CV
Dark border color around display Similar to Pantone432CV
Gasket Flat gasket around display front
Dimensions
Width 212 mm
Height 156 mm
Depth 76 mm
Weight 1700 g
4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

4PP220.0571-65

Power Panel PP220 5.7″ QVGA color LC-display with touch screen (resistive); 1 aPCI slot; 64 MB SDRAM; 256 kB SRAM; Compact Flash slot (type I); ETH 10/100; RS 232; 2xUSB; battery; metal housing, IP 65 protection (front side); 24 VDC (screw clamp 0TB103.9 or cage clamp 0TB103.91 must be ordered separately).

ayment:

bank transfer or Escrow or Paypal or Western Union.
we accept USD and RMB payment both.

Leadtime:

some stock parts can ship out within 3-5days. Some is 3-4weeks for booking.

Main business:

①ABB AC800M series modules, industrial robot spare parts dsqcseries, Bailey infi90,800xa, advantocs with master software, with mod300 software advantocs, freelance-distributed control system of process industry,

Symphony Melody, Sattocs, Symphony DCI System Six, Harmony/Infi90, Security System

② CPU module of ②Schneider 140 series products

③General electric series products IC693 IC695 IC697 IC698

Relay protection SR469 start SR369 start SR489 start SR750 start

Is200/is215/is220/is420/ds200/ds215/VMI VME beginning 7750 7807

④Ticonex series products 3721,3503,4351B,3625,3009.

⑤Bently (Bentley) 3500 series big card small card 1900 series power supply module

3500/15 3500/20 3500/22M 3500/42M 3500/25 3500/32 3500/53

⑥Allen-Bradley (AB, USA) series products 1394, beginning 2711, beginning 1756,1747, etc

⑦ EMERSON /Westinghouse series products OVATION system, WDPF system and MAX0 system spare parts.

DELTAV DELTAV VE3008/CE3008/SE3008/VE3007/VE3006SE4006P2

⑧Foxboro: I/A Series system, FBM (field input/output module) FCP270/FCP280/FBM201…FBM242 for sequence control, ladder logic control, accident recall processing, digital-analog conversion, input/output signal

processing, data communication and processing, etc.

⑨Siemens: Siemens MOORE, Siemens Simatic C1, Siemens CNC system, etc.

Attending bosch rexroth (bosch rexroth): Indramat, I/O module, PLC controller, drive module, etc.

Motorola: MVME 162, MVME 167, MVME5500, MVME6100 and other series.

贝加莱ACOPOS伺服驱动器8V1045.00-2

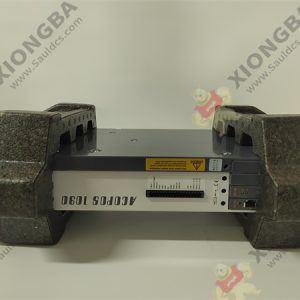

贝加莱ACOPOS伺服驱动器8V1090.00-2
