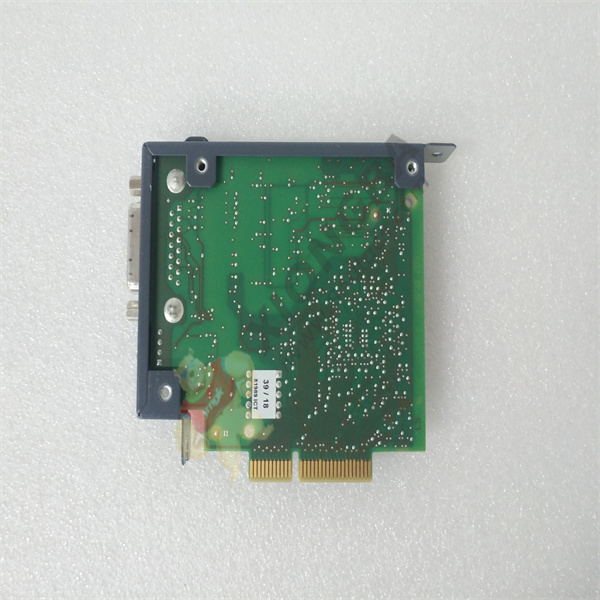

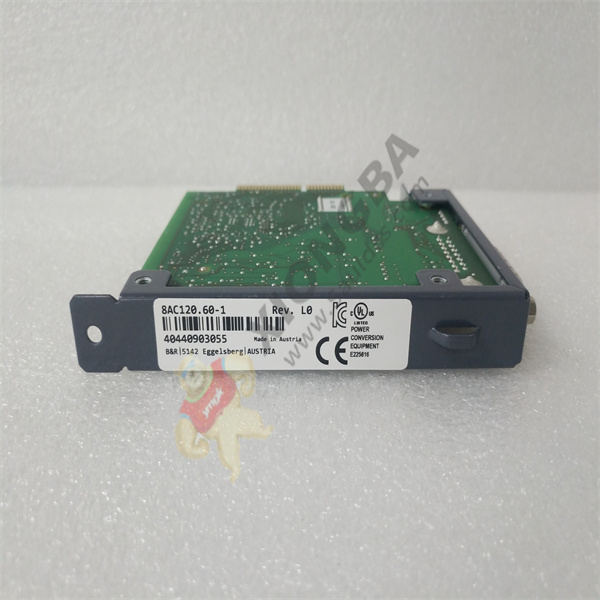

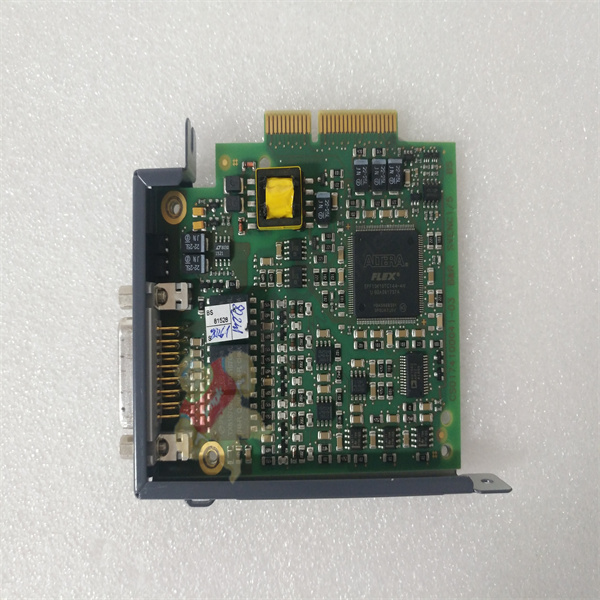

Name: 8AC120 B&R ACOPOS plug-in module, CAN interface
Brand: GE
Availability: InStock

Description

8AC120 B&R ACOPOS plug-in module, CAN interface

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

EnDat 2.1 encoder interface for installation in ACOPOS servo drives
Encoder monitoring
Also suitable for evaluating simple incremental encoders with sinusoidal input signal

ACOPOS plug-in module, EnDat encoder and sine incremental encoder interface

Module type	ACOPOS plug-in module
B&R ID code	0x0FCC
Slot	Slots 2, 3 and 4
Power consumption
Depends on connected encoder	Yes
E0 … EnDat single-turn, 512 lines	Max. 2.3 W
E1 … EnDat multi-turn, 512 lines	Max. 3.1 W
E2 … EnDat single-turn, 32 lines (inductive)	Max. 3.1 W
E3 … EnDat multi-turn, 32 lines (inductive)	Max. 3.1 W
E4 … EnDat single-turn, 512 lines	Max. 2.4 W
E5 … EnDat multi-turn, 512 lines	Max. 2.7 W
E8 … EnDat single-turn, 16 lines (inductive)	Max. 2.9 W
E9 … EnDat multi-turn, 16 lines (inductive)	Max. 3.1 W
EA … EnDat single-turn, 32 lines (inductive)	Max. 2.7 W
EB … EnDat multi-turn, 32 lines (inductive)	Max. 3.0 W
Certifications
CE	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes

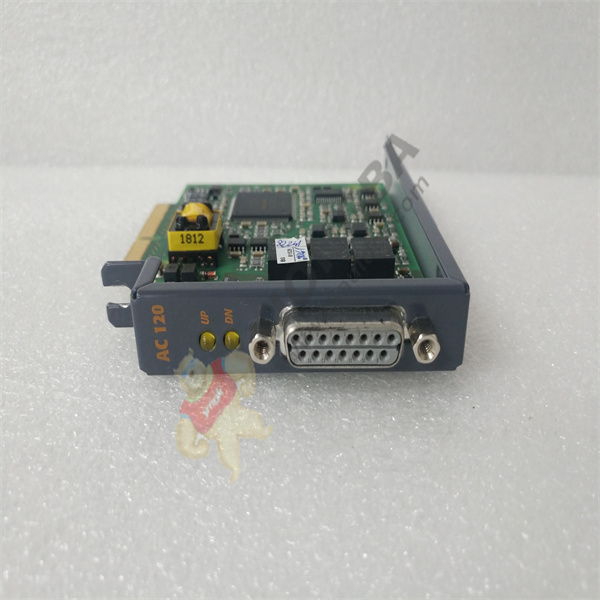

Encoder inputs

Quantity	1
Module-side connection	15-pin female DSUB
Status indicators	UP/DN LEDs
Electrical isolation
Encoder – ACOPOS	No
Encoder monitoring	Yes
Max. encoder cable length	50 m
Encoder power supply
Output voltage	Typ. 5 V
Load capacity	250 mA
Sense lines	2, compensation of max. 2x 0.7 V
Sine/Cosine inputs
Signal transmission	Differential signals, symmetrical
Signal frequency (-3 dB)	DC up to 300 kHz
Signal frequency (-5 dB)	DC up to 400 kHz
Differential voltage	0.5 to 1.25 V_ss
Common-mode voltage	Max. ±7 V
Terminating resistor	120 Ω
Resolution	16384 * Number of encoder lines
Accuracy	–
Reference input
Signal transmission	Differential signal, symmetrical
Differential voltage for low	≤-0.2 V
Differential voltage for high	≥+0.2 V
Common-mode voltage	Max. ±7 V
Terminating resistor	120 Ω
Serial interface
Signal transmission	Synchronous
Protocol	RS485
Baud rate	625 kbaud

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C

8AC120
