Description

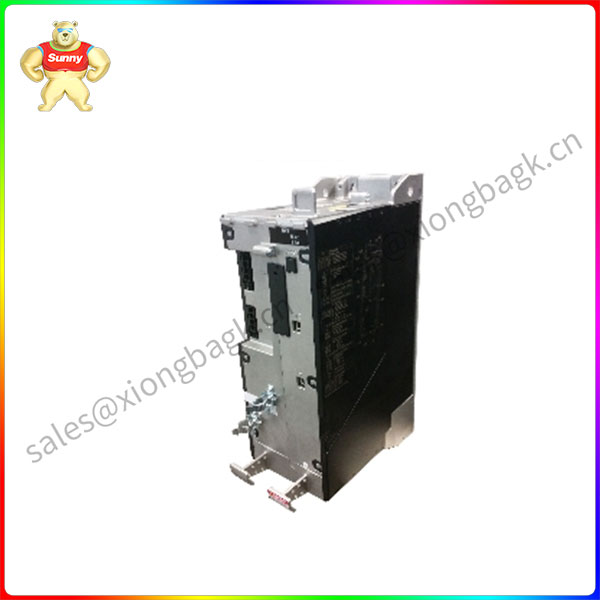

8EI8X8HWT10.0700-1 servo drive
Product Description
The 8EI8X8HWT10.0700-1 is a servo drive manufactured by B&R and belongs to the ACOPOS P3 series. This product has the following features:
Product characteristics
Model: 8EI8X8HWT10.0700-1
Brand: B&R
Voltage input: 3x 200-480 VAC
Current: 8.8A
encoder interface: 1 digital multi-standard encoder interface per axis
Installation mode: wall hanging
connector kit: 2-row connector set
Contains a cover plate: Yes
Integrated brake resistor or not: Yes
Product parameter
Current consumption: 1.2A + braking current
Number of motor connections: 2
Continuous power per motor connection: 4 kW
Continuous current per motor connection: 8.8A
Brake resistance: Integrated 7 kW / 25 kW
Operation input: 2
Number of encoder interfaces: 2
Encoder type supported: EnDat 2.2
Trigger input: 2
Temperature sensor connection: 2
Operating temperature: 5 to 40°C
Storage temperature: -25 to 55°C
Dimensions: Width 66 mm, height 374 mm, depth 258.5 mm (including front cover)
Weight: 4 kg
Application field
Industrial robots: In automated production lines, servo motors can be used to precisely control the joint movements of robots, providing high dynamic response and precise position control.
CNC machine tools: Servo motors are used in the field of machine tools to control the position and speed of the tool, ensuring the efficiency and accuracy of the machining process.
Semiconductor equipment: In the semiconductor manufacturing process, servo motors are used to precisely control the handling and positioning of wafers to ensure the accuracy of the production process.
Medical equipment: In medical equipment, servo motors are used to control surgical robots, imaging equipment and experimental instruments, etc., to provide stable and reliable motion performance.
Aerospace: Servo motors are used in the aerospace field to control the steering gear of aircraft, navigation instruments and rocket adjustment systems, etc., to ensure navigation safety and accurate control.
