Description

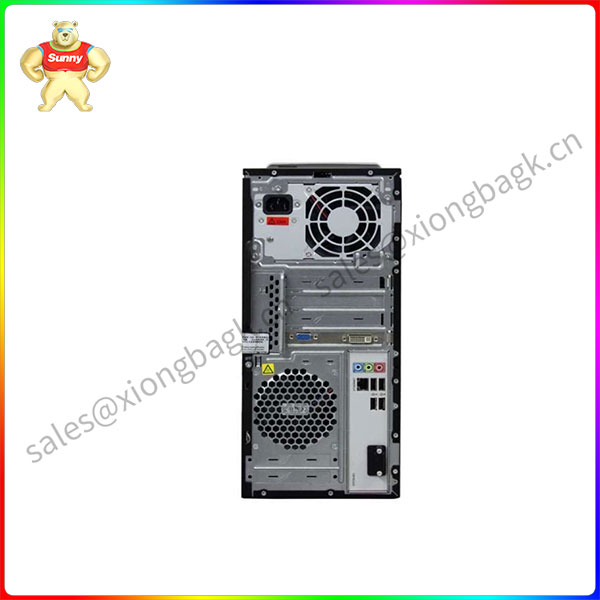

P92204760700 H92 workstations
Product Description
The Model H92 workstations can be used with Foxboro Evo™ Control Core Services software as well as Foxboro Evo Control Software, and can also provide a platform for Foxboro®, third-party, and user-written applications.
As multipurpose workstations running the Windows 7 64-bit operating system, these workstations support execution of system applications, data communications for a broad range of applications, file serving capabilities, and display of graphics and text. It also interfaces with corporate networks at a local or worldwide level.
These workstations support a mouse or optional trackball, an alphanumeric keyboard, up to four USB annunciator or annunciator/numeric keyboards, and one to four monitors. The H92 workstations also support an optional USB touchscreen (purchased separately with the monitor) and an optional USB speaker set (purchased separately).
These workstations feature up to two internal serial ATA hard disk drives, which may be optionally configured as RAID1, and comes with 4 GB of ECC RAM memory (expandable to 12 GB). The processor supports an internal DVD+RW drive and an optional external USB floppy drive that may be purchased separately.
Client/server communication is accomplished using the TCP/IP networking protocol with the integrated Ethernet network port or optional Ethernet network interface cards (NICs).
As indicated by the CE logo, the Model H92 workstations conform to the applicable European Union directives.
Workstation Security
Foxboro Evo workstations support optional product features to allow customers to meet plant requirements for enhanced workstation security.
Plant requirements for enhanced Foxboro Evo workstation security can be met through a combination of new product security enhancements as well as implementing best security policies, practices, and procedures.
Foxboro Evo workstation enhanced product security requirements are supported in two broad categories, namely, workstation software including passwords and workstation platform hardening.
H92
Product parameter
Workstation software:
Changeable log-on passwords
Individual user passwords
Password lock-out after a user-configurable number of unsuccessful log-in attempts and secured mechanisms to reset login
Password aging that requires password change on a periodic basis
Password support of alphanumeric and symbol
characters as per Microsoft convention
Password file protection
User accounts and McAfee firewalls for Microsoft
Windows 7-based workstations managed from a central location through Microsoft Domains and Active Directory
User account creation, deletion and modification tracking
User logon/ logoff tracking
Least privilege file and account access
Necessary system services running in non-admin accounts where possible
Security patches from software suppliers including Microsoft supported including patch status reporting
Anti-virus software including malware protection supported as well as Anti-Spyware software support.
Workstation platform hardening:
Unnecessary services, software, and programs removed
Unneeded software ports disabled
The McAfee Host Intrusion Prevention (HIP, described below) to protect the use of software ports that may be used depending on the software configuration
Documentation on how to re-enable services and ports where required by special circumstances
Secure BIOS changes.
Application field
McAfee® Software Packages
Additional security enhancements are provided through the following McAfee® software packages. VirusScan with AntiSpyware Enterprise
The VirusScan with AntiSpyware Enterprise packages check the Model H92 workstations for viruses and spyware continually. Virus and antispyware signature files are regularly updated by McAfee.
As well, these products’ policies and options can be managed and distributed from the ePO console.
Host Intrusion Prevention (HIP)
Host Intrusion Prevention proactively blocks zero-day and known attacks, and protects against unauthorized viewing, copying, modifying, and deleting of information and the compromising of system and network resources and applications that store and deliver information.
The Host Intrusion Prevention (HIP) package provides features such as:
a configurable firewall, to control access to TCP and UDP software ports
application blocking, to allow known applications to run (referred to as “whitelisting”) or to block specific applications (such as “blacklisting”)
