Name: DS200LDCCH1ANA GE
Brand: GE
Availability: InStock

Description

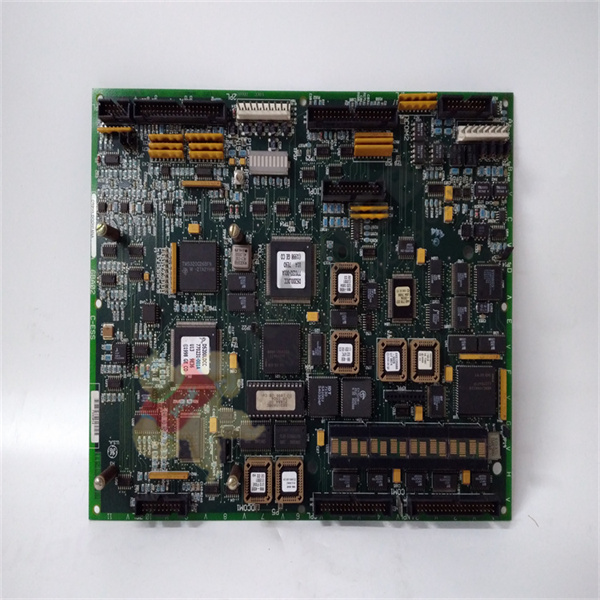

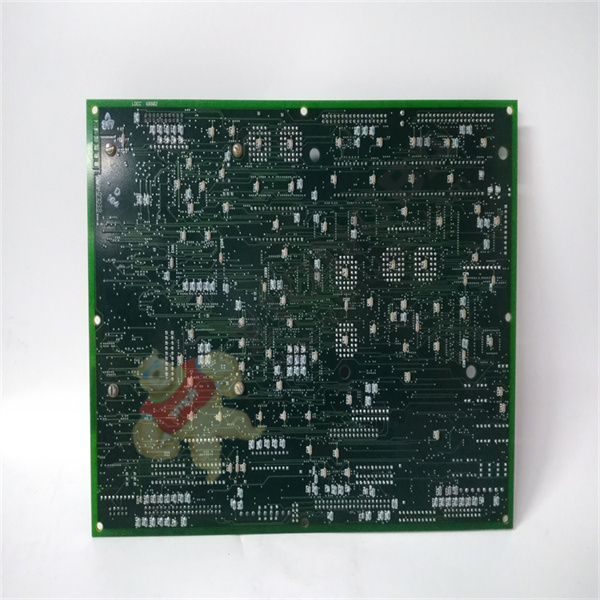

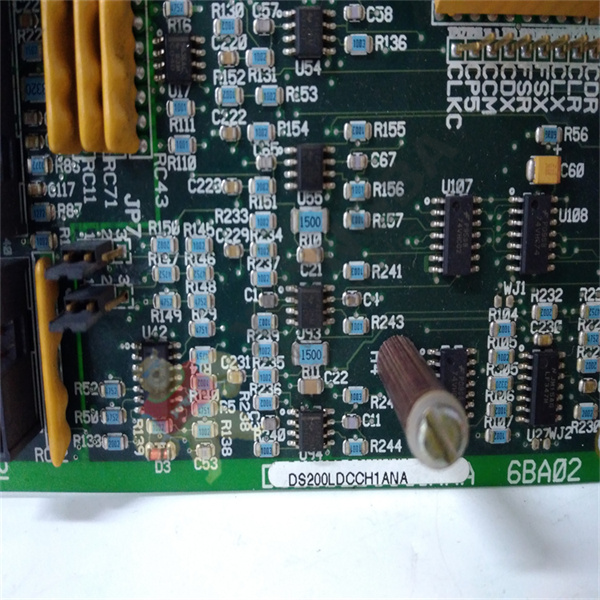

DS200LDCCH1ANA GE Drive Control/LAN Communications Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

Instruction Manual	GEI-100216
Manufacturer	GE General Electric
Part Number	DS200LDCCH1ANA
Product Type	Drive Control/LAN Communications CD/CC Drive Board
Series	Mark V

DS200LDCCH1ANA

The GE Drive Control/LAN Communications Board DS200LDCCH1ANA features multiple microprocessors that provide control for the drive, motor, and I/O functions. It also provides control for the LAN network. The GE Drive Control/LAN Communications Board DS200LDCCH1ANA is populated with four microprocessors and each microprocessor is assigned a separate function. One microprocessor provides drive control processing. One microprocessor provides motor control processing. One microprocessor provides co-motor processing. And one microprocessor provides LAN control processing.

If the board is not functioning properly or seems to be providing less than optimal performance, you might want to perform a soft reset on the board. A hard reset is when electric power is interrupted and the board must restart. When possible, this should be avoided and it should only occur if the drive malfunctions or a trip condition occurs that causes the drive to shutdown unexpectedly. For example, if an overload condition occurs the drive will automatically shutdown to protect the components and the motor.

The better option to restart the board is a soft reset. This is when power remains present in the board and is used to clear faults. One method of performing a reset is to press the Reset button on the board. Only a qualified individual should do this because power is present in the drive and there is a risk for electric shock or burn. It requires the servicer to reach into the board cabinet and press the Reset button. Press the button for about 5 seconds, then release the button.

Frequently Asked Questions about DS200LDCCH1ANA

What does the drive control on DS200LDCCH1ANA do?

The drive control on DS200LDCCH1ANA provides analog-to-digital and digital-to-analog signal conversion, and voltage-controlled oscillator inputs. DS200LDCCH1ANA’s DCP includes built-in I/O peripherals and a direct memory access controller.

What does DS200LDCCH1ANA’s interface look like?

DS200LDCCH1ANA has a 16-character digital display and connector KPPL on DS200LDCCH1ANA’s interface.

How many microprocessors does DS200LDCCH1ANA have?

DS200LDCCH1ANA has four microprocessors for processing control, application, and I/O functions. DS200LDCCH1ANA’s microprocessors are a DCP, MCP, CMP, and LCP.

What manual can I use with DS200LDCCH1ANA?

The manual you can use with DS200LDCCH1ANA is Manual GEI-100216. This manual is the GE Motors and Industrial Systems Drive Control/LAN Communications Board Manual. This manual does not cover all DS200LDCCH1ANA equipment and the installation, operation, and maintenance of DS200LDCCH1ANA, but the manual covers general DS200LDCCH1ANA information.
