DS200RTBAG2AFB GE RTBA Relay Terminal Board
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.
Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、
RexrothAnd other imported industrial parts.
DS200RTBAG2AFB
DS200RTBAG2AFB
DS200RTBAG2AFB
DS200RTBAG2AFB

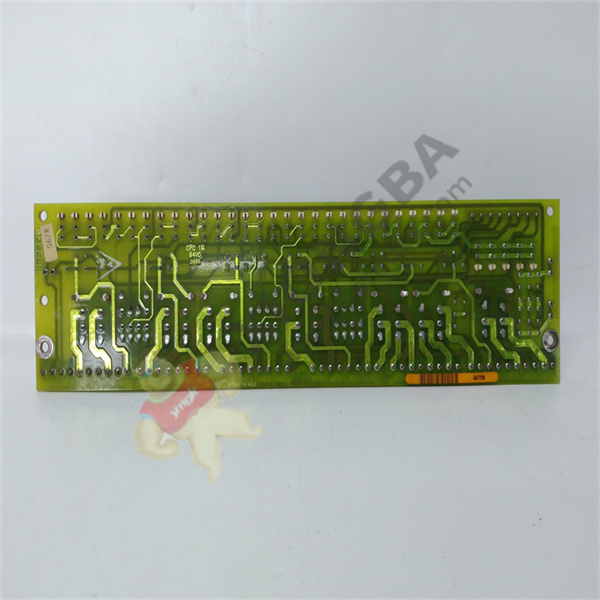

DS200RTBAG2AFB is a relay terminal board (RTBA) designed for General Electric’s Mark V board series. This board can be used in applications across a number of GE brand drives and exciters. By installing this board into a drive cabinet an additional ten relays are provided to the user. Both the LAN I/O terminal and a remote user can drive the relays found on this board.

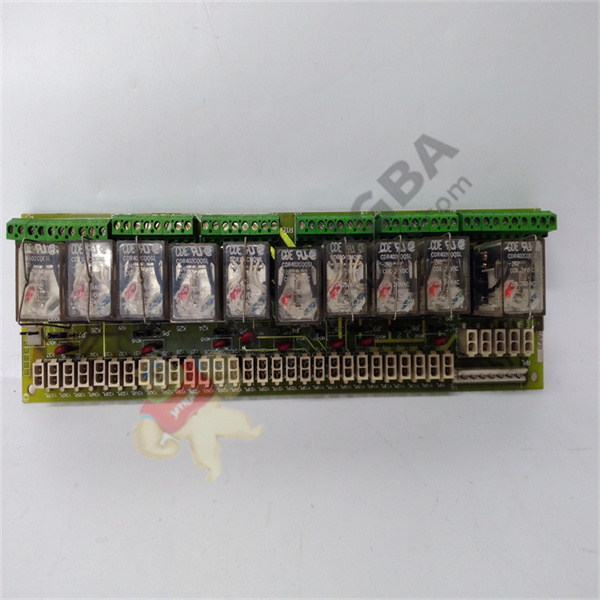

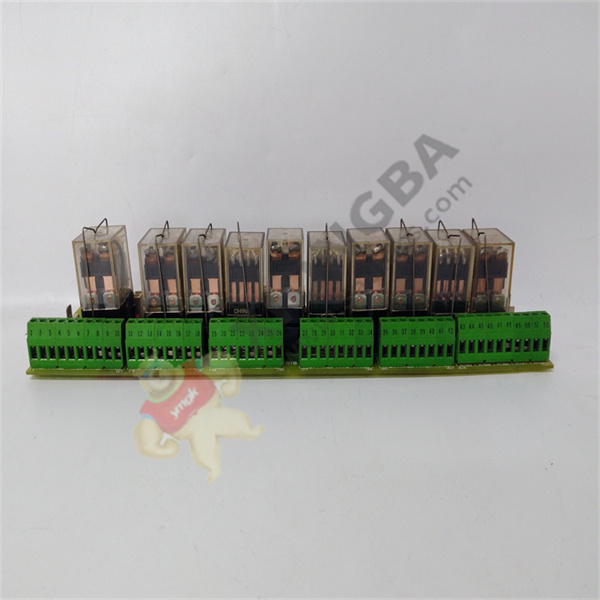

Locations K20 through K29 are the board positions for all onboard relays. DS200RTBAG2AFB includes two types of relays, DPDT and 4PDT. DPDT type comprises seven of the relays found on the card, including K20 through K26. These types feature two Form C contacts, with each contact rating 10A. K27 through K29 are the second relay type, 4PDT. Rather than two, 4PDT relays include four Form C contacts that each rate 1A. All ten of these points are protected by a 130 VAC metal oxide varistor (MOV). Each relay contains an internal 110 VDC coil that ensures they are operating properly. Should any relay stop functioning or break, the user can easily remove and replace all ten spots.
Provided parameters regarding installation and storage guidelines for DS200RTBAG2AFB should be followed. This will ensure the integrity of the board and the overall drive system. Both the device’s manual and datasheet give a detailed installation and wiring guide for this board. Members of the Mark V board series were originally provided technical support by the manufacturer, General Electric.
