DS200SDCCG1AEC GE

Description

DS200SDCCG1AEC GE Drive Control Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

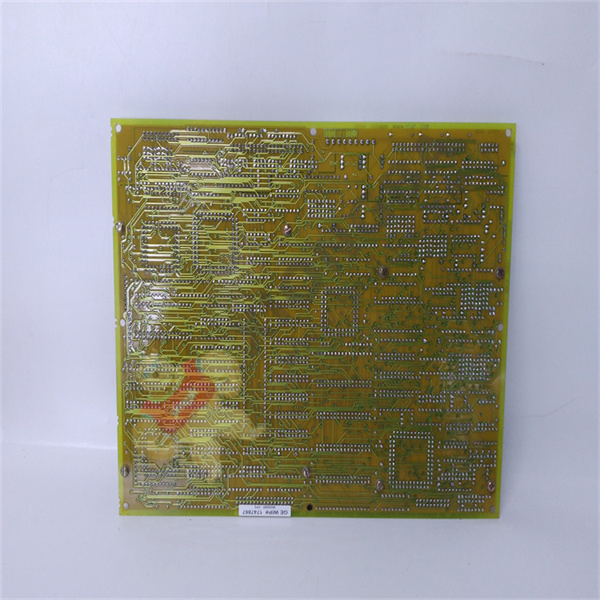

DS200SDCCG1AEC

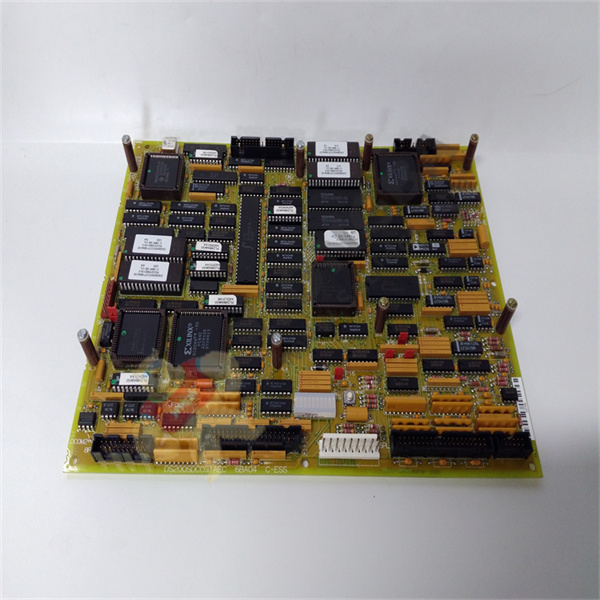

DS200SDCCG1AEC

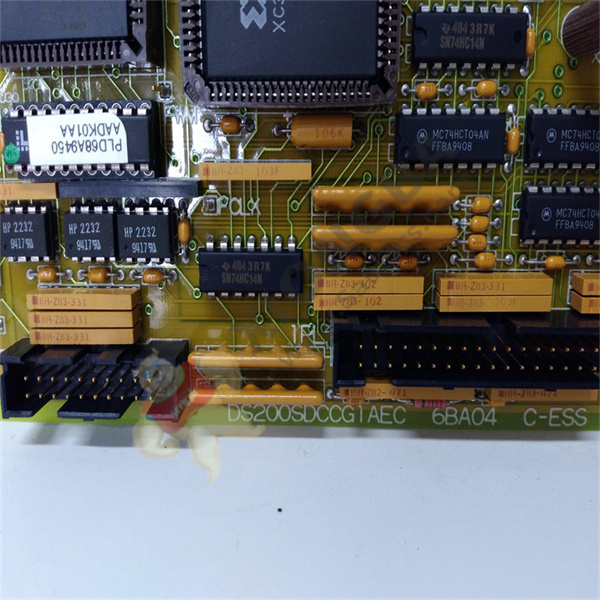

DS200SDCCG1AEC

DS200SDCCG1AEC

The GE Drive Control Board DS200SDCCG1AEC is the primary controller for the drive. The GE Drive Control Board DS200SDCCG1AEC is populated with 3 microprocessors and RAM that can be accessed by multiple microprocessors at the same time.

Several tools are available for you to troubleshoot the board, if a problem arises. First, open the cabinet door and view the LEDs on the board. The GE Drive Control Board DS200SDCCG1AEC is populated with ten LEDs that are arranged in a row on the board. When the LEDs flash in a sequence across the row, it means the board is operating without error. When the LEDs flash slowly, they indicate an error code from 1 to 399. When the LEDs flash faster, they indicate an error code between 400 to 1023.

Test points are available on the board. They are metal posts that you can probe with a tester to test the signal paths. This procedure can only be performed by a trained servicer and the testing equipment must be approved for the purpose and also must be calibrated for the task.

Another diagnostic tool you can use is the diagnostic tools available on the drive. The diagnostic tools are accessible from the control panel and they produce a detailed description of the performance of all the components in the drive. If a problem is found that originates on the board, you can resolve the issue and resolve it.

The diagnostics results can be downloaded from the drive to a laptop over a serial connection.

Frequently Asked Questions about DS200SDCCG1AEC

What is included in DS200SDCCG1AEC’s hardware?

DS200SDCCG1AEC has configurable hardware that must be set correctly for each application. DS200SDCCG1AEC has berg-type hardware jumpers with a JP nomenclature and DS200SDCCG1AEC has wire jumpers with a WJ nomenclature. Table 2 in the manual for DS200SDCCG1AEC, Manual GEI-100029, lists DS200SDCCG1AEC’s jumper descriptions and figure 3 in the manual is a layout diagram of DS200SDCCG1AEC, which displays the location of DS200SDCCG1AEC’s jumpers.

How do the faults on DS200SDCCG1AEC differ?

The faults on DS200SDCCG1AEC differ in display. Some fault codes on DS200SDCCG1AEC are displayed in BCD form while others are displayed in binary form on DS200SDCCG1AEC. Faults 1-399 on DS200SDCCG1AEC have a slow blink rate and faults 400-1023 on DS200SDCCG1AEC have a faster blink rate.

How do I reset DS200SDCCG1AEC?

You can reset DS200SDCCG1AEC in four different ways. You can reset DS200SDCCG1AEC by pressing the RESET pushbutton on DS200SDCCG1AEC. You can reset DS200SDCCG1AEC by applying +5 to +24 VDC to customer interface points on the STBA or NTB/3TB boards. You can reset DS200SDCCG1AEC by generating a reset through programmed software control. And you can reset DS200SDCCG1AEC by DS200SDCCG1AEC generating a reset through automatic internal hardware watchdog protection.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgyNote: Please follow the instruction manual of this product to install and debug, so as not to damage the product
