Name: DS200SDCIG2AHB GE
Brand: GE
Availability: InStock

Description

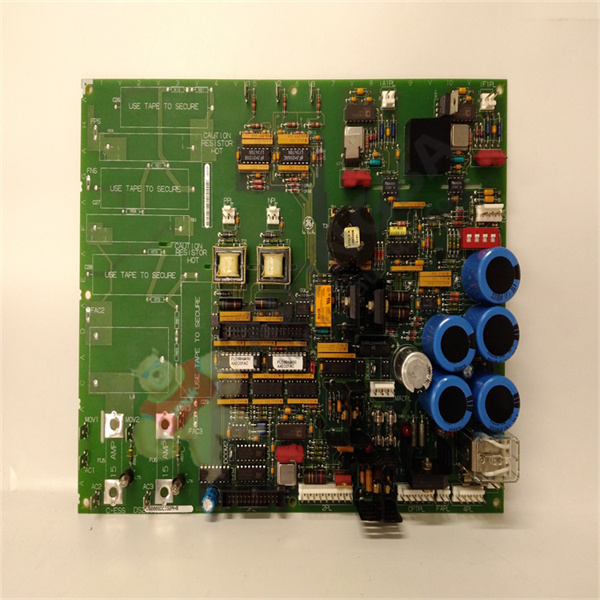

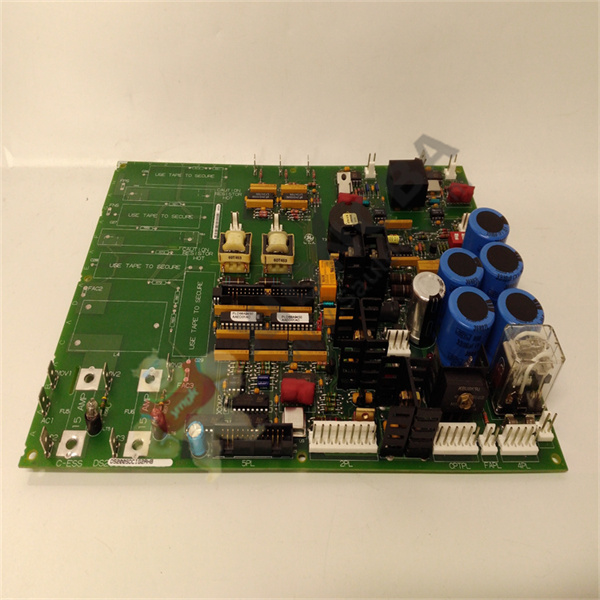

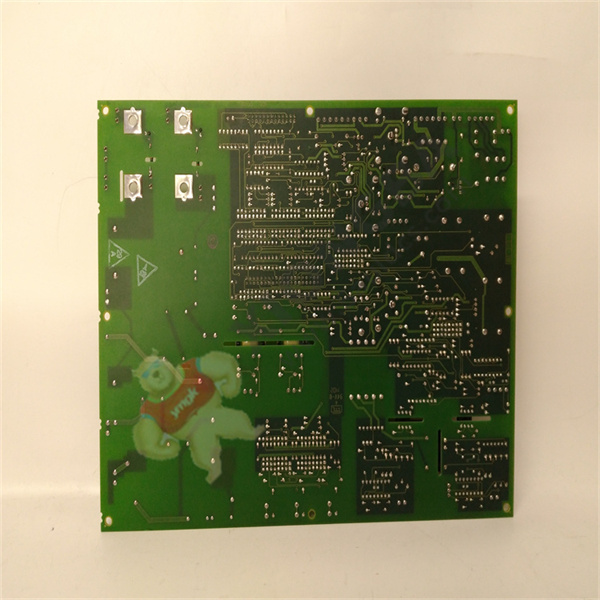

DS200SDCIG2AHB GE DC Power Supply and Instrumentation Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

Instruction Manual	GEI-100173
Manufacturer	GE General Electric
Part Number	DS200SDCIG2AHB
Product Type	SDCI DC Power Supply and Instrumentation Board
Series	Mark V

DS200SDCIG2AHB

The General Electric Direct Current Power Supply and Instrumentation Board DS200SDCIG2AHB serves as an interface to DC2000 model drives. The DS200SDCIG2AHB is prone to be damaged by static electricity. However, there are some general rules you can follow to avoid the damage caused by charges of static. Until you install the board keep the board in the static protective package and touch it on an unpainted metal surface, which could be the drive or other device or structure. Let it touch the metal surface for 2 seconds to let the static drain off the board.

Don’t keep the board outside of the static-protective package. Just place it directly in the drive to reduce the opportunity for static build up. Also, hold the board by the outside edges and never touch the components or the solder.

Removing the defective board requires a few necessary steps to in order to prevent electric shock, electric burn, or a safety hazard. Make sure that all current is removed from the drive before you touch any components inside the drive. Follow the shutdown procedure as established for your site and to verify that all current is removed, use a current tester.

Open the door on the drive to access the printed circuit boards, including the DS200SDCIG2AHB. You will notice that one board is blocking access to the DS200SDCIG2AHB. You can pull down two locking mechanisms to tilt forward the blocking board and gain access to the DS200SDCIG2AHB. Before you remove the board disconnect all cables.

Frequently Asked Questions about DS200SDCIG2AHB

What are the power supply circuits on DS200SDCIG2AHB?

DS200SDCIG2AHB has power circuits for +5 VDC, 4A; +/-15 VDC, 0.4A; +/-24 VDC, and 115 VAC, 0.4A.

What is the primary use for the DS200SDCIG2AHB manual?

The manual for DS200SDCIG2AHB, Manual GEI-100173, is a manual intended to help with replacement procedures for DS200SDCIG2AHB. The manual does not cover all details or variations in DS200SDCIG2AHB and the manual doesn’t provide all info on installing, operating, and maintaing DS200SDCIG2AHB, but the manual does provide some of that info and the manual will help you in general with DS200SDCIG2AHB.

What fuses does DS200SDCIG2AHB have?

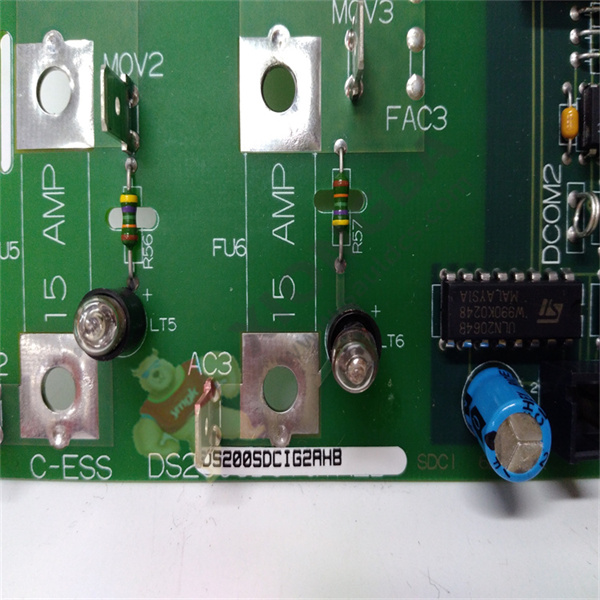

DS200SDCIG2AHB has fuses FU1-FU3, FU5, and FU6. You can find descriptions of these fuses on DS200SDCIG2AHB in Table 1 of the manual. Fuses on DS200SDCIG2AHB are associated with a light or LED. When a fuse blows on DS200SDCIG2AHB, the light turns on.

What type of jumpers does DS200SDCIG2AHB use?

DS200SDCIG2AHB uses Berg-type, or manually moveable jumpers identified by a JP nomenclature. The jumpers on DS200SDCIG2AHB are used for manufacturing test or customer options on DS200SDCIG2AHB.
