Name: DS215TCQAG1BZZ01A GE RST Analog I/O Board
Availability: InStock

Description

DS215TCQAG1BZZ01A GE RST Analog I/O Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

Instruction Manual	GEH-6195
Manufacturer	GE General Electric
Part Number	DS215TCQAG1BZZ01A
Product Type	Circuit Board and Firmware
Series	Mark V

DS215TCQAG1BZZ01A

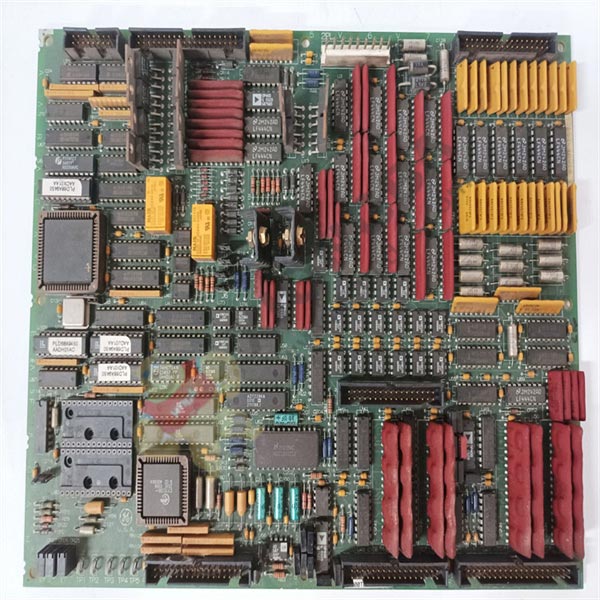

The GE RST Analog I/O Board DS200TCQAG1 contains six 34-pin connectors, two 40-pin connectors, and six jumpers. The board also has 6 LEDs. The LEDs are arranged in two rows with three LEDs in each row. When the board is installed in the drive, it is installed between other boards and the side of the GE RST Analog I/O Board DS200TCQAG1 is visible from the glass front of the board cabinet.

The LEDs are arranged so the operator can see them while the drive is in operation. The LEDs indicate the health of 6 functions of the board and they flash when activity takes place. To understand the purpose of each LED, you can read the information about the LEDs provided in the installation instructions that are supplied with the original board from the factory. The drive operator can at a glance ascertain the health of the board and the processing taking place.

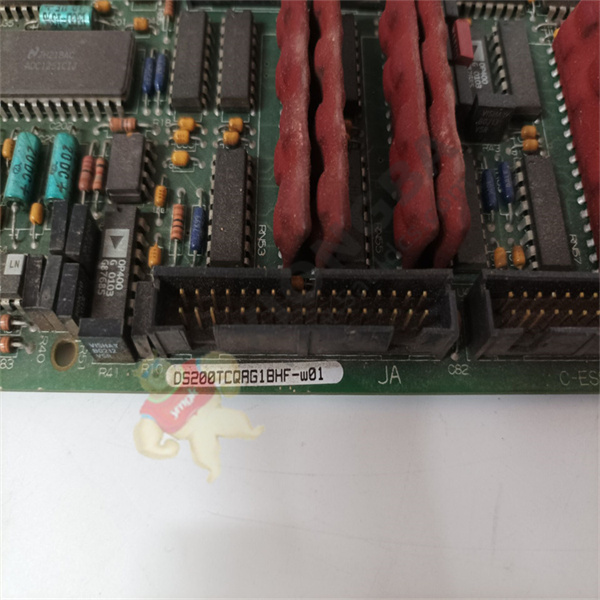

JA, JB, JD, JE, JG, and 3PL are the IDs assigned the 34-pin connectors. The IDs are printed on the surface of the board next to each connector. When you plan to replace the board, inspect the defective board while it remains in the drive and mark on the ribbon cables what the ID is of the connector it is attached to. It will speed up the installation of the new board because you’ll know immediately where to connect the 34-pin ribbon cables. Hold the ribbon cable by the connector where it attaches to the board to detach it.

Frequently Asked Questions about DS215TCQAG1BZZ01A

What types of inputs does DS215TCQAG1BZZ01A read?

DS215TCQAG1BZZ01A reads LVDT inputs. The first of the the redundant transducer inputs for VDC1 and VDC2 are also communicated to DS215TCQAG1BZZ01A in the < R > control processor by a dedicated ribbon cable.

What regulators are part of DS215TCQAG1BZZ01A’s software?

Digital control regulators are part of the I/O configuration software on DS215TCQAG1BZZ01A in each control processor in Mark V.

What happens to DS215TCQAG1BZZ01A when a fault suicide occurs on a Mark V?

When a current fault suicide is enabled on a Mark V, a relay on DS215TCQAG1BZZ01A will be de-energized and a pair of normally-closed contacts on DS215TCQAG1BZZ01A will short the output’s terminals together.

Where can I find the manual for DS215TCQAG1BZZ01A?

We can provide you with the manual for DS215TCQAG1BZZ01A. The manual to use with DS215TCQAG1BZZ01A is the Speedtronic Mark V Turbine Control Application Manual, Manual GEH-6195, and this manual covers application information for Mark V Speedtronic controllers and the manual provides specifics about DS215TCQAG1BZZ01A.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy

Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
