IC660ELB912G GE Genius I/O

Description

IC660ELB912G GE Genius I/O

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

IC660ELB912G

IC660ELB912G

IC660ELB912G

IC660ELB912G

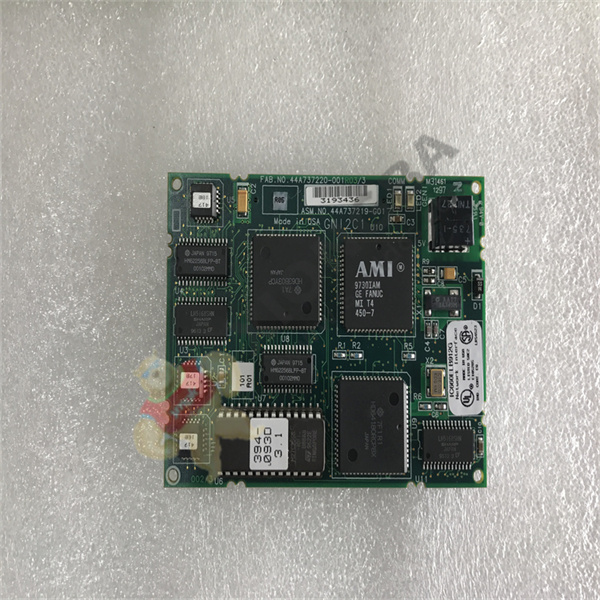

The IC660ELB912 is a µGENI Network Interface Board from GE Fanuc. It is designed to be a daughterboard in a user’s microprocessor system. Users can interface the µGENI and the motherboard in any CPU-type device capable of reading and writing to the general-purpose shared RAM on the µGENI. This device is known as the host.

Although the RAM interface is optimized for the IBM personal–computer bus, it is easy to adapt to various other CPU types. As it handles all data transfers between the host and the Genius I/O bus, the µGENI effectively frees up the host. This allows the host to control remote I/O. It does this by using the features of the Genius I/O, such as high reliability and noise immunity. Furthermore, the host can use the communication features of the Genius LAN to communicate with other hosts.

In a sense, the µGENI is a general-purpose controller, maintaining initialization tasks and managing faults for over 30 other bus devices. Each device controls an I/O and the µGENI keeps updated images of each one. It is also capable of communicating with other controllers through the use of Global Data, datagrams and Directed Control Data messages.

The µGENI has a range of intricate components on its single-printed circuit board.

It uses a 6303-serial interface microprocessor to write messages to the MIT chip. This chip manages the hardware interface to the bus and provides support functions. For example, it handles error checking, LED drivers and a timer function. A transmit/receive circuit works closely with the MIT and bus transmit and receive signals.

1. What is the supported communication protocol of the IC660ELB912?

The IC660ELB912 is designed to communicate over Genius I/O.

2. What is the current consumption rating of the IC660ELB912?

The IC660ELB912’s current consumption is 1.0 Ampere for a single channel PCIM and 1.5 Amperes on a dual-channel PCIM with 2 daughterboards installed.

3. What are the compatible PCIM modules for use with the IC660ELB912?

The IC660ELB912 is used as daughterboard of single-slot PCIM with catalog number (IC660ELB921) or dual channel PCIM with part number (IC660ELB922).

1. What is the communication speed supported by the IC660ELB912?

The IC660ELB912 supports 38.4K, 76.8K, 153.6K standard, or 153.6K extended baud rates.

2. Ho many devices does the IC660ELB912 capable of controlling?

The IC660ELB912 is capable of controlling up to 30 bus devices.

3. What is the host memory requirement of the IC660ELB912?

Each IC660ELB912 requires 16kbytes memory.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
