IC693CPU341 GE Single slot CPU module

Description

IC693CPU341 GE Single slot CPU module

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

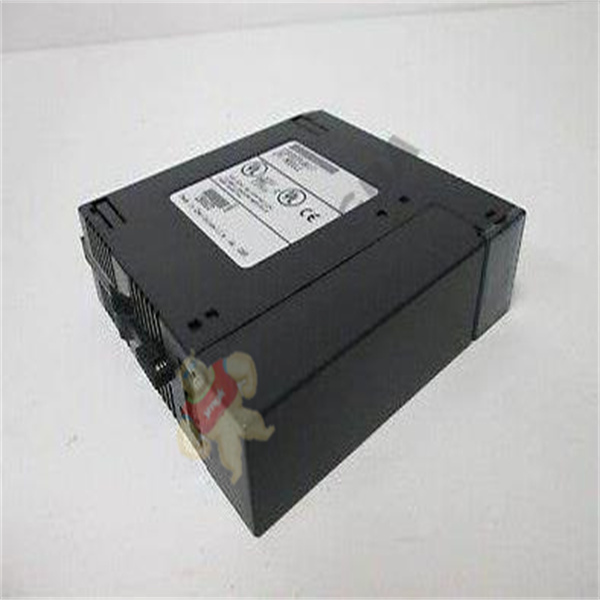

IC693CPU341

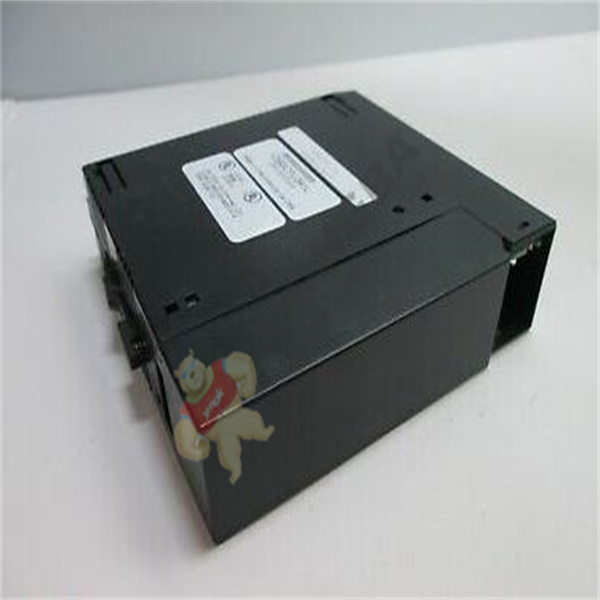

IC693CPU341

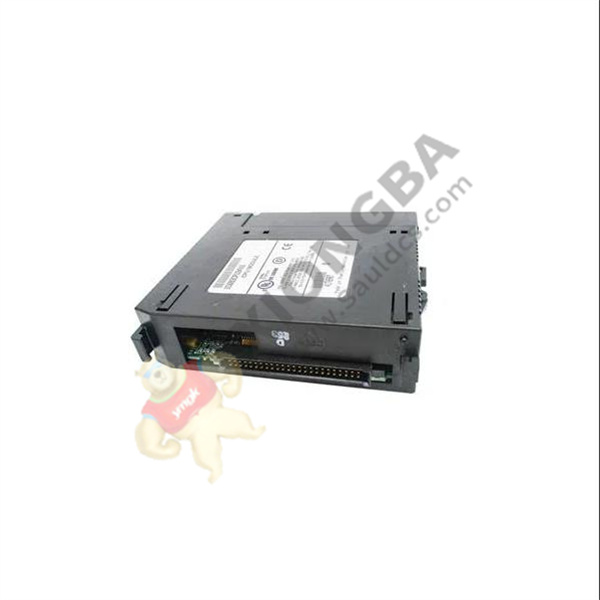

IC693CPU341

IC693CPU341

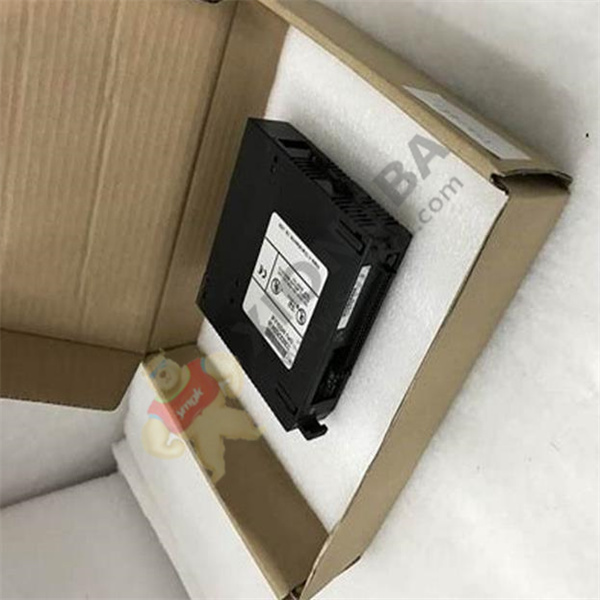

IC693CPU341

General: The IC693CPU341 module, a member of the GE Fanuc 90-30 Series, is a single slot CPU module which is equipped with 5 baseplates. It contains 4 remote and/or expansion baseplates in addition to the 1 CPU baseplate. It is equipped with an 80C188XL processor.

Power: It runs at 20 MHz and requires a load of 490 milliamps from the +5 VDC rated power supply.  The module operates at an ambient temperature range of 0 to 60 degrees Celsius (or 32 to 140 degrees Fahrenheit).

Memory: This CPU’s typical can rate is 0.3 milliseconds per 1K of logic (also known as Boolean contacts).  With a maximum user program memory of 80K bytes, the IC693CPU341 has a register memory (%R) of 9999 words; discrete global memory (%G) of 1280 bits, internal coils (%M) of 1024 bits, output (temporary) coils (%T) of 256 bits, and system status references (%S) of 128 bits (with %S, %SA, %SB, %SC having 32 bits each).

I/O: Analog inputs (%AI) and outputs (%AQ) is 1024 and 256 words respectively.  The discrete input (%I) and output (%Q) are 512 each. It has 16 words (%SR) system registers which are used for reference table viewing only and cannot be referenced in user logic program.

Specific: This CPU has a singular built-in serial port, which requires a connector to the PLC power supply used in the system. The port supports SNP/SNP-X slave protocols.  The IC693CPU341 has PCM/CCM compatibility, although, it does require a CMM module in order to support SNP/SNP-x master, CCM, or RTU slave support. It also requires a PCM module to support RTU master.

LAN: IC693CPU341 has a Local Area Network (LAN) installed. This feature allows the CUP to support a variety of option modules, such as FIP, Profibut, multidrop, Ethernet, GBC, GMC and GCM+ option modules.  Its early versions have RAM and optional EPROM or EEPROM for memory storage. New versions, starting with hardware version IC693CPU341-J and firmware Release 4.61, only supports RAM and optional Flash for additional memory needs.

1. Does the IC693CPU341 support interrupt instruction?

Yes. The IC693CPU341 support interrupt instructions for implementing safety through user program and simplified diagnostics.

2. What is the processor speed of the IC693CPU341?

The IC693CPU341 has processor speed of 20 MHz.

3. How many built-in timers and counters does the IC693CPU341 have?

The IC693CPU341 has >2000 timers and Counters available within the memory of the IC693CPU341.

1. How many baseplates does the IC693CPU341 support?

The IC693CPU341 can accommodate up to 5 baseplates.

2. What is the size of the built-in memory of the IC693CPU341?

The IC693CPU341 has 80 KB RAM.

3. What are the optional communication modules supported by the IC693CPU341?

The IC693CPU341 supports Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
