Description
IC693CPU350-BC GE Single slot CPU module
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
| Brand | GE Fanuc |
| Series | Series 90-30 |
| Part Number | IC693CPU350 |
| Operating temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Serial port | RS-485 (via power supply |
| CPU type | Single slot CPU module |
| User Memory | 32K Bytes |
| Processor type | 80386EX |
| Power requirements | 670 milliamps from +5 VDC supply |
| Typical Scan Rate | 0.22 milliseconds per 1K of logic (boolean contacts) |
The CPU Model 350 IC693CPU350, acts as a controller, I/O system, and speciality module designed to meet the demands of flexible industrial solutions. Among other things, it comes with 32Kbytes user memory, 4K I/O, 8 Racks and a logic execution of 0.22msec/K. It is compatible with advanced modules such as Ethernet, various bus modules, and control. Designed in a single overall architecture, the IC693CPU350 is well suited for thousands of applications, such as complex motion control, mining, water treatment, elevator control, high-speed packaging, injection molding, material handling, food processing, continuous emission monitoring and many more. By configuring just the system you need, you save critical space and reduce cost. Furthermore, IC693CPU350 can also be adapted to a wide range of applications such as: digital interfaces (for push buttons, switches, proximity sensors, relays, contactors and many other devices), analog modules (with varying degrees of resolution for flow, temperature or pressure applications), direct connect wiring or remote termination and local or remote I/O systems.
It has a built-in Ethernet user-enabled communication which supports both SRTP and Modbus TCP/IP application protocols and provides a real-time link for connected systems. With scalable processing power, users can create a system that is ideal today while leaving open the option of creating more powerful system tomorrow without changing your software. An integrated motion control supports high performance in point-to-point applications. With a variety of field bus interfaces, the IC693CPU350 enables distributed control and/or I/O. Users can choose from a variety of easy to install and quick to configure field bus interface modules. It is programmable with Proficy Logic Developer PLC-Machine Edition and supports a wide range of programming languages such as Ladder Diagram (LDI), Instruction List (IL), Structural Text (ST), and C Block. It is a low-cost solution with redundant CPUs and power supplies for high availability solutions.

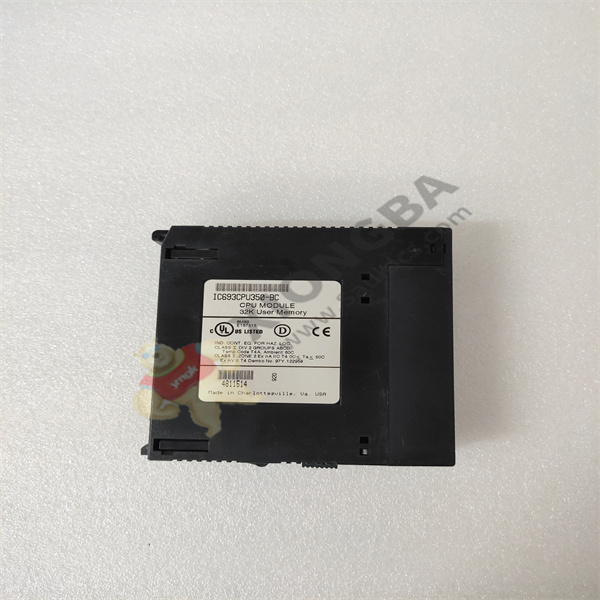

IC693CPU350-BC

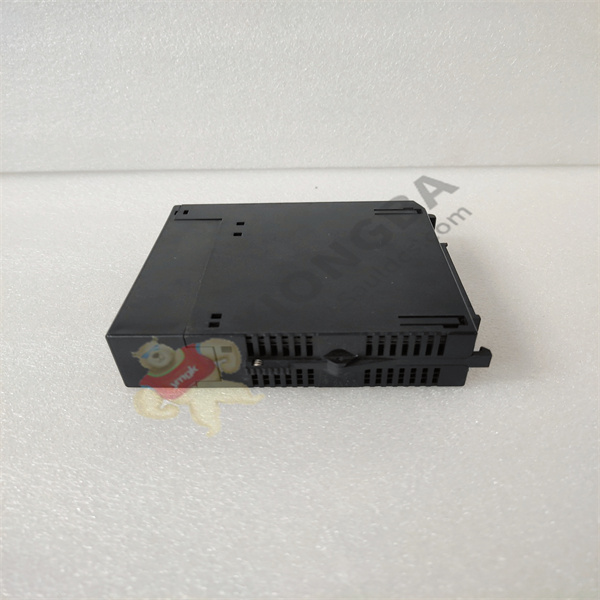

IC693CPU350-BC

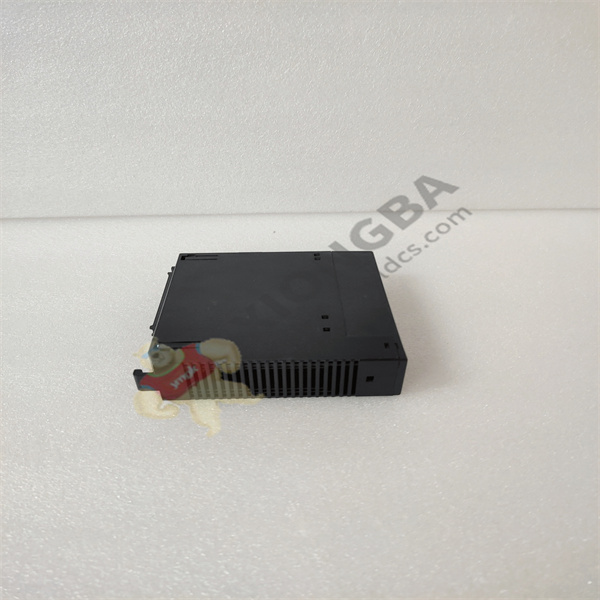

IC693CPU350-BC

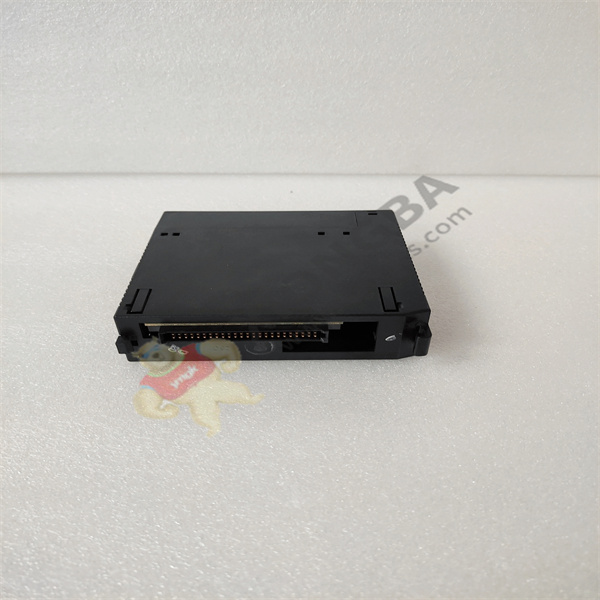

IC693CPU350-BC
IC693CPU350-BC
The IC693CPU350 is a GE Fanuc series 90-30 controller. This controller is part of the modular control system, featuring a single slot wide module and with capability to control up to up to Eight (8) baseplate, including the local baseplate where the CPU is installed.
The IC693CPU350 is designed with a non-configurable user memory of 32K Bytes. Up to 2048 Discrete Input, 2048 Discrete Output, 2048 Analog input Words and 512 Analog output words. This I/O count density qualifies this controller to be installed in medium to large applications.
The IC693CPU350 does not have a communication port. This controller utilizes the communication port installed in the power supply which his a RS485 communication interface, allowing connection to programming workstation, Hand-Held Programmer (HHP) and devices that are capable of exchanging data over RS485 communication standard. This port supports SNP/SNP-X slave protocols.
The IC693CPU350 is configured using a variety of options. It may be configured using the LogicMaster90, Control, VersaPro and CIMPLICITY Machine Edition Logic Developer application software applications. Additionally, legacy Hand-Held Programmers (HHP) may be used to write programs to this controller.
The IC693CPU350 has an internal processor which is the 80386EX with typical scan rate of 0.22 milliseconds per 1K of logic for boolean contacts and processing speed of 25 MHz. This controller supports Override capability, interrupts via periodic subroutine feature, PCM / CCM compatibility and Floating point math. Optional communication protocols with the installation of add-on communication modules supported by the IC693CPU350 are Ethernet, FIP, Profibus, GBC, GCM, GCM+ option modules.
