Technical Specifications for IC694MDL753
| Brand | GE Fanuc |
| Series | PACSystem RX3i |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC694MDL753 |
| Part Number | IC694MDL753 |
| Product Description | High Density Discrete output module |
| No. of groups | Four (4) |
| Description | Positive Logic Output Module |
| No of Channels | Thirty-Two (32) |
| Output voltage range | 10.2-28.8 VDC |
| Application | RX3i PacSystems |
| No. of output groups | Four (4) |
| Output current | 0.5 Amps per point; 4 Amps maximum per group; 3 Amps maximum per group common pin |
| Operating Voltage | 12/24 Volts DC |
| No. of channels per group | Eight (8) |
| Response time, maximum (On and Off) | 0.5 ms |
| Switching Current | 3.0 Amps per Group |
| Wiring configuration | Positive Logic |
| On–state Voltage drop | 0.3 VDC |
| I/O Capacity | 32 Discrete Outputs |

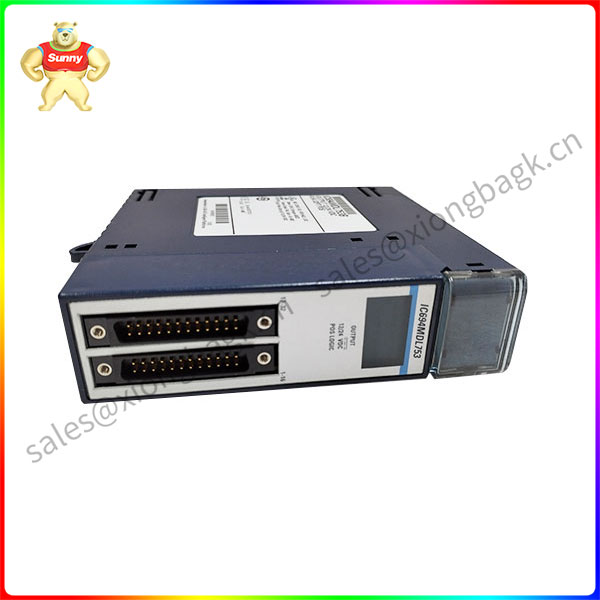

The IC694MDL753 is a discrete input module that is part of the PACSystem RX3i Programmable Automation Controller (PAC) series that is formerly manufactured by GE Intelligent Platforms, recently acquired by Emerson Automation. This module is a high-density digital output module featuring Thirty-Two (32) output channels grouped in Four (4) with Eight (8) channels per group.
Each channel of this module generates an output voltage range of 10.2-28.8 VDC with nominal values of 12 / 24 VDC. It supports positive logic wiring configuration only wherein, the positive wire from the output channels connects to the positive terminal of the connected load. Each channel generates an output current of 0.5 Amperes with maximum current of 4 Amperes per group and 3 Amperes per group common pin. Each channel generates an inrush current of 5.4 Amperes for 10ms, On-state voltage drop of 0.3 VDC and Off-state leakage current of 0.1 Ampere. Each channel exhibits response times of 0.5 ms
This module is provided with 32 individual status LED indicating the energization state of each output channel. For establishing module connection, this module is provided with embedded pins compatible for two male 24–pin connectors (Fujitsu FCN–365P024–AU). User built cable may also be used for flexibility or by using pre-wired cable with catalog numbers IC694CBL327 and IC694CBL328.
The IC694MDL753 occupies a single slot of the chassis and maybe installed to any available slot, whether in the local or remote I/O rack. All of the module’s outputs are energized when the CPU transitions to STOP mode.
