IC697CPX928-FE GE Programmable Logic Controller

Description

IC697CPX928-FE GE Programmable Logic Controller

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

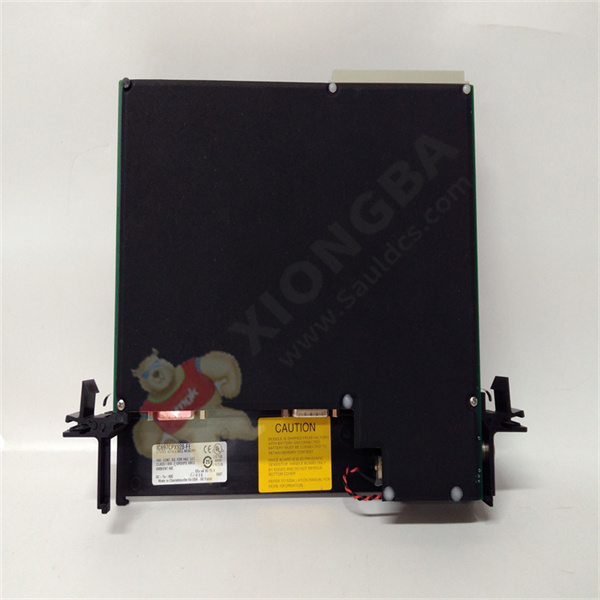

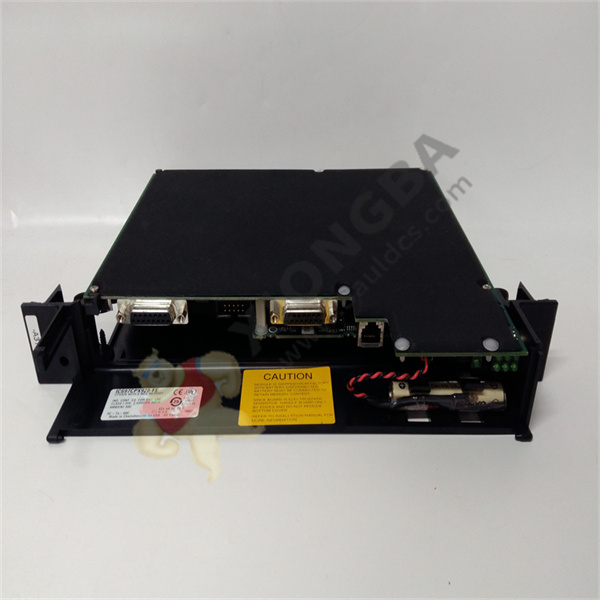

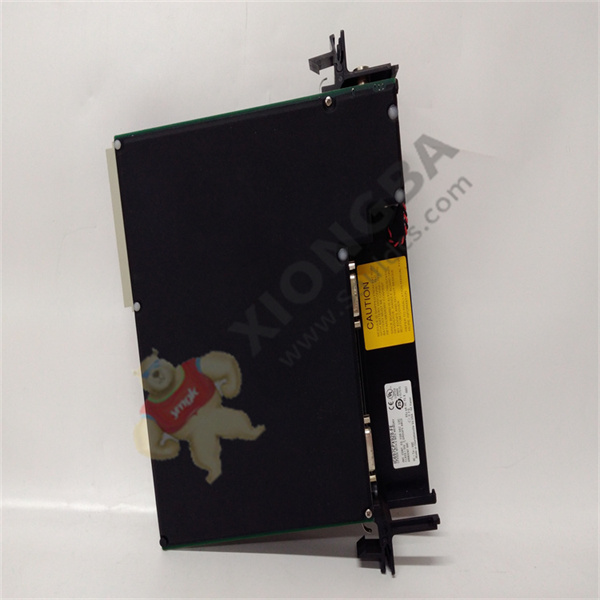

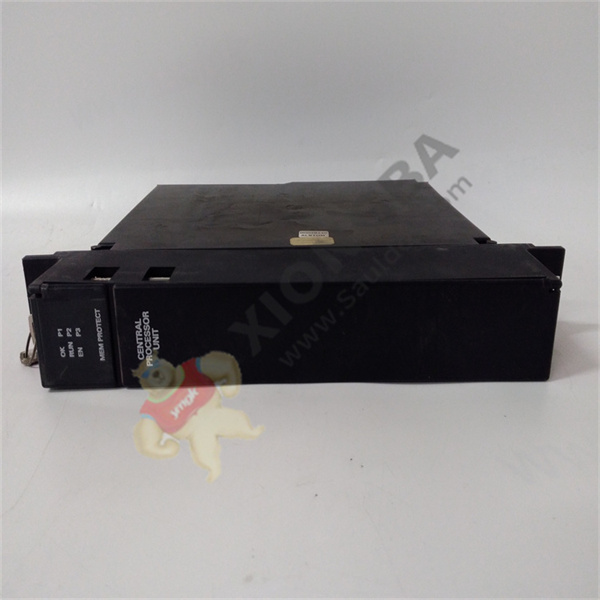

IC697CPX928-FE

IC697CPX928-FE

IC697CPX928-FE

IC697CPX928-FE

The GE Fanuc Series 90-70 module with catalog number IC697CPX928 is a Central Processing Unit (CPU) that is used mainly to execute user program downloaded to the CPU’s memory. This CPU module is a single slot chassis that features an 80486DX4 microprocessor with speed of 96 MHz and 0.4 µs per Boolean function execution. This module is equipped with an on-board memory of 6MB battery-backed up RAM and 256KB non-volatile user flash memory where CPU firmware is also stored.

The IC697CPX928 is a Programmable Logic Controller manufactured by GE Automation and Controls. It is designed to fit into a single rack slot and comes with three built-in serial ports. A backplane mounted on the rack allows this device to communicate with several different modules. A run/stop control switch with three positions or specific software running from an attached computer is used to control the IC697CPX928. Seven on-board LED lights display operational status.

Features of this device include a 96MHz 80486DX4 microprocessor, floating point calculations, processor speeds of 0.4 microseconds for each Boolean function, 8K analog I/O, and 12K I/O of any mix. The IC697CPX928 supports several modules, including IC697 LAN interface modules and various display, coprocessor, communications, and link interface modules. IC660/61 bus controllers and IC697 discrete and analog I/O modules are also compatible with this device.

To program this device, connect it to a computer loaded with MS-DOS, Windows 95, or Windows NT. This connection is possible by way of a serial, parallel, or Ethernet interface. For Ethernet connections to the programming computer, special hardware is required. As the IC697CPX928 is programmed via software, hardware setup with DIP switches and jumpers is not required. Device configuration settings can be protected digitally via a password and physically by a keyswitch.

The IC697CPX928 provides six megabytes of user and program data memory. This memory is maintained by a lithium CMOS battery. Up to 256 kilobytes of optional flash memory (NVRAM) is also supported. Operating system firmware is stored in flash memory. Device disassembly or EPROM replacement is not required to update firmware.

In environments where temperatures reach 122 degrees Fahrenheit (50 Celsius), a fan capable of 70 cubic feet per minute (CFM) is required to prevent overheating.

The product manual contains detailed guidelines for installing the IC697CPX928. Rack power should be off before installing. The operation control switch should be in the stop position. The memory protection keyswitch should be in the off position. Place the CMOS battery into one of the battery connection slots. Insert the device into the rack and resume power.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy

Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
