IS200DSPXH1DBC GE printed circuit board

IS200DSPXH1DBC GE printed circuit board

sales@xiongbagk.cn

Brand:GE

Item NO.:IS200DSPXH1DBC

Product ID:IS200DSPXH1DBC

Payment:T/T

Product Origin:USA

Condition: in stock

Warranty: 18 months

Description:printed circuit board

The GE Mark VI IS200DSPXH1DBC is a printed circuit board created by GE for the Mark VI series. This board is part of GE’s speedtronic series.

Category: Tags:

Description

IS200DSPXH1DBC GE printed circuit board

Xiamen Xiongba Electronic Commerce Co. LTD is a World-Wide international Business Export Trade company by wholesale and Retail. We focus on Electronic & Industry Control & Network Products Area from Year 2006. Our Main Clients from North America, Europe, Middle East, South America and Asia – Countries: United States, UK, France, Spain, Mexico, Finland, Russia, Brazil, UAE, Canada, Germany, Italy, Peru, Sri lanka, India, Thailand, Vietnam, Singapore, Malaysia.

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

The IS200DSPXH1DBC is a board component used within the Mark VI system.  The Mark VI is one of the later Speedtronic systems created by GE for the control of industrial gas/steam turbine systems.   The Speedtronic line began in the 1960s with the MKI and has improved and continued through to the 2000s in several new iterations, the newest being the Mark VIe.   The Mark VI includes a central control module with a connected operator interface built on a Windows platform.   The operator interface allows easy access to system data and alarm states from a single access point.

The IS200DSPXH1DBC functions as a Digital Signal Processor Control Board.  Since there are several different versions of the DSPX board available, please be sure you are ordering the correct iteration of this board for your system.

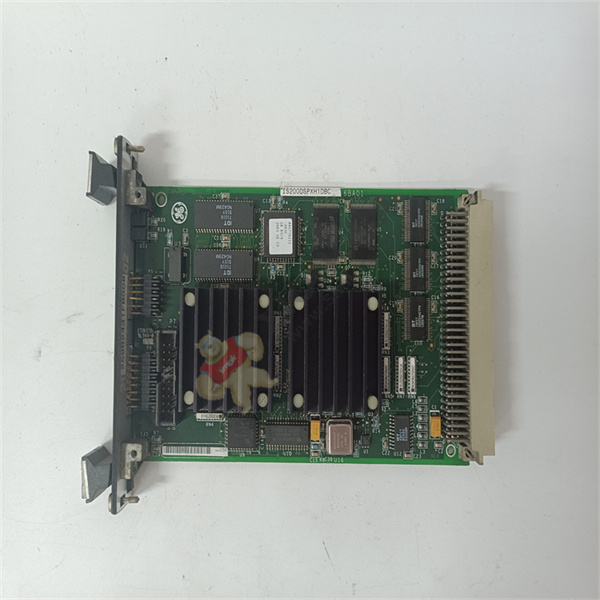

The  IS200DSPXH1DBC includes a 60 MHz digital signal processor, an application-specific integrated circuit(ASIC), and standard memory components.  The ASIC provides custom logic functions and is connected to both LEDs embedded in the front faceplate connected to the circuit board.  These LEDs (one red and one green) help alarm board faults.

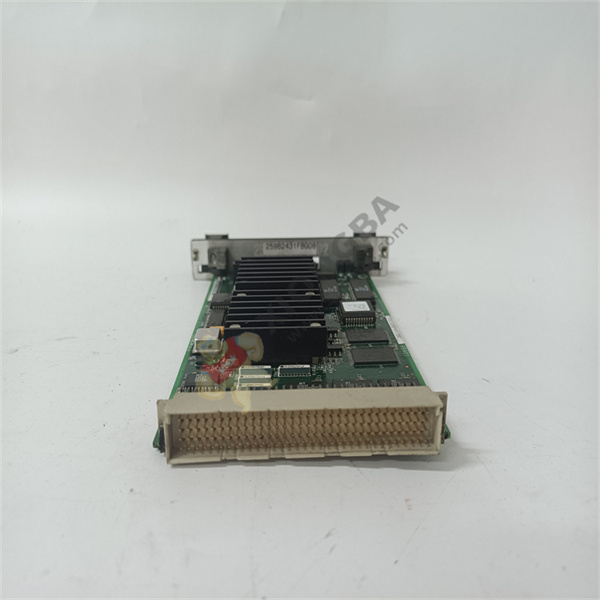

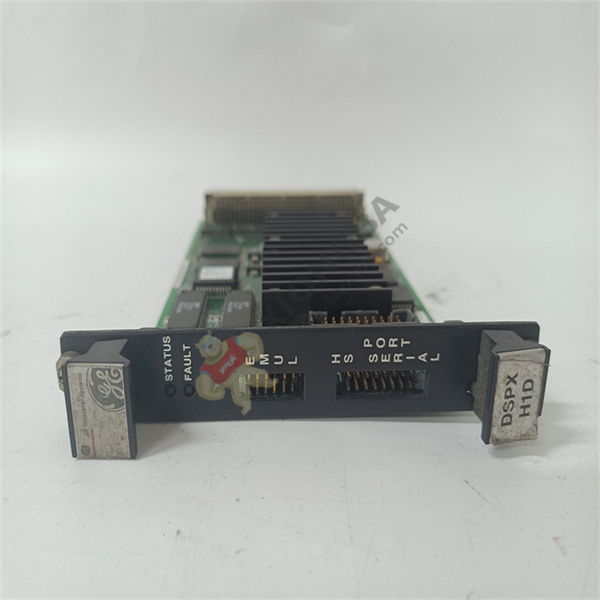

The  IS200DSPXH1DBC has several I/O connectors.  This includes a single backplane connector (P1) and one vertical pin connector located near the front of the board (P7.)  Additionally, there are two connectors mounted on the board’s faceplate.  These function as an engineering monitor port (P6,) and a DSP emulator port (P5).

For additional information about proper installation or handling procedures for the  IS200DSPXH1DBC, please refer to data sheets, manuals, or user guides that were provided by GE.
