Description
Dimensions Height :9 inches/Depth :6 inches/Panel width :1 1/2 inches
Functional abbreviation (abbreviated)egdm
Instruction Manual No. gei-100467 (GEH-6632 Series Manual)
General Electric Energy
Mounting Position Driver Power Backplane Rack (EPBP)
Excitation field grounding detection module
Series/Product Line Excitation control System EX2100
Number of simplex systems 1 EGDM used
Weighs 1 pound, 3 ounces
IS200EGDMH1AFF
The patch board describes the bridge and protection modules

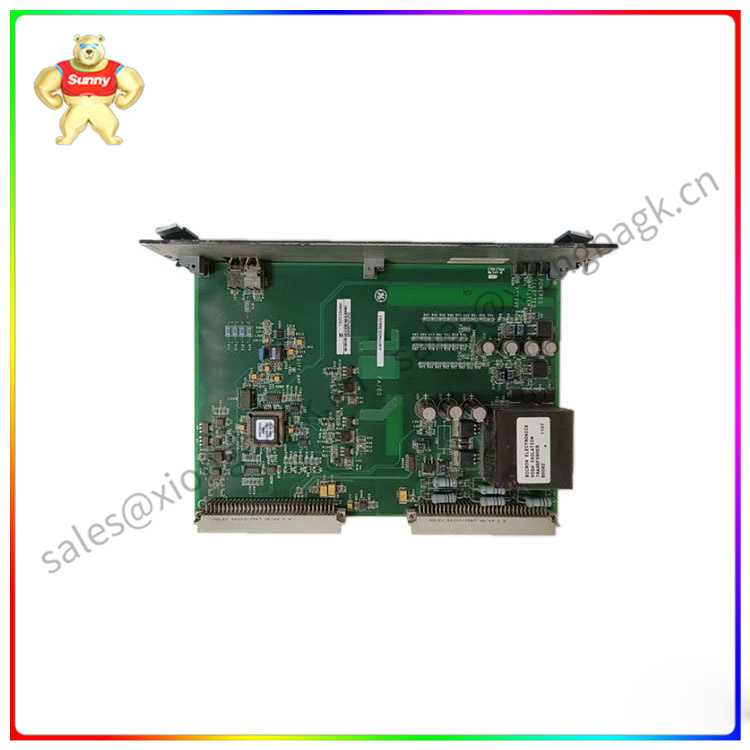

IS200EGDMH1AFF model is an exciting field grounding detection module, that is, the functional abbreviation of EGDM. During installation, the module will be mounted on the excitation power backplane rack and will be close to the EPSM module. The module works on a single redundant system that requires one EGDM module and a redundant system that requires three EGDM modules. The IS200EGDMH1AFF is used with the EXAM module, and the two modules work together to determine the potential for field ground leakage at any point on the DC or AC side.
When the EGDM module and DSPX module are connected through optical fibers, the EGDM module sends the used voltage to the DSPX module through optical fibers. After this process has occurred, the voltage will be checked and an additional alarm will be added by DSPX. There are three LED indicators on the EGDM module panel. The IS200EGDMH1A module has three indicators: power indicator, active indicator, and optional active indicator.
One of the best ways to identify the module is through the alphanumeric catalog number printed directly on the board, but there is also a small board at the bottom of the panel that indicates what the module is.
