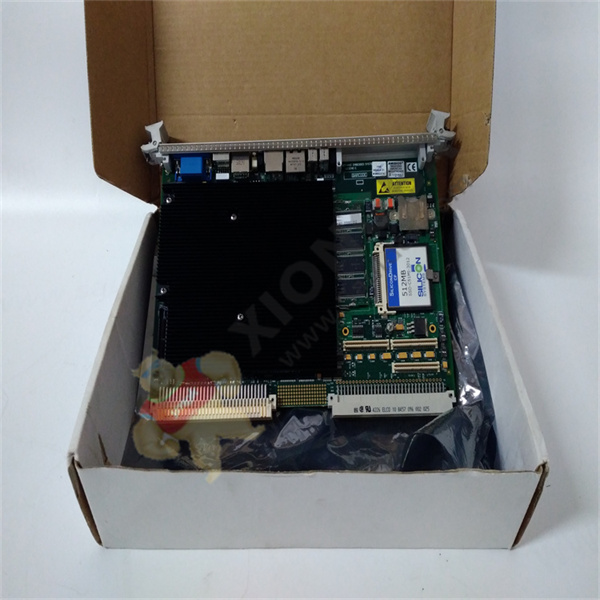

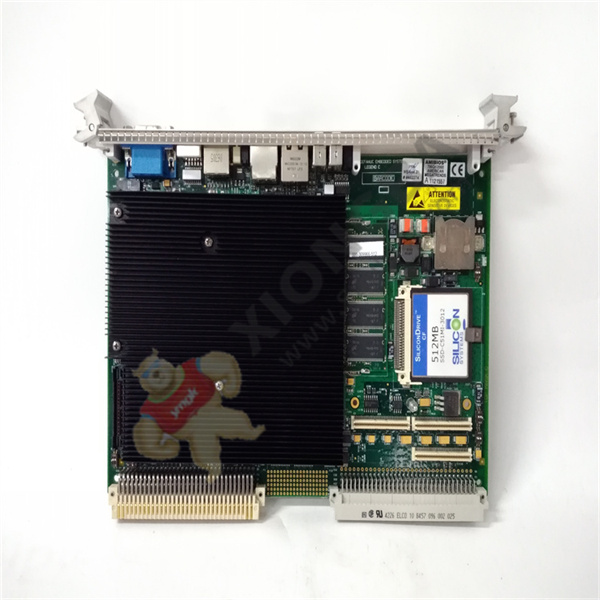

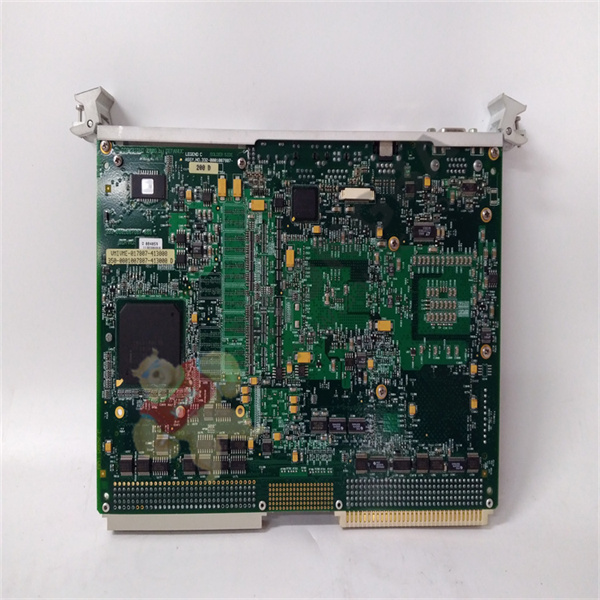

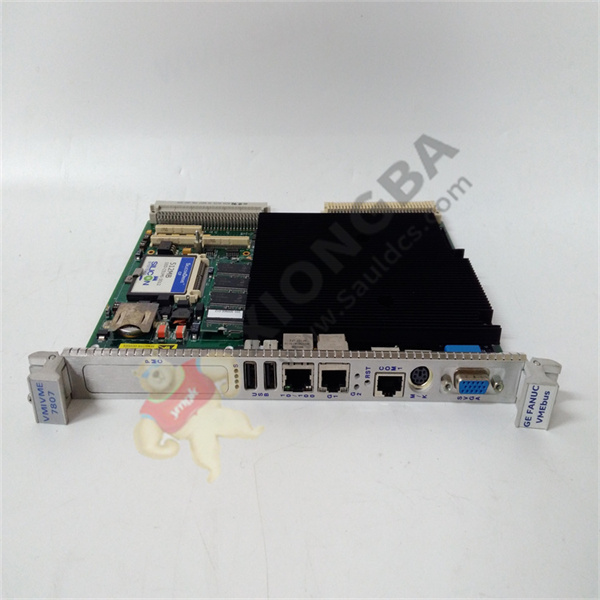

VMIVME-017807-413000 GE Pentium processor

Description

VMIVME-017807-413000 GE Pentium processor

Xiamen Xiongba Electronic Commerce Co. LTD is a World-Wide international Business Export Trade company by wholesale and Retail. We focus on Electronic & Industry Control & Network Products Area from Year 2006. Our Main Clients from North America, Europe, Middle East, South America and Asia – Countries: United States, UK, France, Spain, Mexico, Finland, Russia, Brazil, UAE, Canada, Germany, Italy, Peru, Sri lanka, India, Thailand, Vietnam, Singapore, Malaysia.

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

•  Available with either the 1.1 GHz, 1.6 GHz or 1.8 GHz

Pentium® M processor

• Up to 2 Mbyte of advanced L2 cache

• Up to 1.5 Gbyte DDR SDRAM

• Up to 1 Gbyte bootable CompactFlash on secondary IDE (see

ordering options)

• Internal SVGA and DVI controller

• Serial ATA support through P2 rear I/O

• 400 MHz system bus via Intel® 855GME chipset

• Ethernet controller supporting 10BaseT and 100BaseTX

through the front panel

• Gigabit Ethernet controller supporting 10BaseT, 100BaseTX

and 1000BaseT interface with optional Vita 31.1 support

• Four asynchronous 16550 compatible serial ports

• Four Universal Serial Bus (USB) Rev. 2.0 connections, two on

the front panel and two rear I/O

• PMC expansion site (PCI-X, 66 MHz)

• 32 Kbyte of nonvolatile SRAM

• Operating system support for Windows® XP, Windows 2000,

VxWorks®, QNX® , LynxOS® and Linux®

Functional Characteristics

Microprocessor: The VMIVME-7807 is based on the Pentium M

processor family. The enhanced 1.1 GHz and the 1.6 GHz Pentium M

processors have 1 Mbyte of L2 cache, while the 1.8 GHz Pentium M

processor has 2 Mbyte of L2 cache. The Pentium M processor family

offers thermal characteristics that are well suited for embedded

systems operating over a wide range of temperatures.

DRAM Memory: The VMIVME-7807 supports DDR SDRAM with the

optional ECC support for a maximum memory capacity of 1.5 Gbyte. The

SDRAM is dual ported to the VMEbus.

BIOS: System and video BIOS are provided in reprogrammable flash

memory.

Ethernet Controller: The VMIVME-7807 provides a connection for

10/100 Mbyte LAN using the Intel 82551ER Ethernet controller. One

standard RJ45 connector is provided on the front panel with network

status indicators. The second Ethernet interface is the dual Gigabit

Ethernet (Intel 82546EB) with one routed to the front panel and the

other to the backplane using the P2 connector. Both Gigabit Ethernets

GE Fanuc Embedded Systems’ VMIVME-7807/VME-7807RC are full featured

Pentium®  M-based, single board computers (SBCs) in a single-slot, passively cooled,

VME Eurocard form factor. These products utilize the advanced technology of Intel® ’s

855GME chipset.

The VMIVME-7807/VME-7807RC provide features typically found on desktop

systems such as:

• 1.0GB DDR SDRAM using one SODIMM and an optional 512MB of solder-in

memory for a maximum of 1.5GB

• Built-in SVGA support (front panel connection)

• Digital video controller (rear I/O) DVI-D with dual head display capabilities

• 10/100 Mbit Ethernet controller (front panel connection)

• Dual Gigabit Ethernet supporting (front panel or rear I/O)

• Optional P0 with VITA 31.1 interface

• Serial ATA (SATA) support (rear I/O)

• Serial port COM1 (front panel connection)

• Ultra IDE drive support (rear I/O)

• Real-Time clock/calendar

• Front panel reset switch

• Miniature speaker

• Keyboard/Mouse port (front panel connection)

The 855GME chipset allows the VMIVME-7807/VME-7807RC to provide enhanced

features such as integrated video and Ultra ATA/100 IDE support. The

VMIVME-7807/VME-7807RC are capable of executing many of today’s desktop

operating systems such as Microsoft® ’s Windows®  XP, Windows 2000 and a wide variety of Linux
