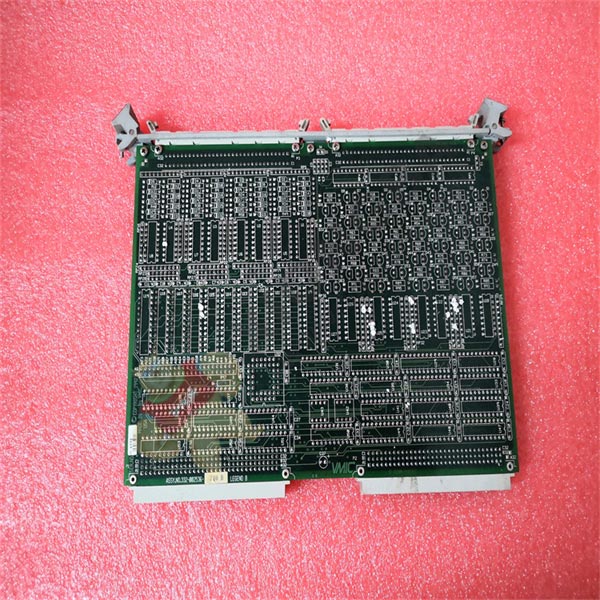

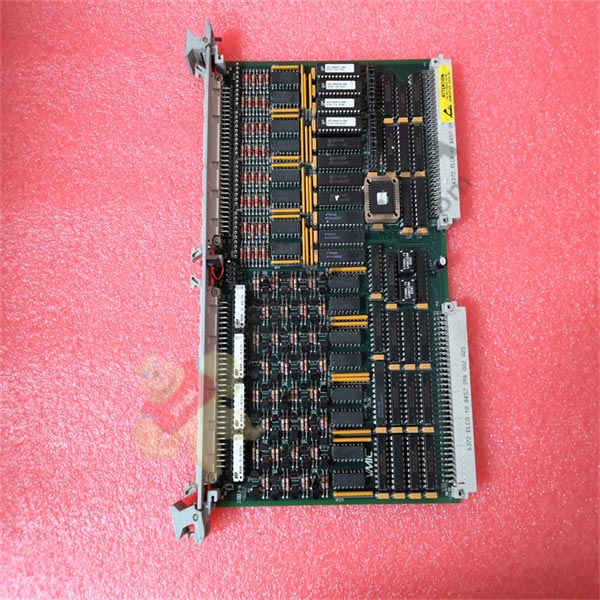

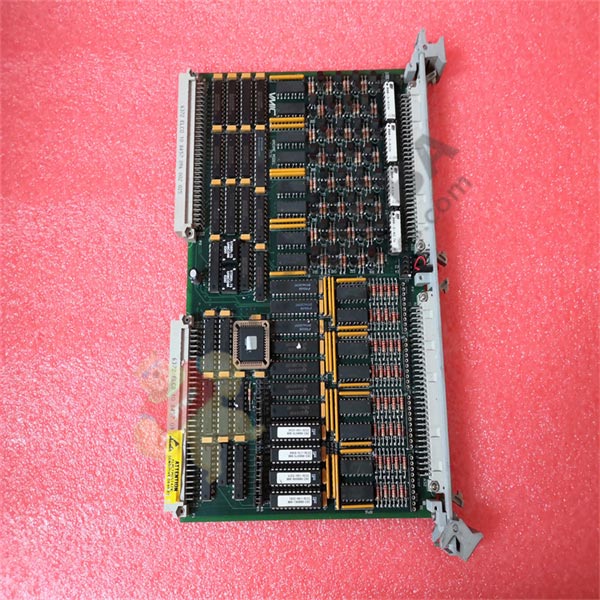

VMIVME-2536 GE 32-Channel Optically Coupled Digital I/O Board

Description

VMIVME-2536 GE 32-Channel Optically Coupled Digital I/O Board

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

• 32 optically coupled outputs
• 32 optically coupled inputs
• High isolation potential
– 1 kV sustained
– 3.5 kV pulsed
• 8-, 16-, 32-bit data transfers
• Standard data or short I/O addressing A16 or A24
• Voltage sensing or contact sensing inputs
• Input ranges of 5 to 125 VDC
• 300 mA current sinking outputs
• 50 V maximum output voltage
• Supports Built-in-Test for both inputs and outputs

VMIVME-2536

VMIVME-2536

VMIVME-2536

VMIVME-2536

VMIVME-2536

Board Function: This board has 32 optically coupled inputs and 32 optically coupled outputs. Both the outputs and inputs have Built-inTest capability and provide a sustained 1 kV of system isolation to theVMEbus

backplane. Compliance: This board complies with the VMEbus specification ANSI/IEEE STD 1014-1987 IEC 821 and 297 with the following mnemonics: A24/A16, D32/D16/D08(EO) Slave with the following Address

Modifiers: 3D,39/2D,29. Built-in-Test: The VMIVME-2536 supports both online and offline Built-in-Test (BIT). Inputs are put into the test mode by setting a bit in the Control and Status Register (CSR). While in the test

mode, data placed in onboard test registers are read through the input ports instead of field data. The test registers are at the same address as the input data ports, allowing testing to be achieved by simply writing to

and reading from the input data ports. This feature is used for both online and offline testing. The contents of the Output Data Registers may be read at anytime, thereby supporting online testing. The outputs may be

put into offline test mode by setting a bit in the CSR. In the offline test mode, the opencollector outputs are all disabled. Data patterns may then be written to and read from the Output Registers for test purposes without

affecting the outputs. On powerup or reset, the board is placed in the test mode. Output Data Registers should be initialized prior to being put online to avoid undetermined states.

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy

Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
