Description
VMIVME-7455 GE Standard VME double height Eurocard
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
| Ambient Temperature | Operating: 5 to 50 °C. Nonoperating: 0 to 55 °C. |
|---|---|
| CD-ROM Transfer Rate (Burst) | 16.7 Mbyte/s |
| CD-ROM Transfer Rate (Sustained) | 1,548 to 3,600 Kbyte/s (FULL – CAV) |
| Humidity | 20 to 80 percent, noncondensing, maximum wet bulb 29 °C |
| Interface | ATAPI/IDE |
| Physical Dimensions | Standard VME double height Eurocard (one slot) 160 x 233.25 x 20.32 mm |
| Power Requirements | +5 V, ±5 percent, 20 mA typical (standby mode), 600 mA typical (sequential read) |
| Random Access Time | 130 ms, typical |
| Shock | Operating: 5 G or less (half sine wave 11 ms). Nonoperating: 60 G or less (half sine wave 11 ms). |
| User Connectors | VME standard 96-pin DIN P2 connector |
| Vibration | Operating: 0.15 G or less (5 to 300 Hz, horizontal operation). Nonoperating: 2 G or less (5 to 300 Hz) |

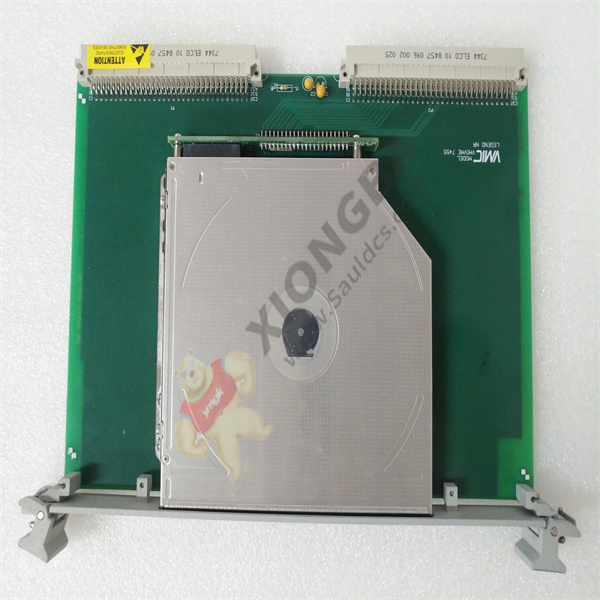

VMIVME-7455

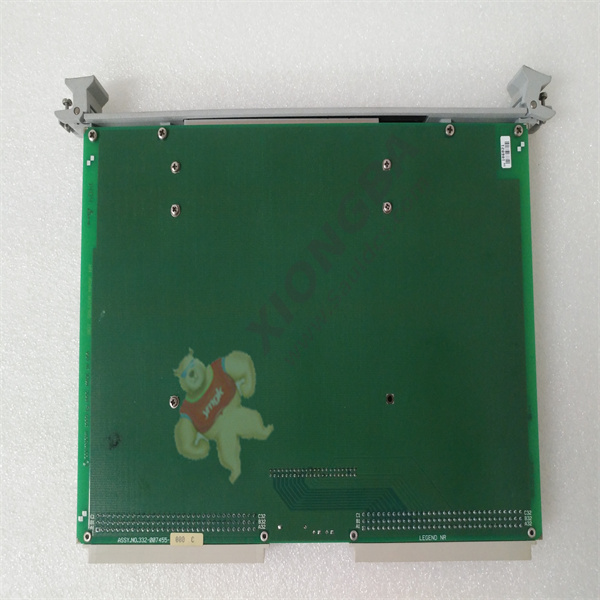

VMIVME-7455

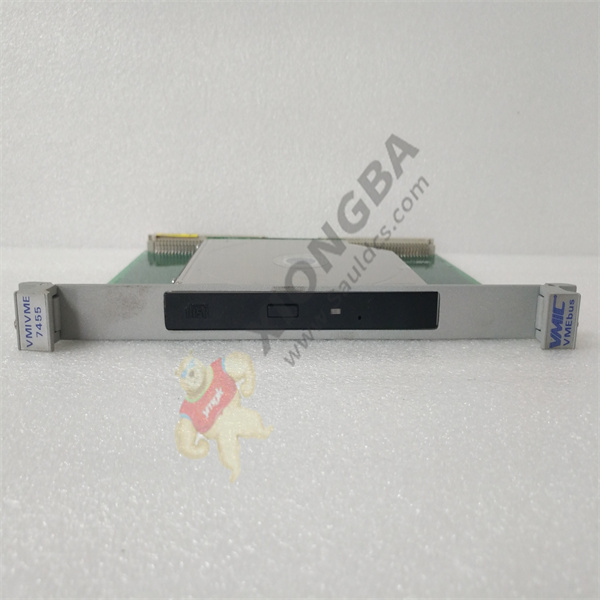

VMIVME-7455

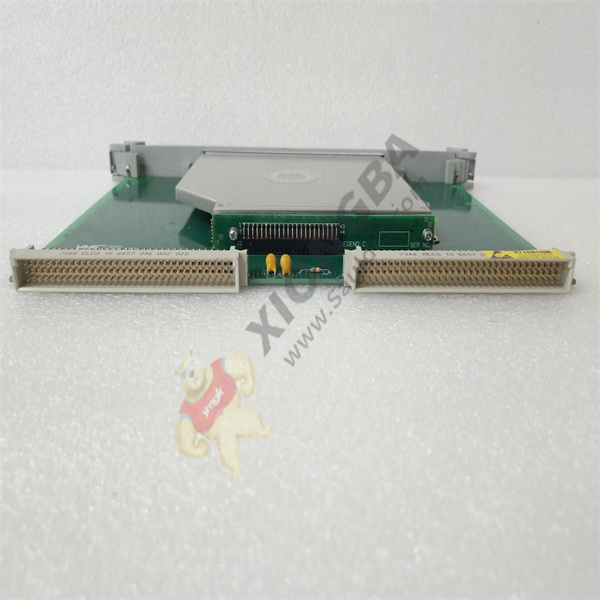

VMIVME-7455
VMIVME-7455 Single-Slot VMEbus IDE CD-ROM Drive Module ✪✄✰✮✄✯❊❘�✄✬❙◗❚❊❘ • 24X IDE CD-ROM drive or faster • Standard VMEbus 6U single-slot form factor • Utilizes VMEbus P2 to connect to single-board computer (SBC) INTRODUCTION — The VMIVME-7455 is a 6U single-slot VMEbus passive board that holds a Multisession Photo CD-ROM drive that is compatible with CD-I, Video CD, Enhanced CD, and CD PLUS. The VMIVME-7455 is designed to interface to VMIC’s line of VMEbus P2-compatible SBC boards. These SBC boards connect to the VMIVME-7455 via the P2 IDE connection, thus eliminating any cable clutter on the front panel and configured as a slave. Refer to the compatible SBC list in this specification. The VMIVME-7455 should be in an adjacent slot to the VMIVME-7452 and the SBC when integrated with the following SBCs: VMIVME-7589, -7589A, -7591, -7592, -7695, -7698, -7740, and -7750. The VMIVME-7455 does Shock: not have to be in an adjacent slot to the VMIVME-7452 or the Operating: 5 G or less (half sine wave 11 ms) SBC when it is integrated with the VMIVME-7696 or the Nonoperating: 60 G or less (half sine wave 11 ms) VMIVME-7697. It is recommended that this product only be used with a Power Requirements: +5 V, ±5 percent, 20 mA standard VMEbus backplane on which the J2 pins extend typical (standby mode), 600 mA typical (sequential read) through a shrouded header. A VMIC cable, part number Compatible SBCs: 360-010004-ABC, may be purchased to connect P2 slots together. VMIVME-7589 VMIVME-7697A VMIVME-7589A VMIVME-7698 This product is configured as a slave device. VMIC VMIVME-7591 VMIVME-7740 cables, part number 360-010004-AB9 or 360-010004-ABG, VMIVME-7592 VMIVME-7750 will be required if the application for the VMIVME-7455 VMIVME-7695 VMIVME-7751 requires it to be a master device. These cables “open” the VMIVME-7696 VMIVME-7765 connection to pin C14 on P2. VMIVME-7697 SPECIFICATIONS TRADEMARKS Physical Dimensions: Standard VME double height The VMIC logo is a registered trademark of VMIC. Eurocard (one slot) Other registered trademarks are the property of their 160 x 233.25 x 20.32 mm respective owners. User Connectors: VME standard 96-pin DIN P2 connector Interface: ATAPI/IDE Ambient Temperature: Ordering Options Operating: 5 to 50 ˚C May 2, 2002 800-007455-000 F ABC – D E F Nonoperating: 0 to 55 °C VMIVME-7455 –0 – Humidity: 20 to 80 percent, noncondensing, maximum A = Indicates CPU Board to Be Mated with CD-ROM Module wet bulb 29 °C 0 = Reserved 1 = Reserved CD-ROM Transfer Rate (Sustained): 1,548 to 2 = Reserved 3,600 Kbyte/s (FULL – CAV) 3 = For Use with VMIVME-7589, -7589A, -7591, 7592, -7695, -7698, -7740, and -7750 CD-ROM Transfer Rate (Burst): 16.7 Mbyte/s 4 = For Use with VMIVME-7696, -7697, -7697A, -7751, and -7765 BC = Indicates Disk Module Configuration Random Access Time: 130 ms, typical 00 = CD-ROM Drive Only 01 = Reserved Vibration: For Ordering Information, Call: Operating: 0.15 G or less (5 to 300 Hz, horizontal 1-800-322-3616 or 1-256-880-0444 • FAX (256) 882-0859 E-mail: info@vmic.com Web Address: www.vmic.com operation) Copyright © September 1998 by VMIC Nonoperating: 2 G or less (5 to 300 Hz) Specifications subject to change without notice. VMIC • 12090 South Memorial Parkway • Huntsville, Alabama 35803-3308 1 PRELIMINARY
