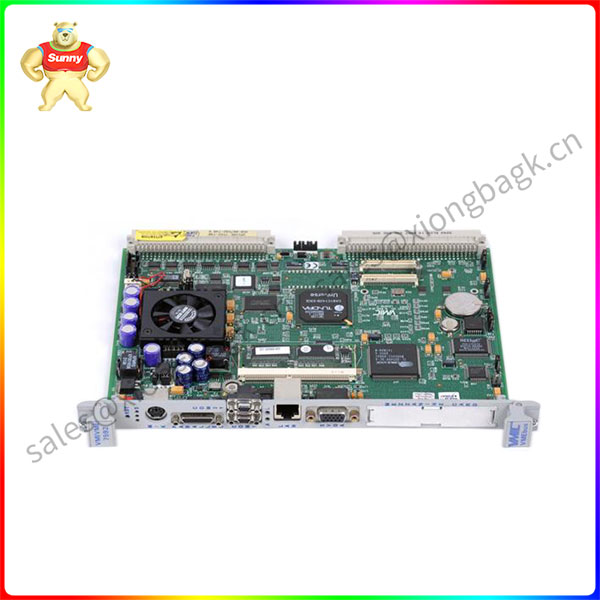

VMIVME-7592 Single board computer VMIVME-7592-740

The Abaco Systems / VMIC VMIVME-7592 Single-Board Computer brings Intel Pentium processor power to VMEbus, offering processor speeds up to 233 MHz with MMX. The VMIVME-7592 complements the Pentium processor with 512 Kbyte of external cache memory. Near-zero wait state operation of the processor is ensured by the use of synchronous burst static RAM with the Intel chipset. The VMIVME-7592 accepts one 144-pin SODIMM module for a maximum memory capacity of 256 Mbyte SDRAM. The on-board SDRAM is dual ported to the VMEbus. System BIOS, Lanworks Technologies, Inc.’s BootWare, and video BIOS are provided in reprogrammable cash memory. High-resolution graphics and multimedia-quality video are supported on the VMIVME-7592 by the Cirrus Logic CL-GD5480 PCI graphics adapter. The CL-GD5480 is complemented by 2 Mbyte synchronous graphics DRAM with a high-bandwidth 64-bit data interface. Screen resolutions up to 1,280 x 1,024 x 256 colors (noninterlaced) are supported by the CL-GD5480 graphics adapter. The VMIVME-7592 supports Ethernet LANs with the Intel 21143 PCI Ethernet controller. 10BaseT and 100BaseTX options are supported via a front panel RJ45 connector. Two 16550-compatible serial ports are featured on the VMIVME-7592 front panel. Each serial channel has an independent 16-byte FIFO to support baud rates up to 56 kHz.
