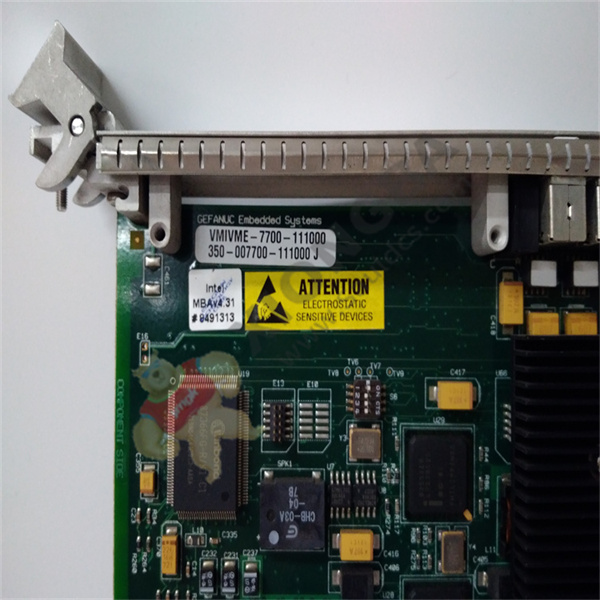

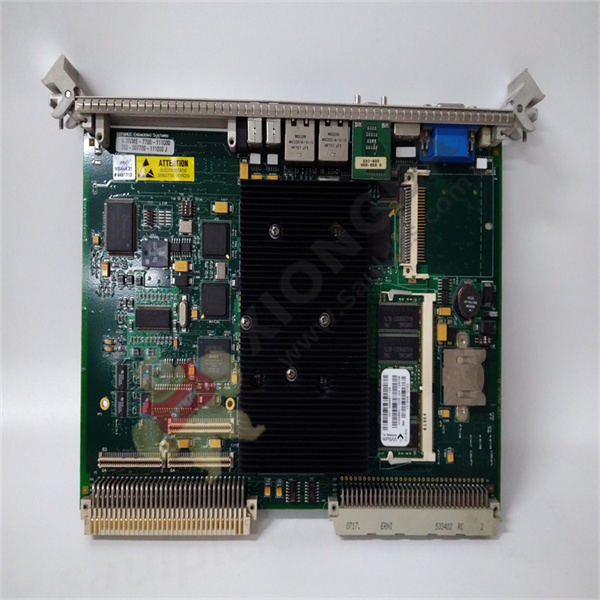

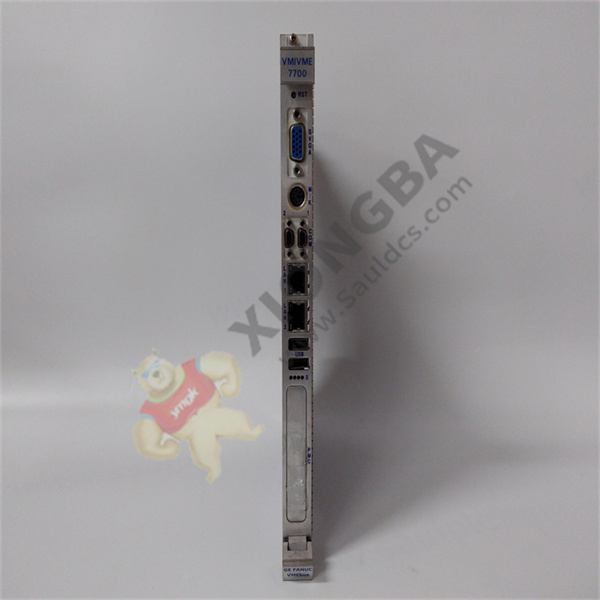

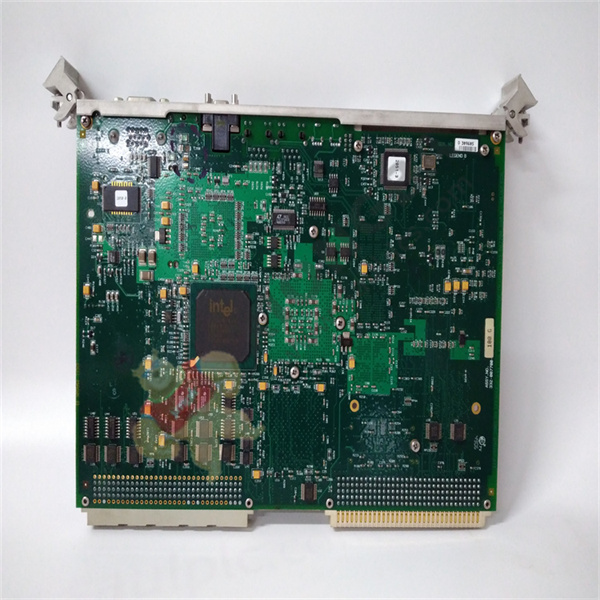

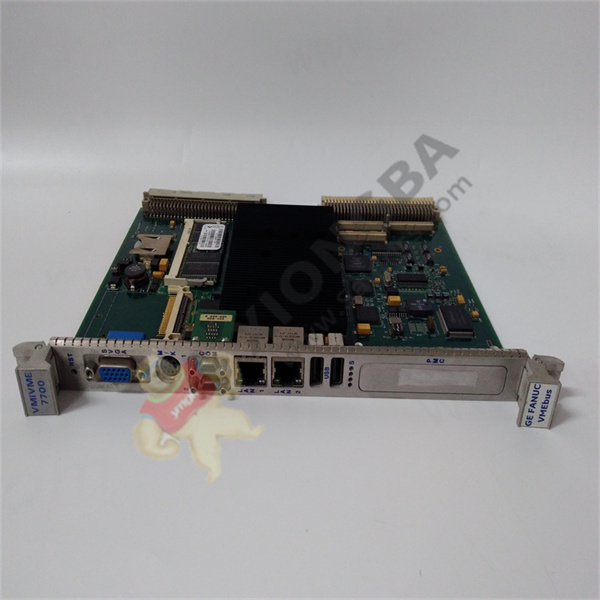

Name: VMIVME-7700 GE Processor module
Brand: GE
Availability: InStock

Description

VMIVME-7700 GE Processor module

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

[service contact information]

Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Specializing in the world-renowned brand DCS system, robot system, large-scale servo control system and module.

Main brand: Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS TRICONEX、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、Prosoft、Woodward、MOOG、

RexrothAnd other imported industrial parts.

• 400 MHz Ultra Low Voltage Celeron Processor
• No SDRAM Memory Installed
• No CompactFlash Installed

Part Number: VMIVME-7700-010

VMIVME-7700

Intel Ultra Low Voltage Celeron 400 MHz/650 MHz Processor
Up to 1 GB Bootable Flash on Secondary IDE (Optional)
Two 16-Bit and Two 32-Bit Programmable Timers
32 KB of Nonvolatile SRAM
One PMC Expansion Site
VME64 Modes Supported

GE Fanuc / VMIC’s VMIVME-7700 is a full-featured ULV Celeron processor-based SBC in a single-slot, passively cooled, Eurocard form factor that utilizes the advanced technology of Intel’s 815E chipset running at a front-side bus rate of 100 MHz. The VMIVME-7700 is compliant with the VMEbus Specification Rev. C.1 and features a transparent PCI-to-VMEbus bridge, allowing the board to function as a system controller or peripheral CPU in multi-CPU systems.

•Special features for embedded applications include:

—Up to 1 GB bootable Flash on secondary IDE (optional)

—Two 16-bit and two 32-bit programmable timers

—32 KB of nonvolatile SRAM

—Software-selectable Watchdog timer with reset

—Remote Ethernet booting

—One PMC expansion site (IEEE-1386.1 PCI mezzanine card standard,5 V)

—VME64 modes supported: A32/A24/D32/D16/D08(EO)/MBLT64/BLT32

—VMEbus interrupt handler, interrupter, and system controller

—Includes real-time endian conversion hardware for little-endian andbig-endian data interfacing (patent no. 6,032,212)

—Enhanced bus error handling

—Passive heat sink

—Real-time clock and miniature speaker included

—Dual front panel universal serial bus (USB) connections

•Standard features include:

—Up to 512 MB PC100 SDRAM

—100 MHz system bus via Intel 815E chipset

—Dual Ethernet controllers supporting 10BaseT and 100BaseTXinterfaces

—Ultra DMA/100 hard drive and floppy drive controllers (uses VMEbus P2for connection to IDE/floppy)

—Two high performance 16550-compatible serial ports

—PS/2-style keyboard and mouse ports on front panel

—VMEbus backplane interface

—User programmable Watchdog timer

—Passive processor heat sin

Application industry:

Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy

Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
