F3 DIO 88 01 HIMA Safety-Related Controller

Description

F3 DIO 88 01 HIMA Safety-Related Controller

[service contact information]

Tel: 18059884797 (WeChat with the same number)

QQ：3095989363

Email: sales@xiongbagk.cn

Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen

① 24-hour email reply (12 hours);

③ For shipment to countries outside Asia, please contact the seller.

Purchase automation parts worldwide.
Xiamen Xiongba is a search engine for industrial automatic delivery of spare parts. We help you find the parts quickly!
The key supplier to control the industrial “spare parts” business all over the world
Deliver your new parts, or parts that have been discontinued.
New parts (a wide selection of parts)
We supply high-quality parts of various brands, and you can certainly find parts that meet your automatic replacement needs.
Fast order processing (worry-free)
Do you need the automation part urgently? Our order fulfillment process is very easy, and we can quickly complete the turnover within 24 hours.
Global distribution

With the help of our established global partner network, we can provide delivery services worldwide anytime, anywhere.

The safety-related F3 DIO 8/8 01 remote I/O is a compact system in a metal enclosure with 8 digital inputs, 8 digital DO+ outputs (L- ground), 2 digital DO-outputs (S+ ground) and 2 pulsed outputs. The digital outputs DO4+, DO8+, DO4- and DO8- can also be connected as two-pole connections.
The remote I/O is available in a model variant for SILworX and a model variant for ELOP II Factory, see Chapter 3.2. All variants are described in this manual.
The remote I/O serves to extend the I/O level of HIMax and HIMatrix controllers, and is connected to them via safeethernet. The remote I/O itself is not able to run a user program.
The HIMatrix remote I/Os are not multi-master capable.
The remote I/O is suitable for mounting in Ex-zone 2, see Chapter 4.1.4.
The device has been certified by the TÜV for safety-related applications up to SIL 3 (IEC 61508, IEC 61511 and IEC 62061), Cat. 4 (EN 954-1) and PL e (EN ISO 13849-1). Further safety standards, application standards and test standards are specified in the certificate available on the HIMA website.
Safety Function
The remote I/O is equipped with safety-related digital inputs and outputs. The input values on the inputs are safely transmitted to the connected controller viasafeethernet. The outputs are safely assigned their values by the connected controller via safeethernet.
Safety-Related Digital Inputs
The remote I/O is equipped with 20 digital inputs. The state (HIGH, LOW) of each input is signaled by an individual LED. Mechanical contacts without own power supply or signal power source can be connected to the inputs. Potential-free mechanical contacts without own power supply are fed via an internal short-circuit-proof 24 V power source (LS+). Each of them supply a group of 4 mechanical contacts. Figure 1 shows how the connection is performed. With signal voltage sources, the corresponding ground must be connected to the input (L-), see Figure 1.

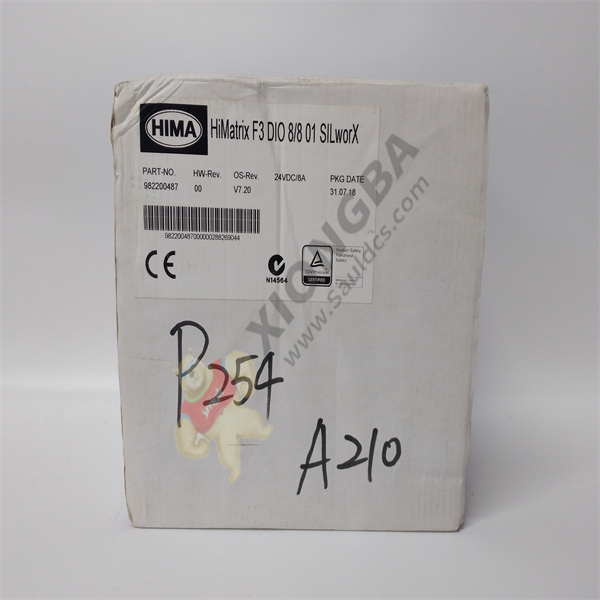

F3 DIO 88 01

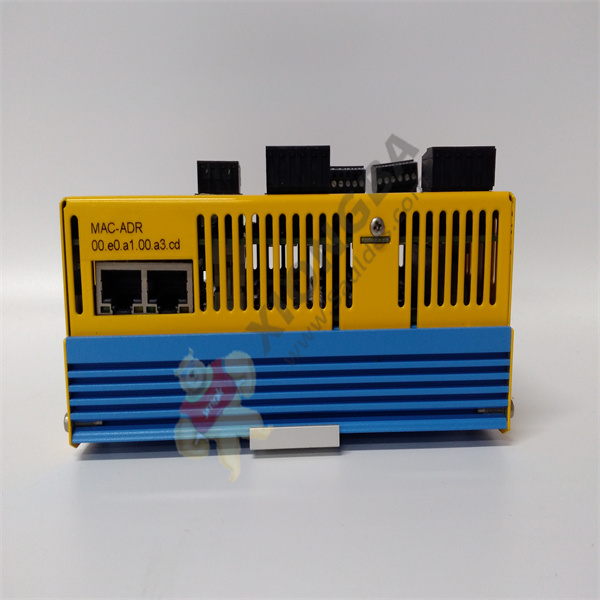

F3 DIO 88 01

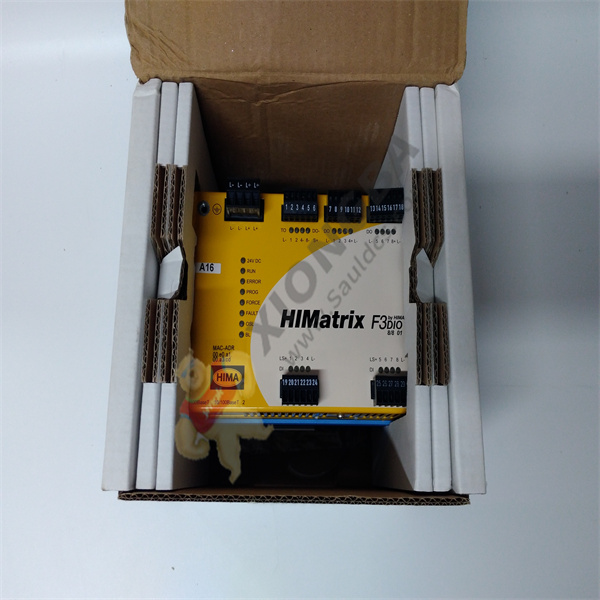

F3 DIO 88 01

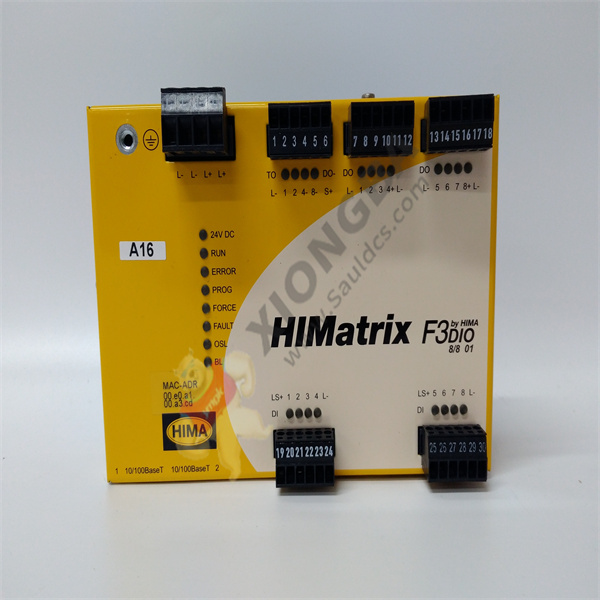

F3 DIO 88 01

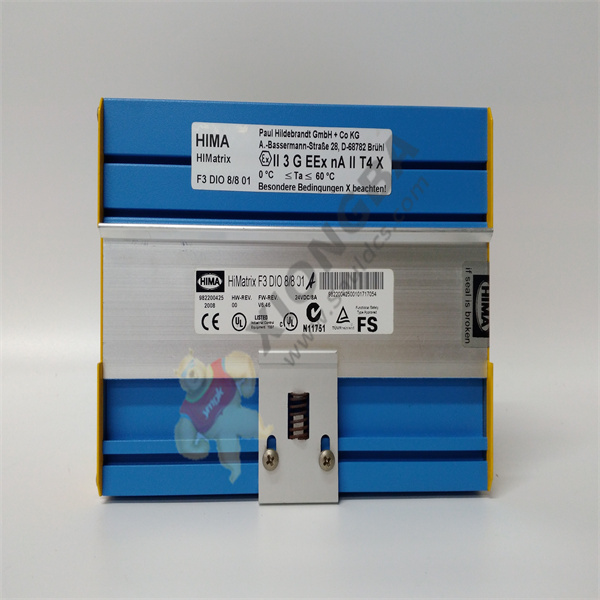

F3 DIO 88 01
