H51q-HRS B5233-2 997205233 HIMA Safety System Module

H51q-HRS B5233-2 997205233 HIMA  Safety System Module

sales@xiongbagk.cn

Brand:HIMA

Item NO.:H51q-HRS

Product ID:B5233-2 997205233

Payment:T/T

Product Origin:USA

Condition: in stock

Warranty: 18 months

Description:Safety System Module

H51q-HRS  B5233-2 997205233 HIMA Safety System Module

Category: Tags:

Description

H51q-HRS B5233-2 997205233 HIMA Safety System Module

Xiamen Xiongba Electronic Commerce Co. LTD is a World-Wide international Business Export Trade company by wholesale and Retail. We focus on Electronic & Industry Control & Network Products Area from Year 2006. Our Main Clients from North America, Europe, Middle East, South America and Asia – Countries: United States, UK, France, Spain, Mexico, Finland, Russia, Brazil, UAE, Canada, Germany, Italy, Peru, Sri lanka, India, Thailand, Vietnam, Singapore, Malaysia.

Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )

If necessary, please contact customer service.

B 5233-1/-2: Assembly Kit /
H51q-HS/HRS: System
System H51q-HS/HRS in K 1412B system subrack, 5 HU, 19 inches with redundant central
module, power supply 24/5 V, power supply monitoring module, I/O bus connection, communication
modules (optional), coprocessor modules (optional) and three fans
H51q-HS / B 5233-1: single channel bus, redundant central modules
H51q-HRS / B 5233-2: redundant bus, redundant central modules
TÜV certified, applicable up to SIL 3 according to IEC 61508

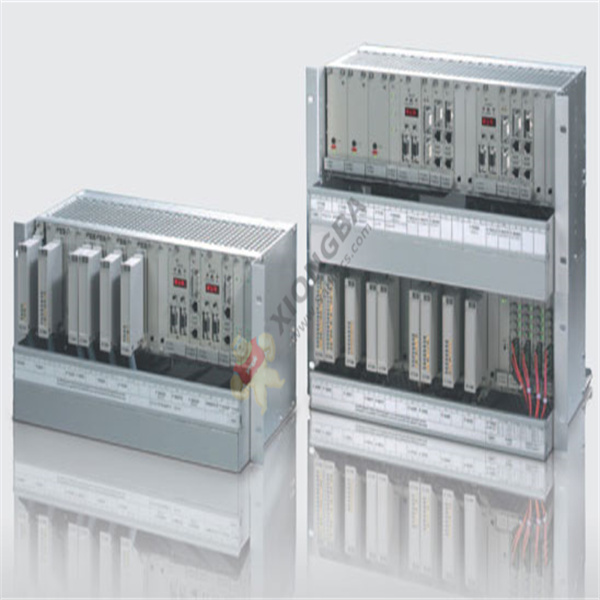

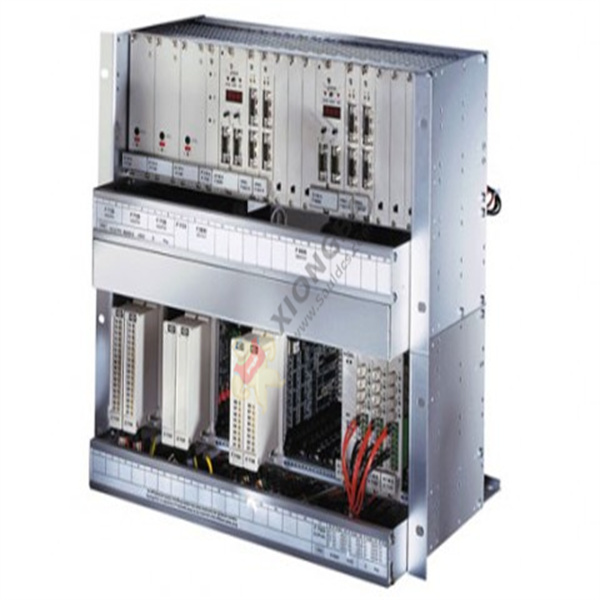

Figure 1: Front view
1 Parts of the B 5233-1/-2 assembly kit /
H51q-HS/H51q-HRS system
• 1 x K 1412B central rack, 5 units high, 19 inches, with cable tray with three fan modules
K 9212, hinged receptacle for the label and backplane Z 1001.
• additional modules on the rear
• 3 x Z 6011 decoupling and fusing to feed the power supply modules
• 1 x Z 6018 fan run monitoring and fuse monitoring
• 2 x Z 6013 decoupling and fusing of the supply voltage for the WD signal
• 2 x F 7546 bus termination module (B 5233-1)
• 4 x F 7546 bus termination module (B 5233-2)
• 1 x BV 7032 data cable (only B 5233-1)
includes the modules:
• 3 x F 7126 power supply modules 24 V / 5 V, 10 A (PS1, PS2, PS 3)

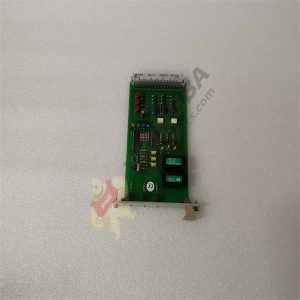

• 1 x F 7131 power supply monitoring
• 2 x F 8650X central modules (CU1, CU2)
modules for option (separate order)
• 6 x F 8621A coprocessor modules (CM11 – CM13, CM21 – CM23)
• 10 x communication modules (CM11 – CM15, CM21 – CM25)

HIMA-H51q-

HIMA-H51q-

HIMA-H51q-

HIMA-H51q-

H51q-HRS B5233-2 997205233

H51q-HRS B5233-2 99720523

ayment:

bank transfer or Escrow or Paypal or Western Union.
we accept USD and RMB payment both.

Leadtime:

some stock parts can ship out within 3-5days. Some is 3-4weeks for booking.
