T8431 ICS TRIPLEX Trusted TMR 24Vdc Analogue Input Module
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
- Manufacturer : ICS Triplex
- Product No. : T8431
- System Supply Voltage Range : 20 to 32V dc
- Number of Inputs : 40 Channels
- User Defined Thresholds : 4-off
- Input Current Range : 0-22mA
- Input Voltage Range : 0-6 Vdc
- Sample Update Time : 0.5ms
- Resolution : 3.9uA (1/256mA)
- Safety Accuracy : +/- 1% of full scale(default threshold above which 0x70nn series slice discrepancy faults are raised)
- Calibration Accuracy : 0.03%
- Recommended input channel calibration check
- interval : 2 years
- Circuit Type : Fault tolerant, fully triplicated with optional line monitoring
- Fusing : None, external if requiredIntrinsic Safety External barrierSequence of Events
- Event Resolution : 1ms
- Time-stamp Accuracy : ±0.5 ms
- Field Common Isolation
- Sustained Working : ±250V dc

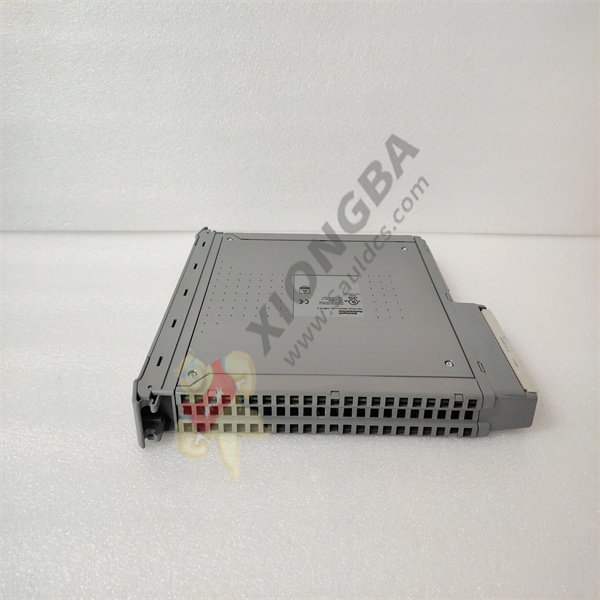

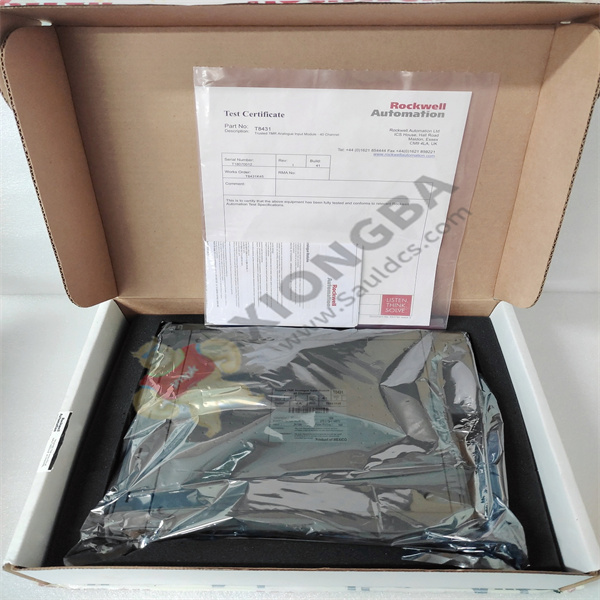

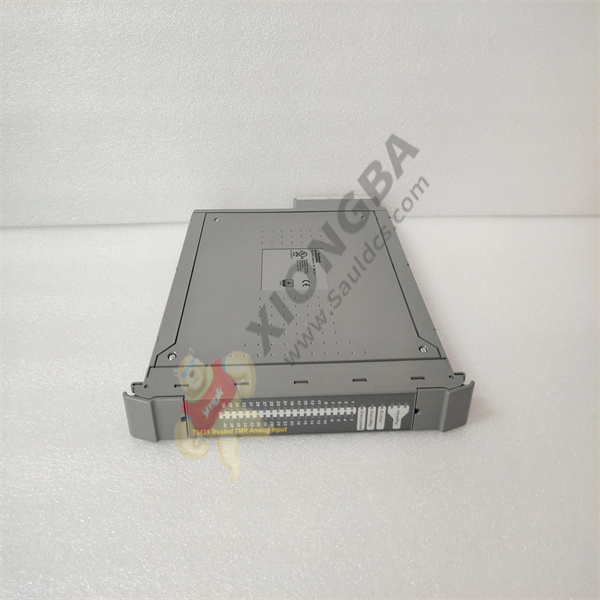

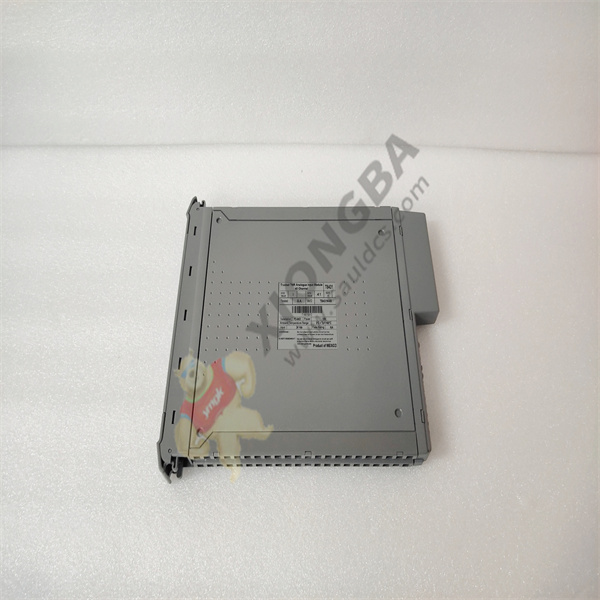

ICS TRIPLEX T8431
ICS TRIPLEX T8431
ICS TRIPLEX T8431
ICS TRIPLEX T8431
ICS TRIPLEX T8431
- Maximum Withstanding : ±2.5kV dc
- Channel to Channel Crosstalk : -40 to –60 dB
- Power Consumption : 15 – 18W
- Self-Test Interval : 2 minutes
- Operating Temperature : -5°C to 60°C (23°F to 140°F)
- Non-operating Temperature : -25°C to 70°C (-13°F to 158°F)
- Temperature change : 0.5ºC/min
- Operating Humidity : 10 – 95% RH non-condensing
- Environmental Specifications : Refer to Document 552517
- DimensionsHeight : 266mm (10.5ins)Width : 31mm (1.2ins)
Depth : 303mm (12ins)
- Weight : 1.149kg (2.5lbs)
- Real Time Clock Resolution : 100µSec
- Shipping Weight : 2 Kg
