The Trusted® TMR 24 Vdc Digital Output Module interfaces to 40 field
devices. Triplicated diagnostic tests are performed throughout the Module
including measurements for current, and voltage on each portion of the voted
output channel. Tests are also performed for stuck on and stuck off failures.
Fault tolerance is achieved through a Triple Modular Redundant (TMR)
architecture within the Module for each of the 40 output channels.
Automatic line monitoring of the field device is provided. This feature enables
the Module to detect both open and short circuit failures in field wiring and
load devices.
The Module provides onboard Sequence of Events (SOE) reporting with a
resolution of 1 ms. An output change of state triggers an SOE entry. Output
states are automatically determined by voltage and current measurements
onboard the Module.
This Module is not approved for direct connection to hazardous areas and
should be used in conjunction with Intrinsic Safety Barrier devices.

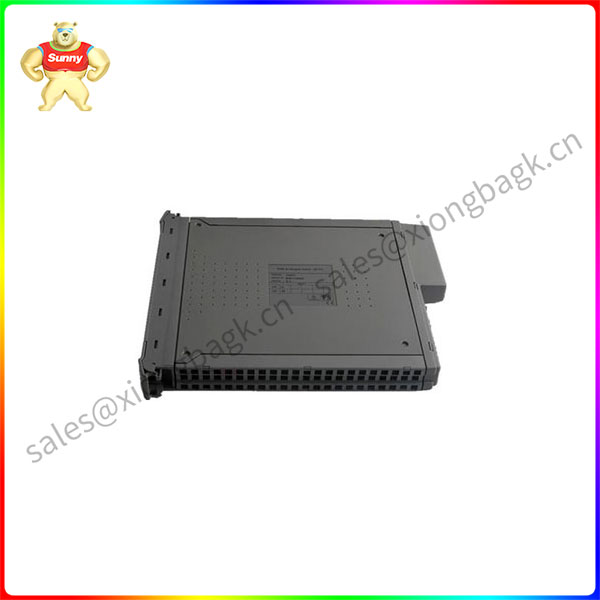

T8451C

Features

• 40 Triple Modular Redundant (TMR) output points per Module.
• Comprehensive, automatic diagnostics and self-test.
• Automatic line monitoring per point to detect open circuit and short circuit field wiring and load faults.
• 2500V impulse withstand opto/galvanic isolation barrier.
• Automatic overcurrent protection (per channel), no external fuses required.
• Onboard Sequence of Events (SOE) reporting with 1 ms resolution.
• Module can be hot-replaced online using dedicated Companion (adjacent) Slot or SmartSlot (one spare slot for many Modules)
configurations.
• Front Panel output status light-emitting diodes (LEDs) for each point indicate output status and field wiring faults.
• Front Panel Module status LEDs indicate Module health and operational mode (Active, Standby, Educated).
• TϋV Certified IEC 61508 SIL 3.
• Outputs are powered in isolated groups of eight. Each such group is a Power Group (PG).
