Description

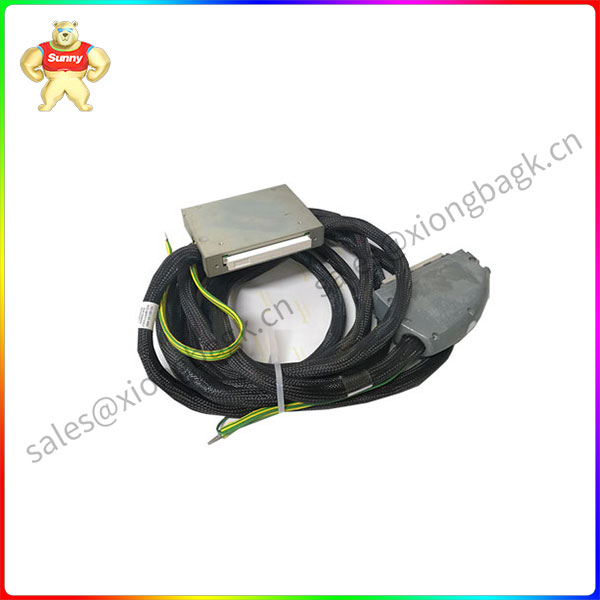

TC-501-02-4M5 Trusted TMR I/O SmartSlot Slot Cables
This document provides detailed information for the types of Trusted® input/output (I/O) Cables
available within the SmartSlot group. These types of cable provide connection facilities between the
Trusted analogue and digital input/output modules, and Trusted Field Termination Assemblies
(FTAs) or Trusted Versatile Field Termination Assemblies (VFTAs) as required. Cables are also
available with a ‘flying lead’ at one end to allow connection to conditioned terminals.
The types of Trusted I/O SmartSlot Cables currently available are listed in Table 1 on page 4.
The cables are manufactured to user’s requirements, therefore length and type of cable insulation
must be specified. Length must be specified to the nearest 0.5 m in the format xmx, e.g. 2m0 for a
cable length of 2.0 m. This detail must be added to the end of the part number. Note that some
cable lengths are preferred options and may be easier to obtain; refer to Rockwell Automation for
details.
TC-501-02-4M5
The type of cable insulation forms part of the cable part number and is denoted by 02 for
Low Smoke Zero Halogen (LSZH) or 03 for UL Certified cable material. 02 is also flame retardant to
IEC 60332-3 Cat A. When ordering cables, it is recommended that the user supplies the details as
shown in Table 1.
The maximum recommended I/O cable length is 15 m. Cables longer than this may be specified if
necessary but may suffer from voltage drop, offset, crosstalk and noise and will present materials
handling problems.
Internal cables are designed for cables where they are terminated in adjacent enclosures. If the
cable needs to leave the enclosure environment, the external cable has more protection. Note that
the ‘external’ cables are not armoured and are not suitable for truly external use and must still be
treated with care. These cables will need protection when drawn through a cable route, and should
also not be pulled by the connector(s). They should enter cabinets through transit/compression
blocks and cannot be glanded.
The SmartSlot cables described in this document allow hot-swap modules to be sited in separated
slots as required, linked with a SmartSlot jumper cable. For Companion Slot cables, allowing hotswap
modules to be sited in adjacent slots using a double width chassis socket, refer to Trusted I/O
Companion Slot Cables, publication ICSTT-RM311 (PD-TC200).
